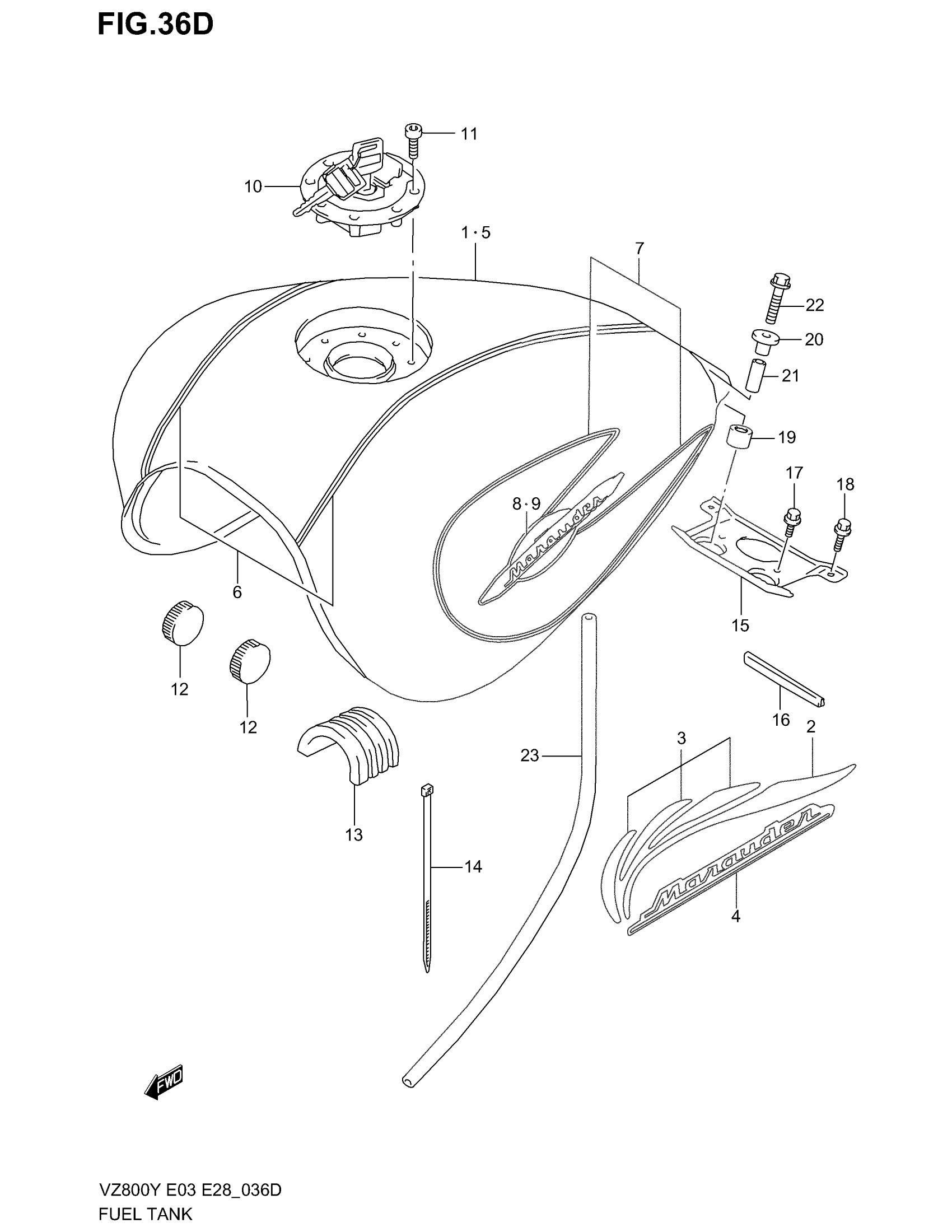

Suzuki VZ800 (2003) FUEL TANK (MODEL Y F.NO.103783%) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK)

49200-48ED0-33J

Unavailable

1

TANK ASSY, FUEL (BLACK) | E33; Includes Item(s) 2 - 4

49200-48EE0-33J

Unavailable

2

TAPE SET, FUEL TANK (SILVER) This part replaces 68110-48E50-0MT.

68110-48E51-0MT

Unavailable

3

EMBLEM SET This part replaces 68120-48E00.

68120-48810

Unavailable

4

EMBLEM This part replaces 68121-48E30-J3J.

68121-48E31-J3J

$39.27

5

TANK ASSY, FUEL

49200-48EG0-BP8

Unavailable

5

TANK ASSY, FUEL | E28

49200-48EG0-M9U

Unavailable

5

TANK ASSH, FUEL | E33; Includes Item(s) 6 - 9

49200-48EH0-BP8

Unavailable

6

TAPE SET, UPPER

68110-48E60-BU3

Unavailable

6

TAPE SET, UPPER | E28

68110-48E60-BU2

Unavailable

7

TAPE SET, SIDE

68110-48E70-BT9

Unavailable

7

TAPE SET, SIDE | E28

68110-48E70-BT8

Unavailable

8

EMBLEM, FUEL TANK RH

68111-48E20

$62.32

9

EMBLEM, FUEL TANK LH

68121-48E20

$62.32

10

CAP SET,FUEL TA This part replaces 44200-33850.

44200-33851

$238.98

10

CAP SET, FUEL TANK | E33

44200-33860

Unavailable

11

BOLT (L:20)

09106-05017

$2.83

12

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

13

CUSHION, FUEL TANK UPPER

44541-13E00

$16.65

14

CLAMP (L:248)

09407-25402

$4.64

15

BRACKET, FUEL TANK REAR

44550-48E01

$20.72

16

PROTECTOR This part replaces 47512-47D00.

47512-47D01

$4.52

17

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

18

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

19

CUSHION, FUEL TANK REAR LOWER

44542-48E00

$6.35

20

CUSHION, UPPER

09320-10022

$2.71

21

SPACER (6.5X10.5X22.5)

09180-06067

$2.59

22

BOLT This part replaces 01550-06353.

01550-0635A

$2.32

23

HOSE,FUEL TANK This part replaces 44423-48E01.

44423-48E02

$19.62
