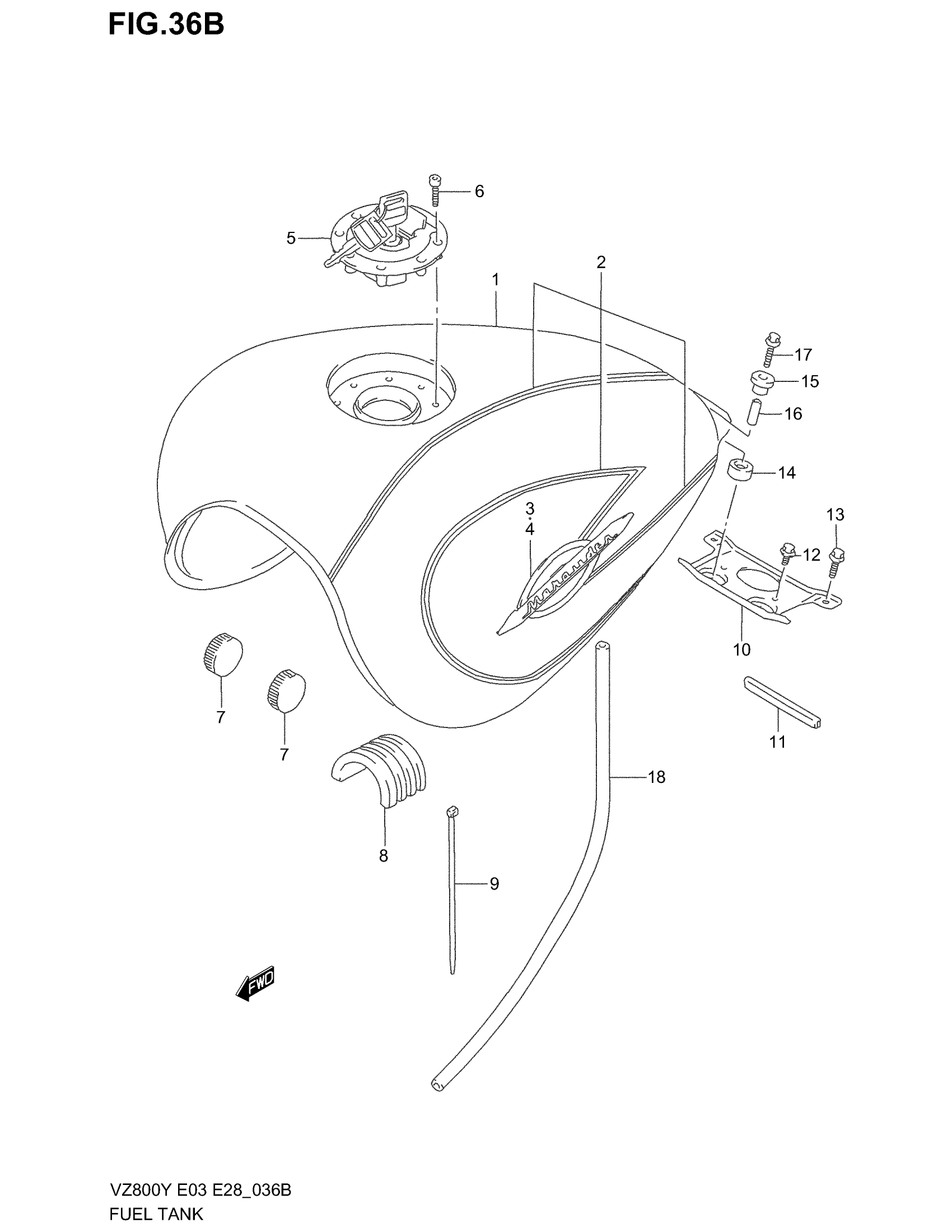

Suzuki VZ800 (2003) FUEL TANK (MODEL X) Diagram

#

Description
Price

1

TANK ASSY, FUEL

44100-48E80-E9N

Unavailable

1

TANK ASSY, FUEL

44100-48E80-G7U

Unavailable

1

TANK ASSY, FUEL | E33

44100-48E90-E9N

Unavailable

1

TANK ASSY, FUEL | E33; Includes Item(s) 2 - 4

44100-48E90-G7U

Unavailable

2

NO DESCRIPTION AVAILABLE | FOR E9N This part replaces 68110-48E20-H0G.

68110-48E21-H0G

Unavailable

2

NO DESCRIPTION AVAILABLE | FOR G7U This part replaces 68110-48E20-M1Z.

68110-48E21-M1Z

Unavailable

3

EMBLEM, FUEL TANK RH

68111-48E20

$62.32

4

EMBLEM, FUEL TANK LH

68121-48E20

$62.32

5

CAP SET,FUEL TA This part replaces 44200-33850.

44200-33851

$238.98

5

CAP SET, FUEL TANK | E33

44200-33860

Unavailable

6

BOLT (L:20)

09106-05017

$2.83

7

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

8

CUSHION, FUEL TANK UPPER

44541-13E00

$16.65

9

CLAMP (L:248)

09407-25402

$4.64

10

BRACKET, FUEL TANK REAR

44550-48E01

$20.72

11

PROTECTOR This part replaces 47512-47D00.

47512-47D01

$4.52

12

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

13

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

14

CUSHION, FUEL TANK REAR LOWER

44542-48E00

$6.35

15

CUSHION, UPPER

09320-10022

$2.71

16

SPACER (6.5X10.5X22.5)

09180-06067

$2.59

17

BOLT This part replaces 01550-06353.

01550-0635A

$2.32

18

HOSE,FUEL TANK This part replaces 44423-48E00.

44423-48E02

$19.62
