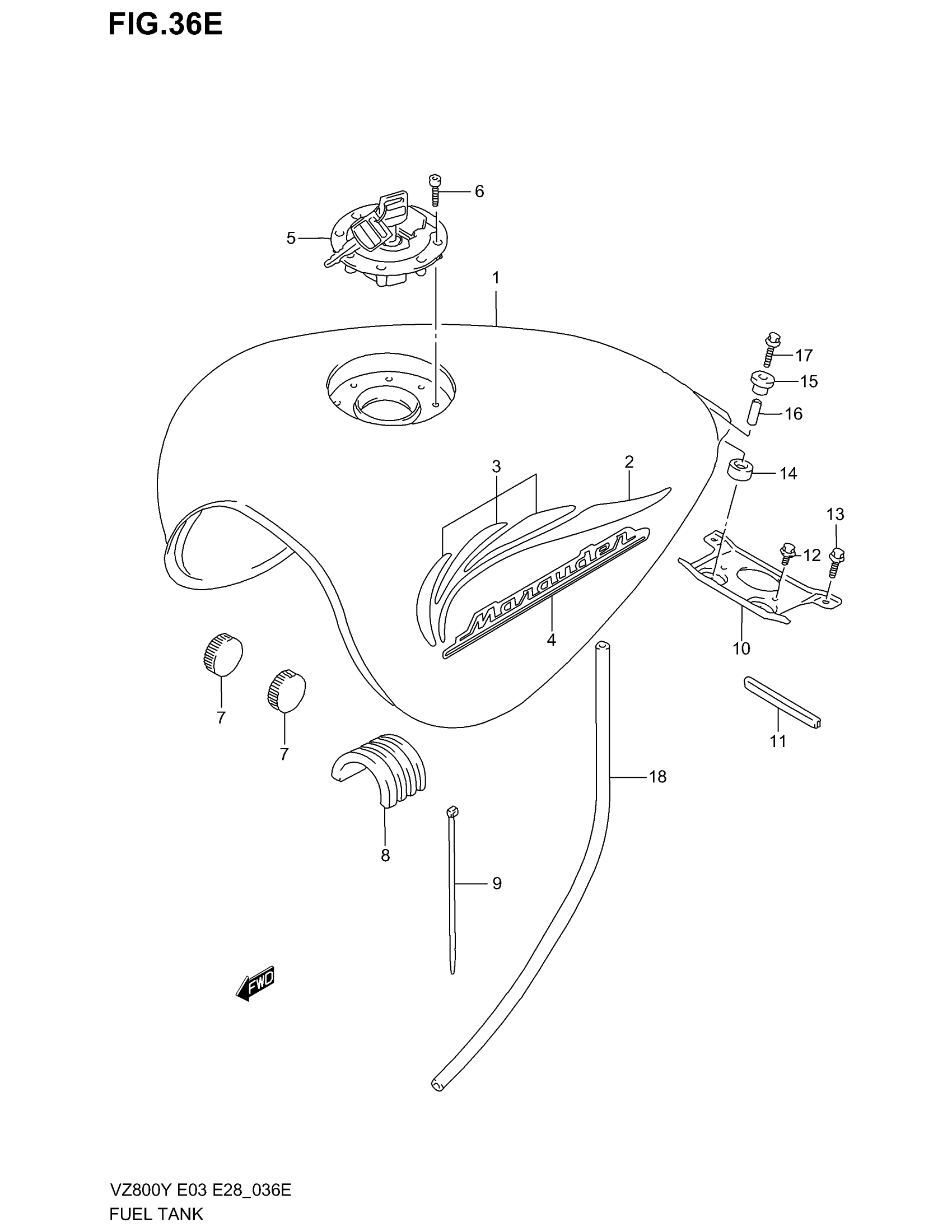

Suzuki VZ800 (2003) FUEL TANK (MODEL K1) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK) | E28

49200-48ED0-33J

Unavailable

1

TANK ASSY, FUEL (BLUE)

49200-48ED0-YC2

Unavailable

1

TANK ASSY, FUEL (MAROON) | E3

49200-48ED0-YE2

Unavailable

1

TANK ASSY, FUEL (BLUE) | E33

49200-48EE0-YC2

Unavailable

1

TANK ASSY, FUEL (MAROON) | E33; Includes Item(s) 2 - 4

49200-48EE0-YE2

Unavailable

2

TAPE SET, FUEL TANK (SILVER)

68110-48E51-0MT

Unavailable

3

EMBLEM SET

68120-48810

Unavailable

4

EMBLEM | FOR 33J This part replaces 68121-48E30-J3J.

68121-48E31-J3J

$39.27

4

NO DESCRIPTION AVAILABLE | FOR YC2 This part replaces 68121-48E30-DZ8.

68121-48E31-DZ8

Unavailable

4

EMBLEM | FOR YE2 This part replaces 68121-48E30-DZ9.

68121-48E31-DZ9

Unavailable

5

CAP SET,FUEL TA This part replaces 44200-33850.

44200-33851

$238.98

5

CAP SET, FUEL TANK | E33

44200-33860

Unavailable

6

BOLT (L:20)

09106-05017

$2.83

7

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

8

CUSHION, FUEL TANK UPPER

44541-13E00

$16.65

9

CLAMP (L:248)

09407-25402

$4.64

10

BRACKET, FUEL TANK REAR

44550-48E01

$20.72

11

PROTECTOR This part replaces 47512-47D00.

47512-47D01

$4.52

12

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

13

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

14

CUSHION, FUEL TANK REAR LOWER

44542-48E00

$6.35

15

CUSHION, UPPER

09320-10022

$2.71

16

SPACER (6.5X10.5X22.5)

09180-06067

$2.59

17

BOLT This part replaces 01550-06353.

01550-0635A

$2.32

18

HOSE,FUEL TANK This part replaces 44423-48E01.

44423-48E02

$19.62
