Description

Price

CALIPER ASSY, FRONT RH | Includes Item(s) 1 - 11 This part replaces 59100-33D21.

59100-33D81-999

$583.83

1

PISTON SET

59301-20820

$37.59

2

SEAL SET, PISTON This part replaces 59300-35820.

59300-33841

$15.45

3

PAD SET

59100-33870

$56.87

4

.SPRING, PAD RH

59115-33D00

$14.90

5

BOOT

59112-44B00

$8.91

6

.INSULATOR, AXLE

59313-36500

$5.99

7

.GUIDE, PAD

59116-33D00

$7.97

8

BLEEDER

59121-18410

$8.73

9

CAP

55156-66310

$5.17

10

.PIN, PAD

59141-44B01

$9.09

11

.CLIP, PAD PIN

69142-45000

$4.34

12

BOLT

01550-10257

$4.32

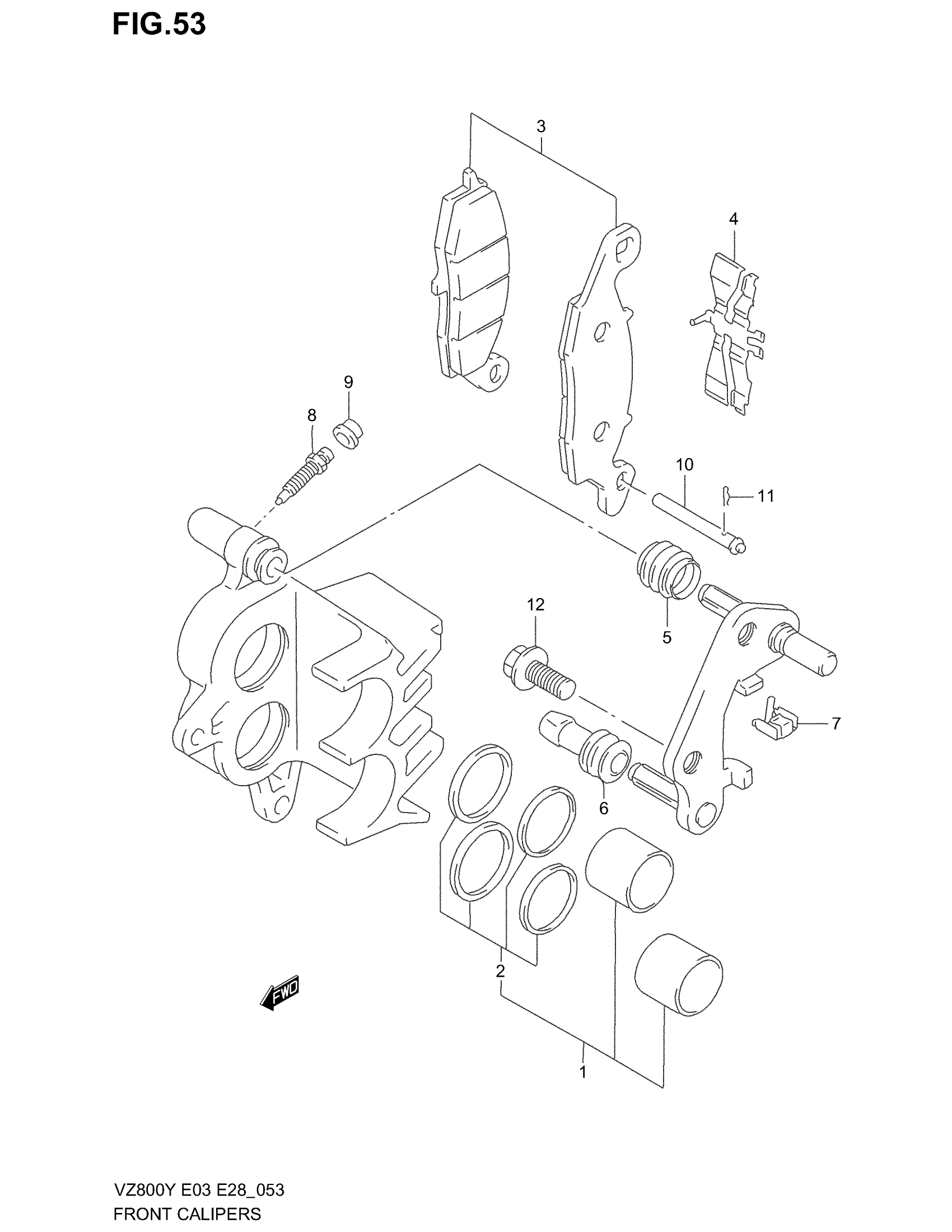

Suzuki VZ800 (2003) FRONT CALIPER Diagram
