Description

Price

1

RELAY ASSY,STARTING MOTOR | Includes Item(s) 2 - 3 This part replaces 31800-21E20.

31800-21E30

$67.32

2

.COVER This part replaces 31861-21E20.

31861-47E00

$16.15

3

FUSE (30A)

09481-30101

$2.26

4

SCREW (6X8)

09128-06013

$1.49

5

CONTROL UNIT, STARTING MOTOR

31890-48E00

$73.88

6

RECTIFIER ASSY

32800-45C01

$278.28

7

BOLT This part replaces 07130-06163.

07130-0616B

$2.39

8

IGNITOR ASSY This part replaces 32900-48E30.

32900-48E31

$997.72

9

CUSHION, IGNITER

32980-40C01

$15.83

10

COIL ASSY, IGNITION

33410-48E00

$157.58

11

SPACER (6.2X12X16)

09180-06198

$4.32

12

BOLT This part replaces 07130-05163.

07130-0516A

$2.41

13

BOLT This part replaces 07130-05353.

07130-0535B

$3.15

14

CAP, SPARK PLUG

33510-11410

$25.95

15

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.83

16

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

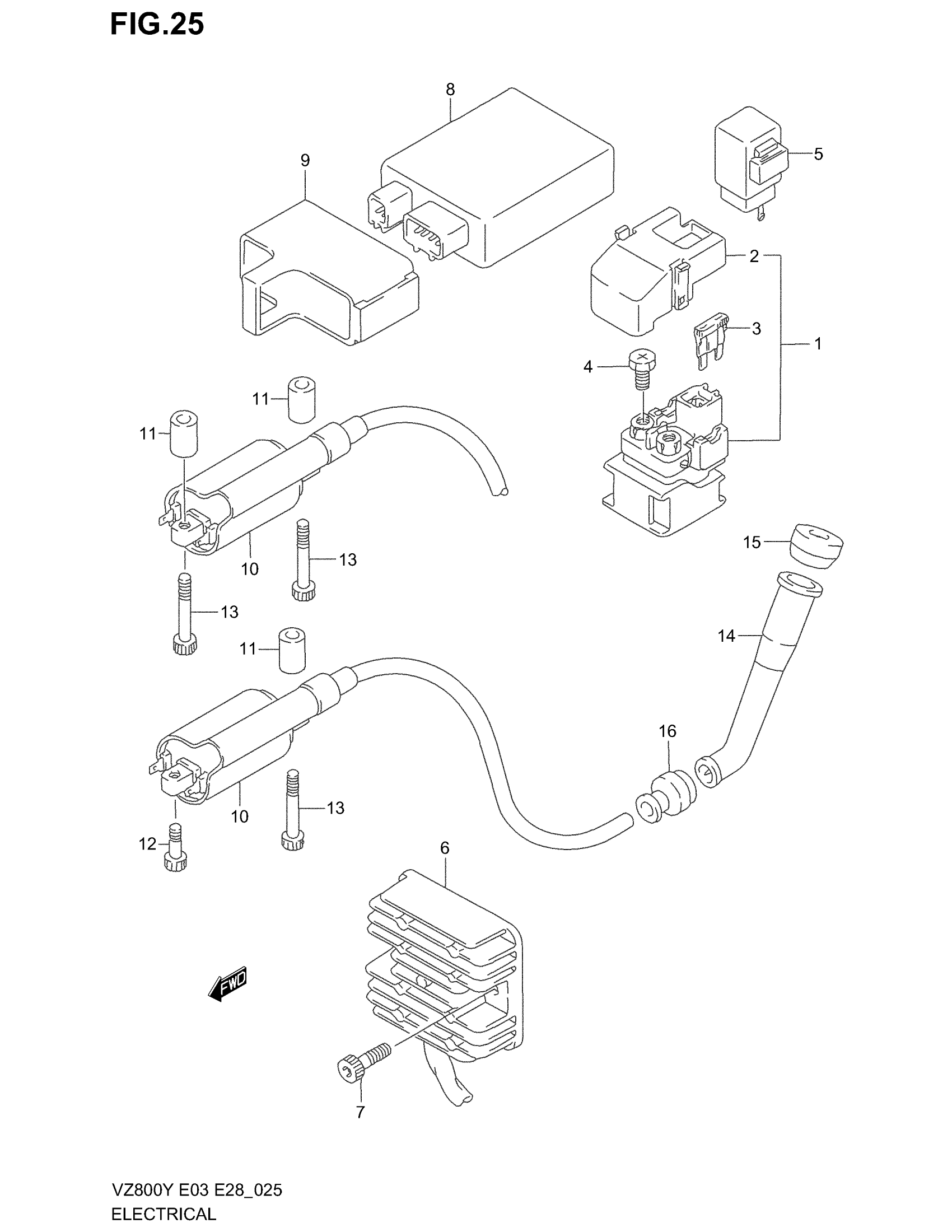

Suzuki VZ800 (2003) ELECTRICAL Diagram
