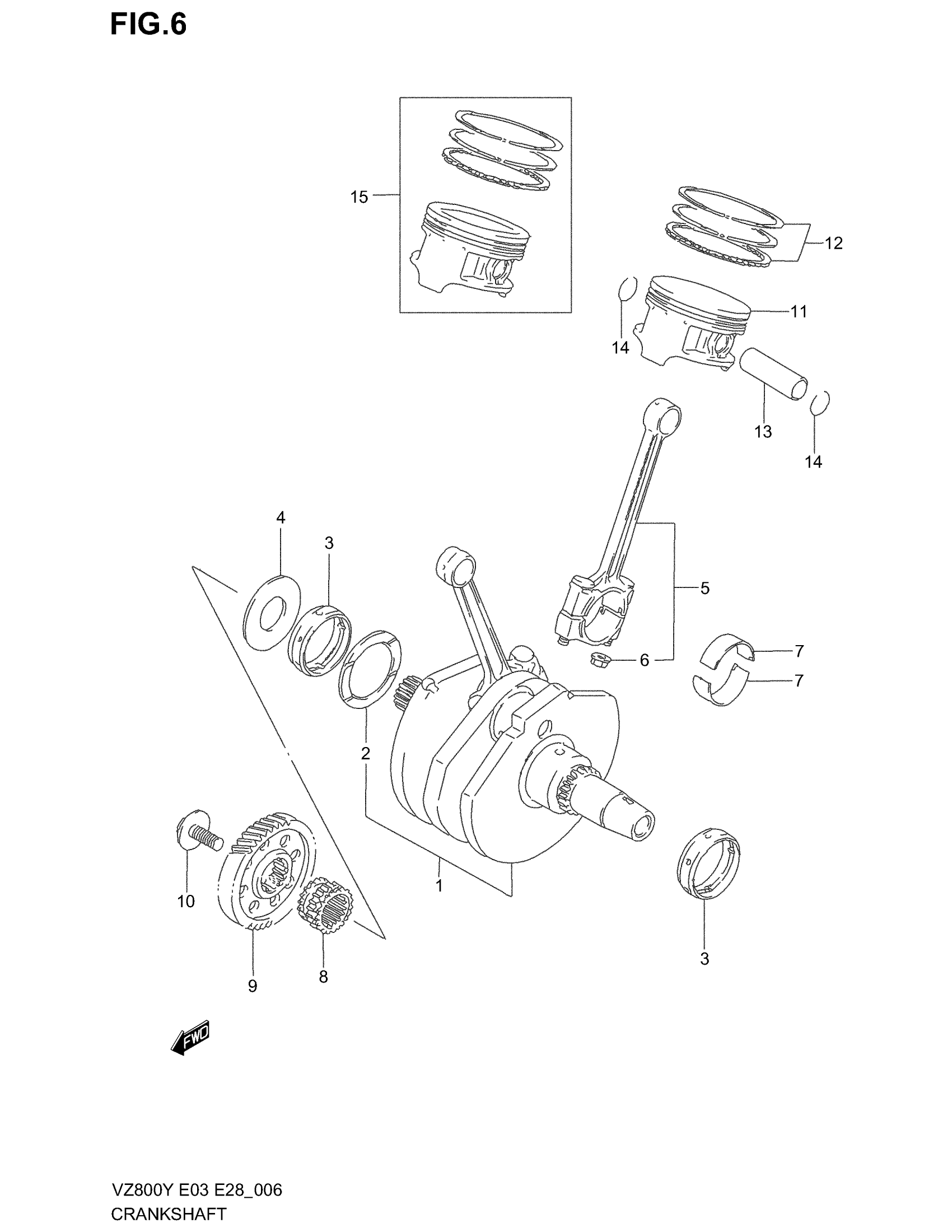

Suzuki VZ800 (2003) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT SET | Includes Item(s) 2 - 2

12000-38810

$1,672.38

2

WASHER, CRANK THRUST (T:1.94)

09160-48001

Unavailable

2

WASHER, CRANK THRUST (T:1.96)

09160-48002

Unavailable

2

WASHER, CRANK THRUST (T:1.99)

09160-48003

Unavailable

2

WASHER, CRANK THRUST (T:2.01)

09160-48004

Unavailable

2

WASHER, CRANK THRUST (T:2.04)

09160-48005

Unavailable

2

WASHER, CRANK THRUST (T:2.06)

09160-48006

$30.35

2

WASHER, CRANK THRUST (T:2.09)

09160-48007

Unavailable

2

WASHER, CRANK THRUST (T:2.11)

09160-48008

Unavailable

2

WASHER, CRANK THRUST (T:2.14)

09160-48009

Unavailable

2

WASHER, CRANK THRUST (T:2.16)

09160-48010

$30.35

3

BEARING

12229-38A00

$24.87

4

WASHER

12652-38A00

$81.72

5

ROD ASSY, CONNECTING | Includes Item(s) 6 This part replaces 12160-45C10.

12160-45C30

$185.15

6

NUT

09159-09001

$4.68

7

BEARING, CRANK PIN (GREEN)

12164-38E00-0A0

$13.77

7

BEARING, CRANK PIN (BLACK)

12164-38E00-0B0

$11.50

7

BEARING, CRANK PIN (BROWN)

12164-38E00-0C0

$11.50

7

BEARING, CRANK PIN (YELLOW)

12164-38E00-0D0

$14.02

7

BEARING, CRANK PIN (BLUE)

12164-38E00-0E0

$14.02

8

SPROCKET, CAM CHAIN DRIVE

12731-38A00

$59.07

9

GEAR, PRIMARY DRIVE (NT:38)

21111-48E50

Unavailable

10

BOLT

09103-12013

$8.83

11

PISTON

12111-45C00-0F0

$163.57

12

RING SET, PISTON

12140-45C10

$43.70

13

PIN,PISTON

12151-24A00

$22.03

14

CIRCLIP

09381-20004

$1.65

15

PISTON SET (OS:0.5) | OPT

12100-45C00-050

$195.35
