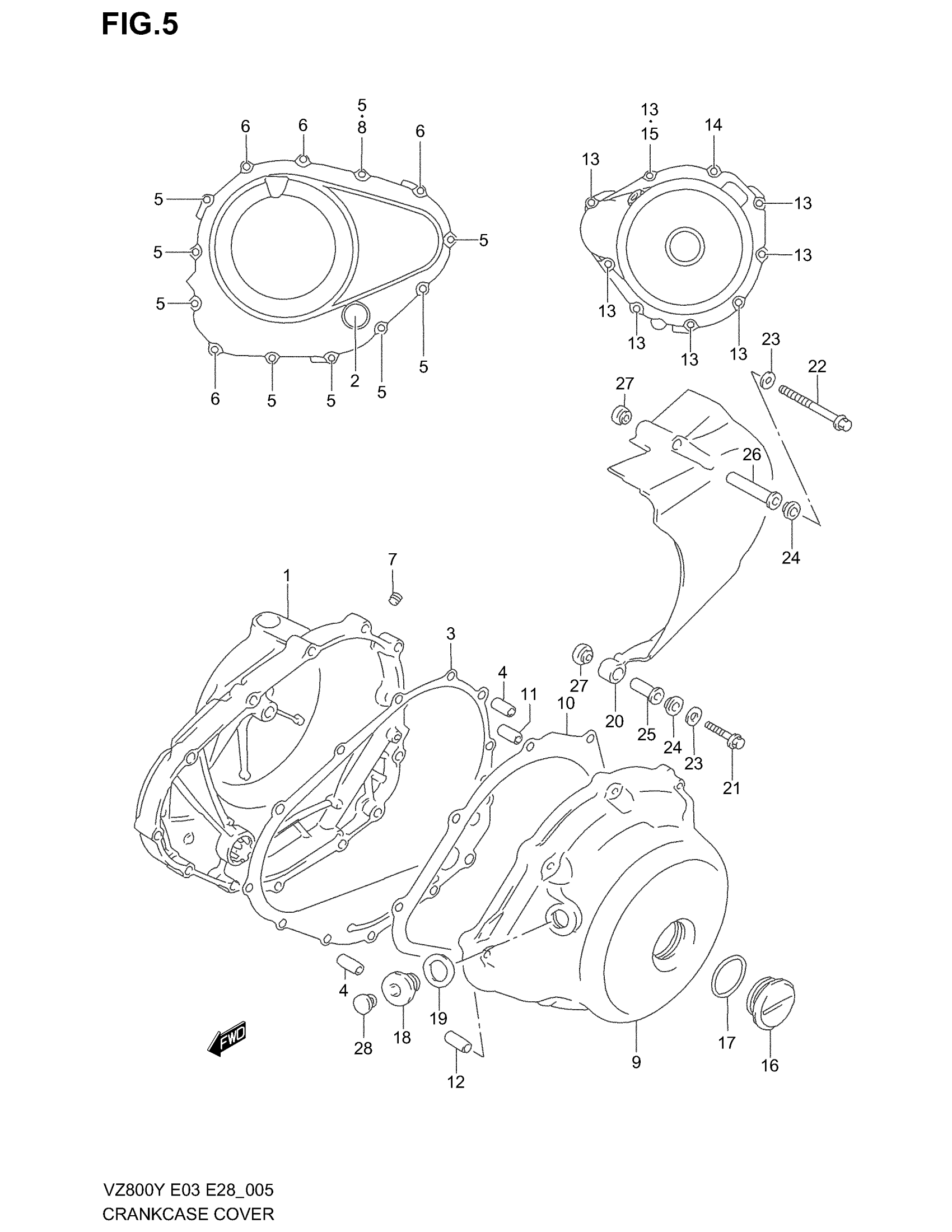

Suzuki VZ800 (2003) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | MODEL V/W/X/Y/K1/K2

11340-48E00

Unavailable

1

COVER, CLUTCH | MODEL K3; Includes Item(s) 2

11340-48E50

Unavailable

2

LENS, OIL LEVEL CHECK

11971-33210

$18.20

3

GASKET

11482-48E01

$22.57

4

PIN

04211-09149

$1.65

5

BOLT

01547-06307

$2.03

6

BOLT

01547-06357

$2.03

7

PLUG This part replaces 09246-05006.

09246-04009

$4.25

8

GASKET (5.8X11X1.2) | MODEL V/W

09168-06024

$2.20

8

GASKET (5.8X13X1.2) | MODEL X/Y/K1/K2/K3

09168-06023

$2.35

9

COVER, MAGNETO

11351-48E00

Unavailable

10

GASKET

11483-48E01

$16.22

11

PIN

09206-11017

$6.30

12

PIN

04211-09149

$1.65

13

BOLT

01547-06357

$2.03

14

BOLT

01547-06407

$2.32

15

GASKET (5.8X11X1.2) | MODEL V/W

09168-06024

$2.20

15

GASKET (5.8X13X1.2) | MODEL X/Y/K1/K2/K3

09168-06023

$2.35

16

PLUG

09259-36008

$8.46

17

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

18

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.98

19

GASKET

09168-14002

$2.26

20

COVER, ENGINE SPROCKET

11361-48E01

Unavailable

21

BOLT

01547-06307

$2.03

22

BOLT

01547-06607

$3.18

23

WASHER | MODEL V This part replaces 09160-06097.

09160-06125

$1.91

23

WASHER | MODEL W/X/Y/K1/K2/K3

09160-06125

$1.91

24

CUSHION

09161-09006

$2.36

25

SPACER

09180-06320

$4.71

26

SPACER

09180-06321

$6.47

27

WASHER

09161-09005

$2.36

28

CAP

09250-08014

$2.85
