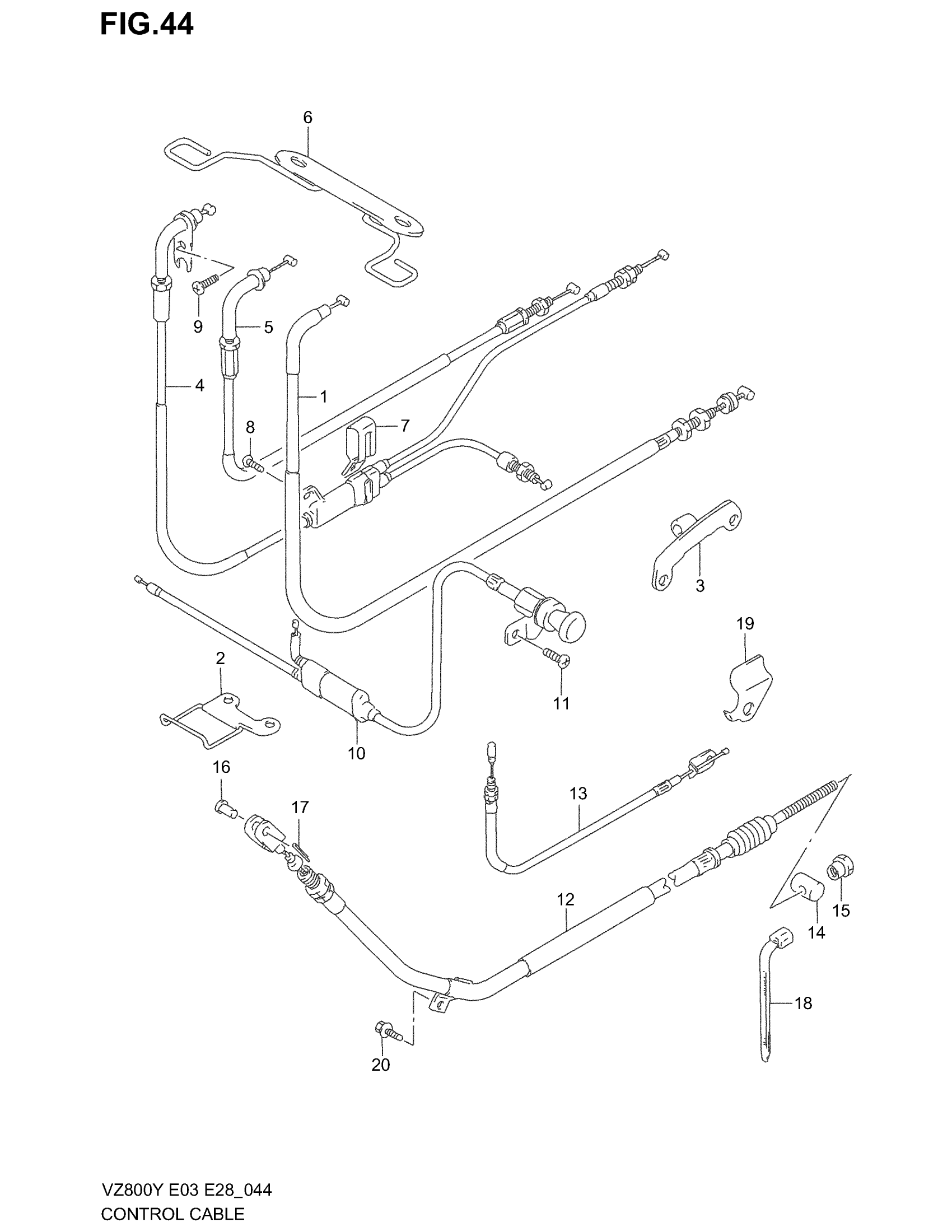

Suzuki VZ800 (2003) CONTROL CABLE Diagram

#

Description
Price

1

CABLE ASSY, CLUTCH

58200-48E00

$35.47

2

GUIDE, CLUTCH CABLE

58620-48E10

Unavailable

3

STOPPER, CLUTCH CABLE

58634-48E00

Unavailable

4

CABLE ASSY,THRO This part replaces 58300-48E20.

58300-48E2V

$53.01

5

CABLE ASSY,THRO This part replaces 58300-48E30.

58300-48E3V

$36.19

6

GUIDE, CABLE

58620-48E00

Unavailable

7

CLAP, THROTTLE CABLE CONNECTOR

58623-48E00

Unavailable

8

SCREW

02142-05087

$1.49

9

SCREW This part replaces 02112-75123.

02112-7512A

$2.42

10

CABLE ASSY, STARTER

58400-48E00

$55.45

11

SCREW

09139-06051

$2.48

12

CABLE, REAR BRAKE

58510-48E00

$120.57

13

CABLE, STOP LAMP SWITCH

58830-48E00

$32.72

14

PIN

09209-13018

$3.42

15

.NUT This part replaces 09150-06014.

09150-06010

$3.10

16

PIN

09200-05001

$1.65

17

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

18

CLAMP

09407-14403

$2.26

19

CLAMP, REAR BRAKE CABLE

58720-48E00

Unavailable

20

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97
