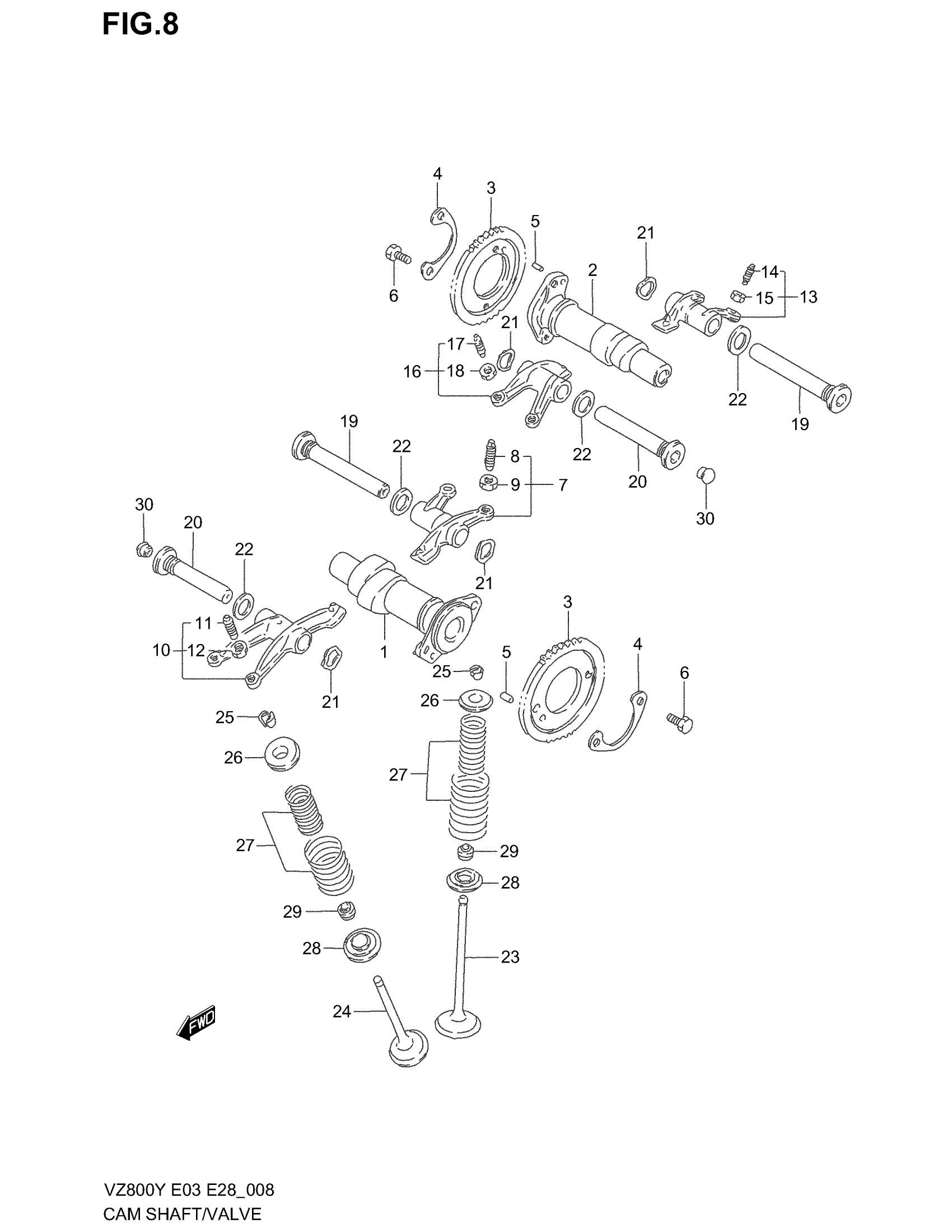

Suzuki VZ800 (2003) CAM SHAFT/VALVE Diagram

#

Description
Price

1

CAM SHAFT, FRONT

12711-38A03

Unavailable

2

CAM SHAFT, REAR

12713-38A03

Unavailable

3

SPROCKET, CAM SHAFT (NT:42)

12741-37400

Unavailable

4

WASHER This part replaces 12747-44000.

12747-44001

$2.50

5

PIN

04221-05109

$1.49

6

BOLT (6X12.5)

09111-06027

$1.72

7

ARM, VALVE ROCKER INTAKE | Includes Item(s) 8 - 9 This part replaces 12840-38A10.

12840-38A11

$87.45

8

SCREW

12842-38A00

$6.17

9

.NUT, ADJUSTING SCREW

12843-32400

$2.79

10

ARM, EXHAUST VALVE ROCKER FR | Includes Item(s) 11 - 12

12850-38A10

$94.45

11

SCREW

12842-38A00

$6.17

12

.NUT, ADJUSTING SCREW

12843-32400

$2.79

13

ARM, INTAKE VALVE ROCKER RR | Includes Item(s) 14 - 15

12845-38A10

Unavailable

14

SCREW

12842-38A00

$6.17

15

.NUT, ADJUSTING SCREW

12843-32400

$2.79

16

ARM, EXHAUST VALVE ROCKER RR | Includes Item(s) 17 - 18

12855-38A10

Unavailable

17

SCREW

12842-38A00

$6.17

18

.NUT, ADJUSTING SCREW

12843-32400

$2.79

19

SHAFT, IN VALVE ROCKER ARM

12861-38A01

Unavailable

20

SHAFT, EX VALVE ROCKER ARM

12871-38A01

Unavailable

21

WASHER

09164-12018

$1.49

22

GASKET

09168-14002

$2.26

23

VALVE, INTAKE | MODEL V This part replaces 12911-38A02.

12911-38A10

$45.38

23

VALVE, INTAKE | MODEL W/X/Y/K1/K2/K3

12911-38A10

$45.38

24

VALVE, EXHAUST | MODEL V This part replaces 12912-38A02.

12912-38A10

$72.75

24

VALVE, EXHAUST | MODEL W/X/Y/K1/K2/K3

12912-38A10

$72.75

25

COTTER, VALVE

12932-24400

$1.94

26

RETAINER, SPRING This part replaces 12931-33200.

12931-33201

$8.28

27

SPRING SET

12920-38A00

$14.34

28

SEAT, VALVE SPRING

12933-33201

$6.05

29

OIL SEAL (5.5X11X8.2)

09289-05015

$6.70

30

CAP | MODEL V This part replaces 09250-06008.

09250-06016

$1.96
