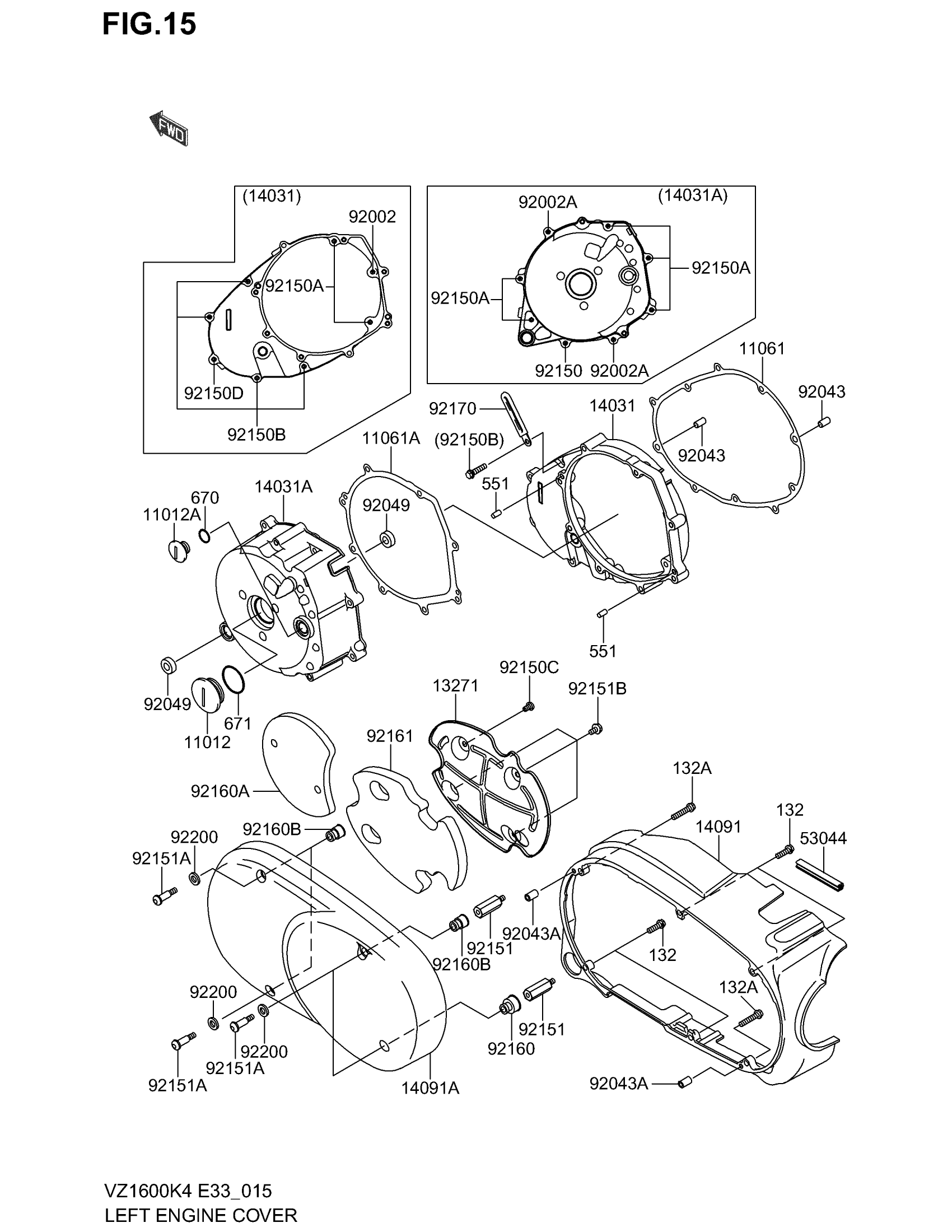

Suzuki VZ1600 E33 (2004) LEFT ENGINE COVER Diagram

#

Description

Price

11012

CAP

K1101-21362

Unavailable

11012A

CAP,TOP MARK

K1101-21363

Unavailable

11061

GASKET,GENERATOR COVER,IN

K1106-11079

Unavailable

11061A

GASKET,GENERATOR COVER,OUT

K1106-11080

Unavailable

13271

PLATE

K1327-11496

Unavailable

14031

COVER-GENERATOR,INNER

K1403-11384

Unavailable

14031A

COVER-GENERATOR,OUTER

K1403-11392

Unavailable

14091

COVER,LH,INNER

K1409-11206

Unavailable

14091A

COVER,LH,OUTER

K1409-11297

Unavailable

53044

TRIM

K5304-41312

Unavailable

92002

BOLT,6X40

K9200-21566

Unavailable

92002A

BOLT,6X60

K9200-21567

Unavailable

92043

PIN,6.2X8X14

K9204-31263

$1.78

92043A

PIN,6X16

K9204-31690

Unavailable

92049

SEAL-OIL,VB13193

K9204-91398

Unavailable

92150

BOLT,6X16 This part replaces K9215-01010.

K9200-21570

Unavailable

92150A

BOLT,6X30

K9215-01021

Unavailable

92150B

BOLT,6X25

K9215-01779

Unavailable

92150C

BOLT,6X10

K9215-01864

Unavailable

92150D

BOLT,6X35

K9215-01967

Unavailable

92151

BOLT

K9215-11062

Unavailable

92151A

BOLT,L=32

K9215-11796

Unavailable

92151B

BOLT,6X10

K9215-11884

Unavailable

92160

DAMPER

K9216-01718

Unavailable

92160A

DAMPER

K9216-01719

Unavailable

92160B

DAMPER

K9216-01730

Unavailable

92161

DAMPER

K9216-11179

Unavailable

92170

CLAMP

K9217-01514

$3.75

92200

WASHER

K9220-01296

Unavailable

132

BOLT-FLANGED-SMALL

KK132-V0620

Unavailable

132A

BOLT-FLANGED-SMALL

KK132-V0630

Unavailable

551

PIN-DOWEL,6X12

KK551-A0612

Unavailable

670

O RING,18MM

KK670-B2018

$3.75

671

O RING,40MM

KK671-B2540

Unavailable
