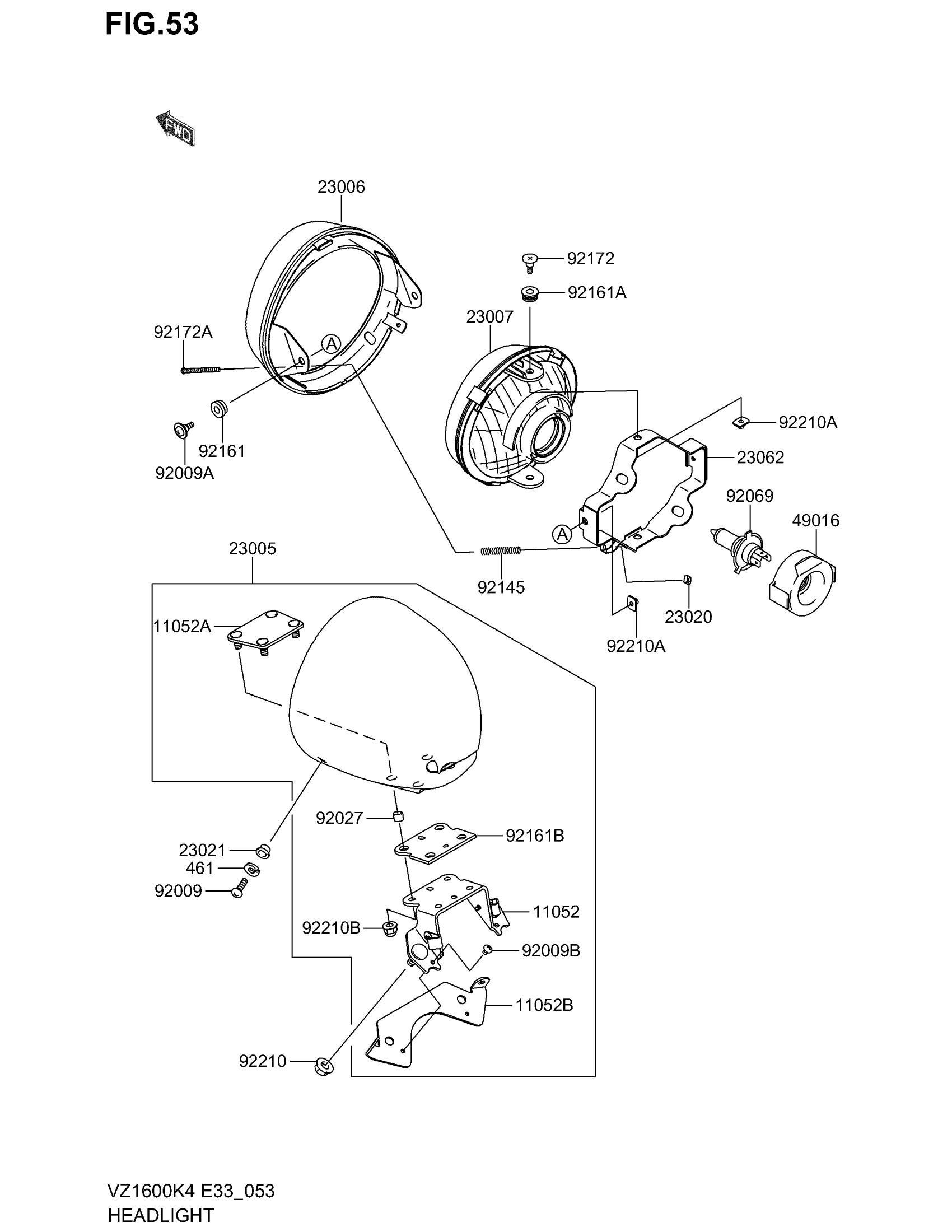

Suzuki VZ1600 E33 (2004) HEADLIGHT Diagram

#

Description

Price

11052

BRACKET,HEAD LAMP BODY

K1105-21265

Unavailable

11052A

BRACKET,HEAD LAMP BODY

K1105-21266

Unavailable

11052B

BRACKET,HEAD LAMP BODY

K1105-21371

Unavailable

23005

BODY-COMP-HEAD LAMP

K2300-50001

Unavailable

23006

RIM-LAMP

K2300-60002

$88.97

23007

LENS-COMP,HEAD LAMP

K2300-70021

Unavailable

23020

NUT,4MM,FOCUS ADJUST

KK230-20018

Unavailable

23021

WASHER

KK230-21010

Unavailable

23062

BRACKET-COMP

K2306-20016

Unavailable

49016

COVER-SEAL,HEAD LAMP SOCKET

K4901-61210

Unavailable

92009

SCREW,5MM

K9200-91947

Unavailable

92009A

SCREW,5MM

K9200-91955

Unavailable

92009B

SCREW,4X5

K9200-91988

Unavailable

92027

COLLAR,6.8X10X6

KK920-27103

Unavailable

92069

BULB,12V 60/55W This part replaces K9206-91002.

K9206-90050

$81.42

92145

SPRING,FOCUS ADJUST

K9214-50178

Unavailable

92161

DAMPER

K9216-11187

Unavailable

92161A

DAMPER

K9216-11188

Unavailable

92161B

DAMPER,HEAD LAMP BODY

K9216-11212

Unavailable

92172

SCREW,5MM

K9217-20138

Unavailable

92172A

SCREW,4X40

K9217-20139

Unavailable

92210

NUT,FLANGED,8MM

K9221-00004

Unavailable

92210A

NUT,5MM

K9221-00126

Unavailable

92210B

NUT,CAP,6MM

K9221-01252

Unavailable

461

WASHER-SPRING,5MM

KK461-S0500

Unavailable
