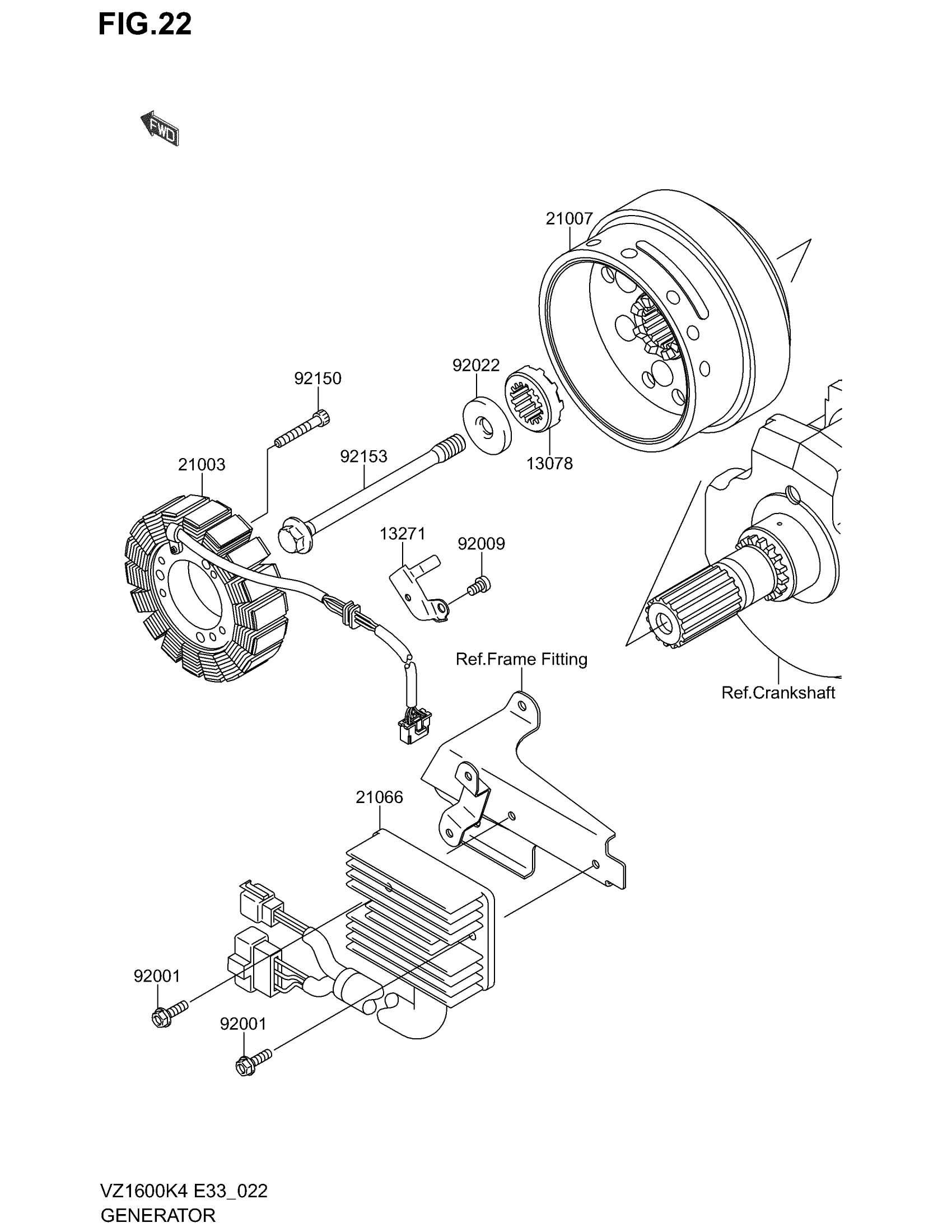

Suzuki VZ1600 E33 (2004) GENERATOR Diagram

#

Description

Price

13078

RATCHET

K1307-81056

Unavailable

13271

PLATE

K1327-11328

Unavailable

21003

STATOR,OUTER

K2100-30008

Unavailable

21007

ROTOR

K2100-70014

Unavailable

21066

REGULATOR-VOLTAGE

K2106-61126

Unavailable

92001

BOLT,6X20

K9200-11947

Unavailable

92009

SCREW

K9200-91768

Unavailable

92022

WASHER,GENERATOR

K9202-21904

Unavailable

92150

BOLT,SOCKET,6X35

K9215-01484

Unavailable

92153

BOLT,12X154

K9215-31105

Unavailable
