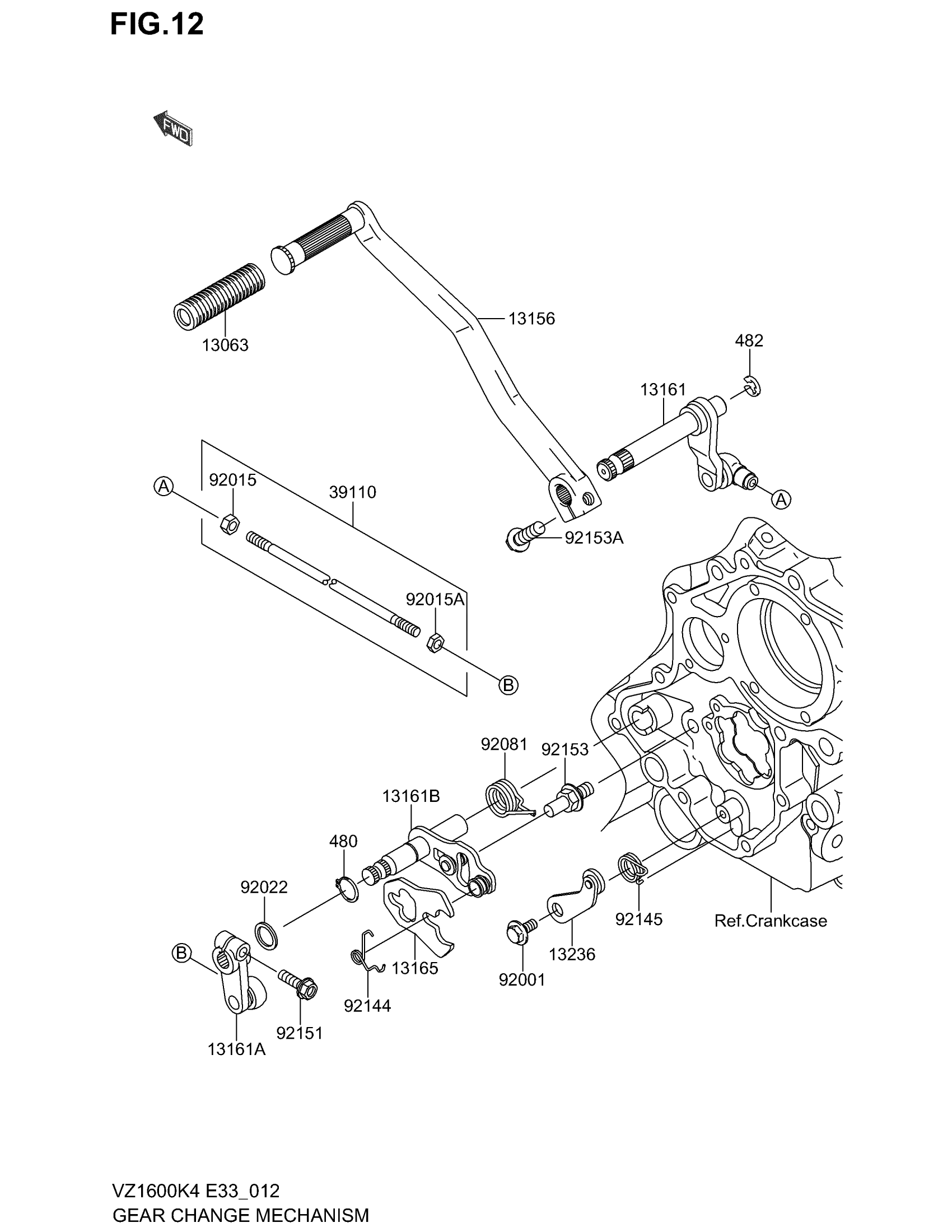

Suzuki VZ1600 E33 (2004) GEAR CHANGE MECHANISM Diagram

#

Description

Price

13063

DAMPER,PEDAL

KK130-63002

$3.87

13156

LEVER-CHANGE

K1315-60013

Unavailable

13161

LEVER-COMP-CHANGE SHAFT

K1316-10006

Unavailable

13161A

LEVER-COMP-CHANGE SHAFT

K1316-11253

Unavailable

13161B

LEVER-COMP-CHANGE SHAFT

K1316-11254

Unavailable

13165

PAWL

K1316-51120

Unavailable

13236

LEVER-COMP,POSITION

K1323-61126

Unavailable

39110

ROD-ASSY-TIE

K3911-01119

Unavailable

92001

BOLT,GEAR CHANGE LEVER

K9200-11715

Unavailable

92015

NUT,6MM

K9201-51443

Unavailable

92015A

NUT,LEFT HANDED,6MM

K9201-51444

Unavailable

92022

WASHER,13.2X20X0.5

K9202-21224

Unavailable

92081

SPRING,CHANGE PEDAL RETURN

K9208-11869

Unavailable

92144

SPRING

K9214-41029

Unavailable

92145

SPRING,RETURN

K9214-50008

Unavailable

92151

BOLT,6X20

K9215-11226

Unavailable

92153

BOLT

K9215-31076

Unavailable

92153A

BOLT,8X25

K9215-31268

Unavailable

480

CIRCLIP-TYPE-C,13MM

KK480-J1300

Unavailable

482

CIRCLIP-TYPE-E,10MM

KK482-L0100

Unavailable
