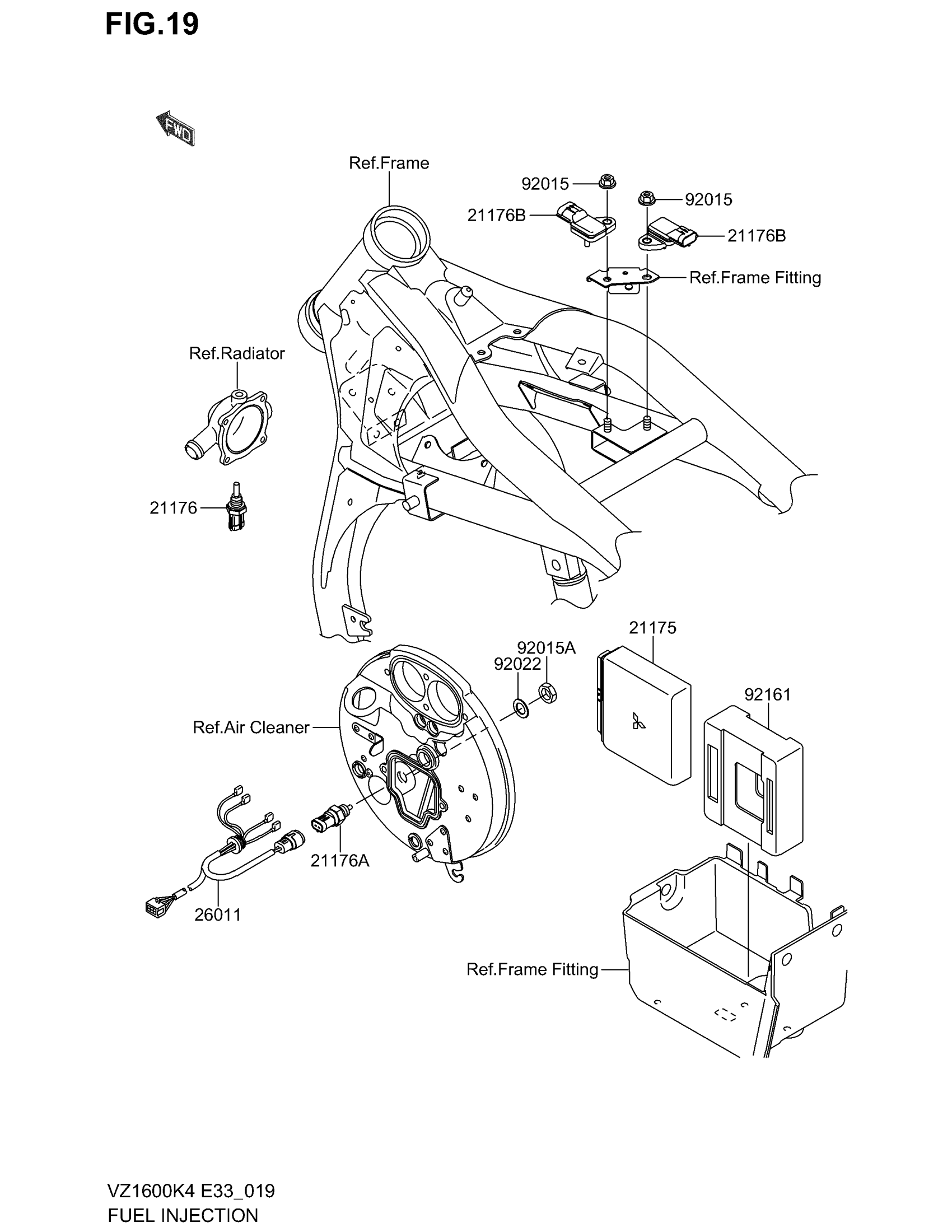

Suzuki VZ1600 E33 (2004) FUEL INJECTION Diagram

#

Description

Price

21175

CONTROL UNIT-ELECTRONIC

K2117-50040

Unavailable

21176

SENSOR,WATER TEMPERATURE

K2117-61085

Unavailable

21176A

SENSOR,AIR TEMPERATURE

K2117-61086

Unavailable

21176B

SENSOR

K2117-61118

Unavailable

26011

WIRE-LEAD

K2601-11776

Unavailable

92015

NUT,6MM

K9201-51386

Unavailable

92015A

NUT,12MM

K9201-51395

Unavailable

92022

WASHER,12.3X20X0.5

KK920-22269

Unavailable

92161

DAMPER

K9216-11210

Unavailable
