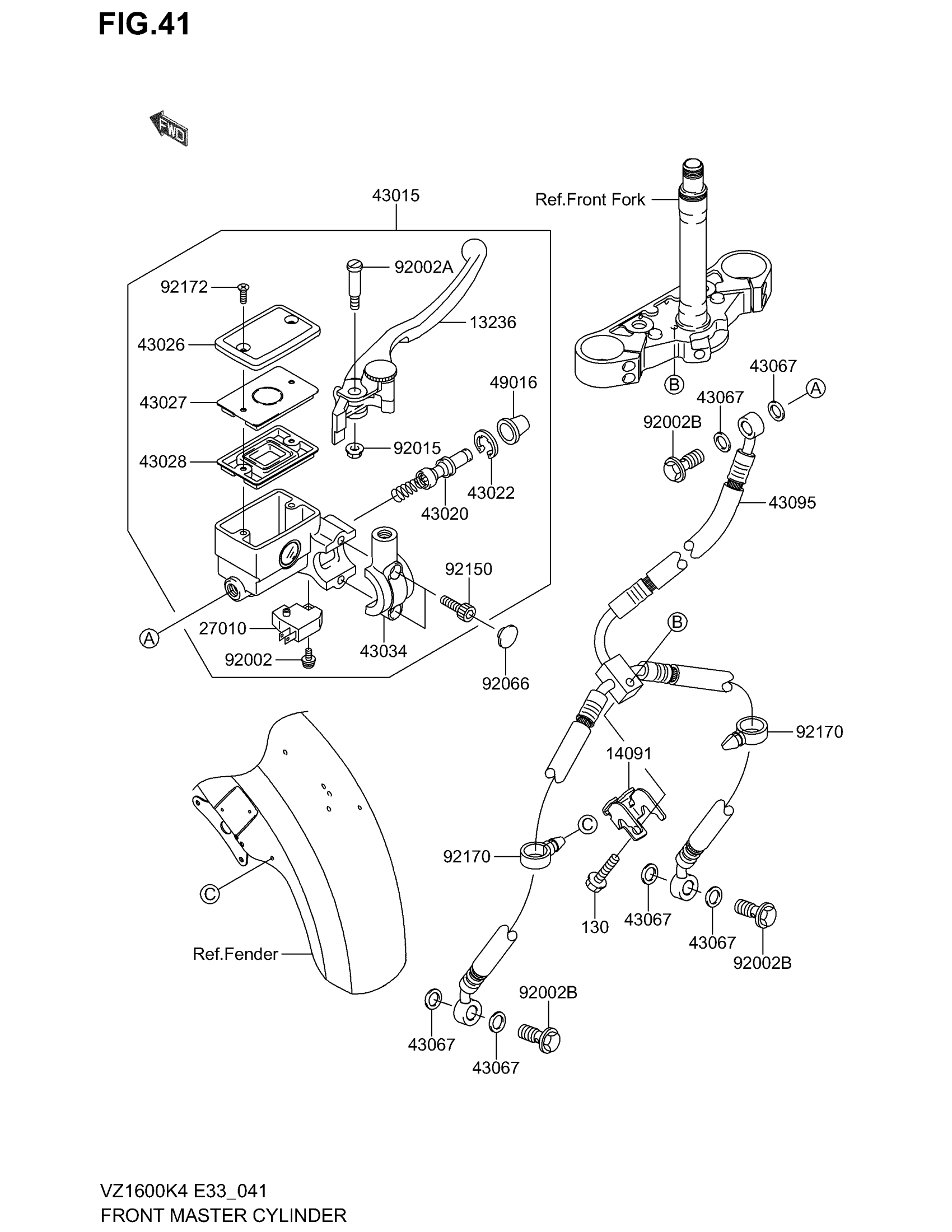

Suzuki VZ1600 E33 (2004) FRONT MASTER CYLINDER Diagram

#

Description
Price

13236

LEVER-COMP,FRONT BRAKE

K1323-61315

Unavailable

14091

COVER,3 WAY JOINT

K1409-11450

Unavailable

27010

SWITCH,BRAKE This part replaces K2701-01170.

K2701-00025

Unavailable

43015

CYLINDER-ASSY-MASTER,FR

K4301-50023

Unavailable

43020

PISTON-COMP-BRAKE,FR

K4302-01054

Unavailable

43022

STOPPER-BRAKE,PISTON

K4302-21010

Unavailable

43026

CAP-BRAKE

K4302-60002

Unavailable

43027

PLATE-DIAPHRAGM

K4302-71059

Unavailable

43028

DIAPHRAGM,MASTER CYLINDER

K4302-81058

Unavailable

43034

HOLDER-BRAKE

K4303-41172

$34.08

43067

WASHER,SEAL,10. This part replaces KK430-67001.

K4909-10001

$1.68

43095

HOSE-BRAKE,FR

K4309-51324

Unavailable

49016

COVER-SEAL,MASTER CYLINDER

K4901-61044

Unavailable

92002

BOLT,SCREW,4X12

K9200-21323

Unavailable

92002A

BOLT,LEVER SET

K9200-21561

Unavailable

92002B

BOLT,OIL,L=23 This part replaces K9200-21888.

K9215-30627

$4.82

92015

NUT,FLANGED,6MM

K9201-51528

Unavailable

92066

PLUG

K9206-61301

Unavailable

92150

BOLT,SOCKET,6MM

K9215-01025

Unavailable

92170

CLAMP

K9217-01067

Unavailable

92172

SCREW

K9217-20083

Unavailable

130

BOLT-FLANGED,6X30,BLACK

KK130-J0630

Unavailable
