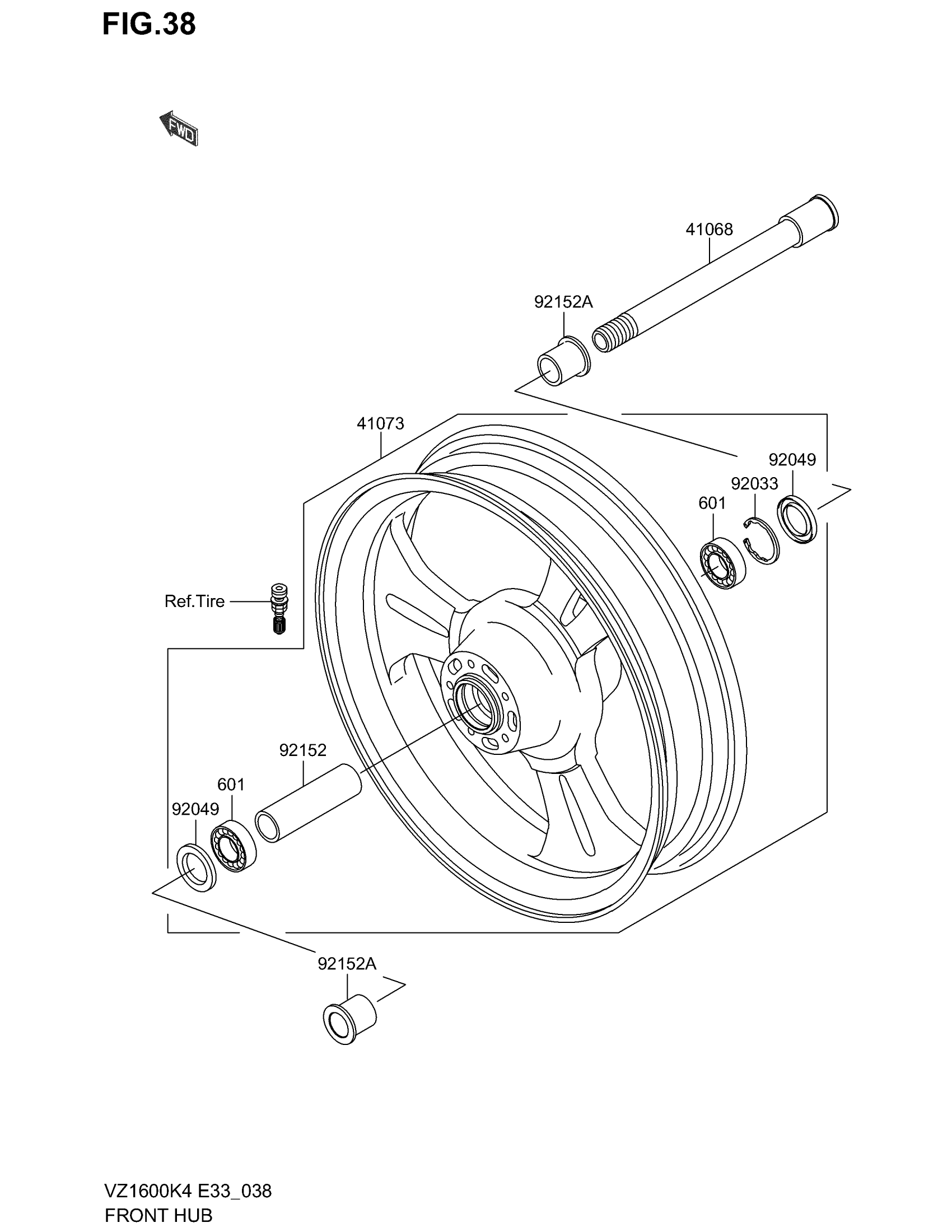

Suzuki VZ1600 E33 (2004) FRONT HUB Diagram

#

Description

Price

41068

AXLE,FR

K4106-81458

Unavailable

41073

WHEEL-ASSY,FR,P.SILVER

K4107-30006-496

Unavailable

92033

RING-SNAP,47MM

K9203-31042

Unavailable

92049

SEAL-OIL,BJN-C2 32X47X5 This part replaces K9204-91377.

K9204-90050

$13.37

92152

COLLAR,FR HUB,L=109

K9215-21308

Unavailable

92152A

COLLAR,FR AXLE,L=34 This part replaces K9215-21309.

K9215-20178

Unavailable

601

BEARING-BALL,#6005UU

KKK60-1B600-5UU

Unavailable
