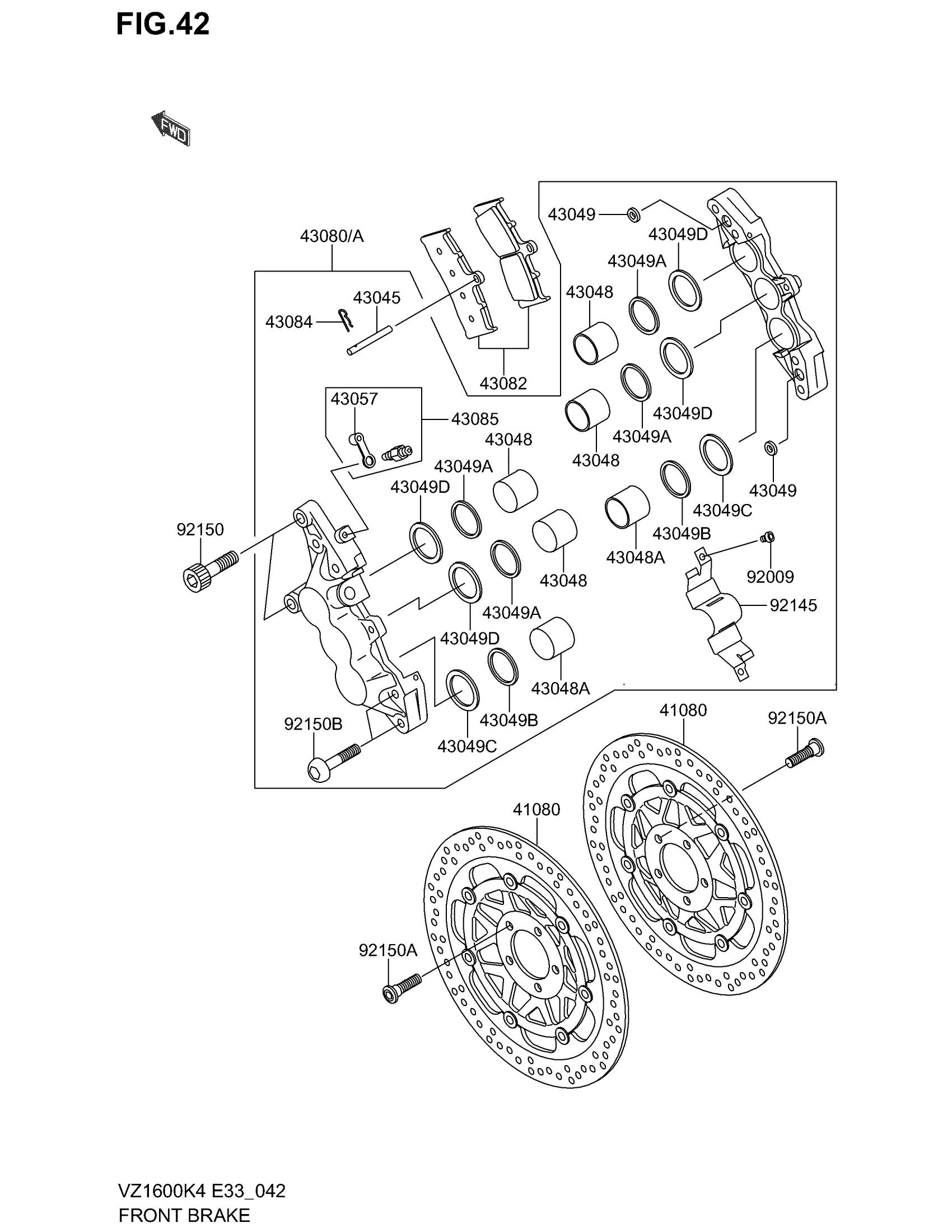

Suzuki VZ1600 E33 (2004) FRONT BRAKE Diagram

#

Description

Price

41080

DISC,FR,HOUSING GRAY+DISK GRAY

K4108-01511-675

Unavailable

43045

SHAFT-CALIPER

KK430-45007

Unavailable

43048

PISTON-CALIPER

K4304-81078

Unavailable

43048A

PISTON-CALIPER

K4304-81079

Unavailable

43049

PACKING,SEAL,6.5X11.5X2.2

K4304-91004

Unavailable

43049A

PACKING,PISTON

K4304-91055

Unavailable

43049B

PACKING,PISTON

K4304-91059

Unavailable

43049C

PACKING,PISTON SEAL

K4304-91090

Unavailable

43049D

PACKING,PISTON SEAL

K4304-91096

Unavailable

43057

CAP-BREATHER

KK430-57003

Unavailable

43080

CALIPER-SUB-ASSY,FR,LH,SILVER

KK430-80508-8GN

Unavailable

43080A

CALIPER-SUB-ASSY,FR,RH,SILVER

KK430-80508-9GN

Unavailable

43082

PAD-ASSY-BRAKE

K4308-21274

Unavailable

43084

CLAMP,PAD

KK430-84003

Unavailable

43085

BREATHER-BRAKE

KK430-85001

Unavailable

92009

BOLT,SOCKET,4X6

K9200-91758

Unavailable

92145

SPRING

K9214-51482

Unavailable

92150

BOLT,SOCKET,10X37

K9215-01261

Unavailable

92150A

BOLT,SOCKET,8X30

K9215-01771

Unavailable

92150B

BOLT,SOCKET,8X40

K9215-01973

Unavailable
