FRONT BEVEL GEAR

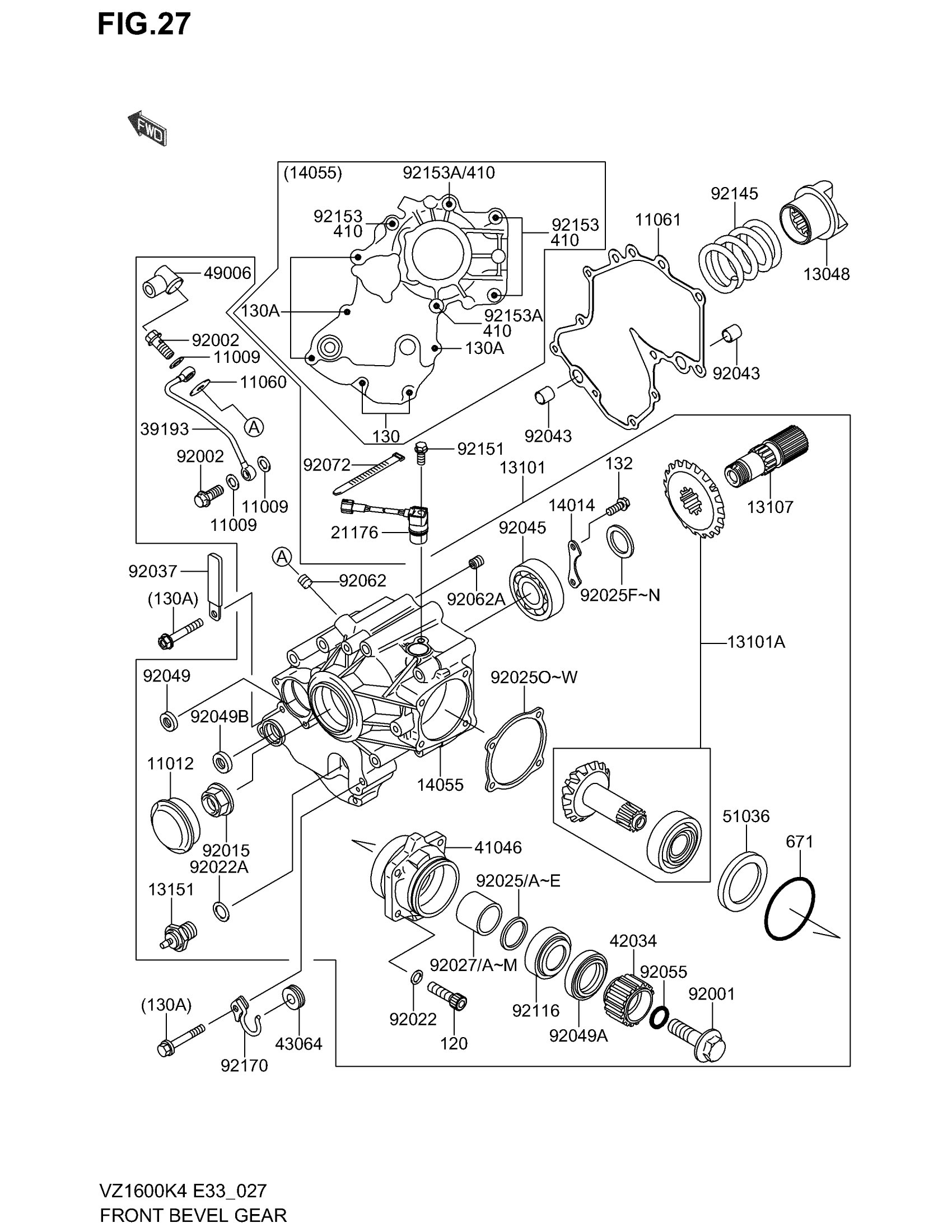

Suzuki VZ1600 E33 (2004) FRONT BEVEL GEAR Diagram
#
11012
CAP
K1101-21071
Unavailable
11060
GASKET,OIL PIPE,8.2X25X1.0
K1106-01872
Unavailable
11061
GASKET,BEVEL GEAR CASE
K1106-10046
Unavailable
13048
CAM-DAMPER
K1304-81085
Unavailable
13101
GEAR-ASSY
K1310-10020
Unavailable
13101A
GEAR-ASSY,BEVEL,FR
K1310-15088
Unavailable
13107
SHAFT,BEVEL,FR
K1310-71525
Unavailable
13151
SWITCH-COMP
K1315-11010
Unavailable
14014
PLATE-POSITION
K1401-41136
Unavailable
14055
CASE-GEAR,FRONT BEVEL
K1405-50006
Unavailable
21176
SENSOR,SPEEDOMETER
K2117-61093
Unavailable
39193
PIPE-OIL
K3919-31026
Unavailable
41046
HOUSING-BEARING
K4104-61099
Unavailable
42034
COUPLING,FR DRIVEN
K4203-41091
Unavailable
43064
GROMMET,HOSE CLAMP
KK430-64006
Unavailable
49006
BOOT,DUST
K4900-61040
Unavailable
51036
CUP
K5103-61002
Unavailable
92001
BOLT,FLANGED,12X42
K9200-11169
Unavailable
92002
BOLT,8X20
K9200-21429
Unavailable
92015
NUT,24MM
K9201-51554
Unavailable
92022
WASHER,8.5X13X1
K9202-21028
Unavailable
92022A
WASHER
K9202-21211
Unavailable
92025
SHIM,25.2X29.8X1.70
K9202-51072
Unavailable
92025A
SHIM,25.2X29.8X1.72
K9202-51073
Unavailable
92025B
SHIM,25.2X29.8X1.74
K9202-51074
Unavailable
92025C
SHIM,25.2X29.8X1.76
K9202-51075
Unavailable
92025D
SHIM,25.2X29.8X1.78
K9202-51076
Unavailable
92025E
SHIM,25.2X29.8X1.80
K9202-51077
Unavailable
92025F
SHIM,25.3X36X0.15
K9202-51688
Unavailable
92025G
SHIM,25.3X36X0.50
K9202-51689
Unavailable
92025H
SHIM,25.3X36X0.60
K9202-51690
Unavailable
92025I
SHIM,25.3X36X0.70
K9202-51691
Unavailable
92025J
SHIM,25.3X36X0.80
K9202-51692
Unavailable
92025K
SHIM,25.3X36X0.90
K9202-51693
Unavailable
92025L
SHIM,25.3X36X1.00
K9202-51694
Unavailable
92025M
SHIM,25.3X36X1.10
K9202-51695
Unavailable
92025N
SHIM,25.3X36X1.20
K9202-51696
Unavailable
92025O
SHIM,T=0.15
K9202-51818
Unavailable
92025P
SHIM,T=0.50
K9202-51819
Unavailable
92025Q
SHIM,T=0.60
K9202-51820
Unavailable
92025R
SHIM,T=0.70
K9202-51821
Unavailable
92025S
SHIM,T=0.80
K9202-51822
Unavailable
92025T
SHIM,T=0.90
K9202-51823
Unavailable
92025U
SHIM,T=1.00
K9202-51824
Unavailable
92025V
SHIM,T=1.20
K9202-51825
Unavailable
92025W
SHIM,T=0.10
K9202-51826
Unavailable
92027
COLLAR,25.2X29.8X22.8
K9202-71152
Unavailable
92027A
COLLAR,25.2X29.8X22.9
K9202-71153
Unavailable
92027B
COLLAR,25.2X29.8X23
K9202-71154
Unavailable
92027C
COLLAR,25.2X29.8X23.1
K9202-71155
Unavailable
92027D
COLLAR,25.2X29.8X23.2
K9202-71156
Unavailable
92027E
COLLAR,25.2X29.8X23.3
K9202-71157
Unavailable
92027F
COLLAR,25.2X29.8X23.4
K9202-71158
Unavailable
92027G
COLLAR,25.2X29.8X23.5
K9202-71159
Unavailable
92027H
COLLAR,25.2X29.8X23.6
K9202-71160
Unavailable
92027I
COLLAR,25.2X29.8X23.7
K9202-71161
Unavailable
92027J
COLLAR,25.2X29.8X23.8
K9202-71162
Unavailable
92027K
COLLAR,25.2X29.8X23.9
K9202-71163
Unavailable
92027L
COLLAR,25.2X29.8X24
K9202-71164
Unavailable
92027M
COLLAR,25.2X29.8X24.1
K9202-71165
Unavailable
92037
CLAMP,L=60
K9203-71069
Unavailable
92043
PIN,11.5X14X14
K9204-31279
Unavailable
92045
BEARING-BALL,6305C2
K9204-51165
Unavailable
92049
SEAL-OIL,SD-8187
K9204-91017
Unavailable
92049A
SEAL-OIL,TC35527
K9204-91038
Unavailable
92055
RING-O,ID=18.64
K9205-51044
Unavailable
92062
NOZZLE,6X8,GREEN
K9206-21078
Unavailable
92062A
NOZZLE,10X10,SILVER
K9206-21083
Unavailable
92072
BAND,L=202
K9207-21195
Unavailable
92116
BEARING-ROLLER,HI-CAP30205
K9211-61062
Unavailable
92145
SPRING,CAM DAMPER
K9214-51102
Unavailable
92151
BOLT
K9215-11755
Unavailable
92153
BOLT,8X80
K9215-30433
Unavailable
92153A
BOLT,8X95
K9215-30434
Unavailable
92170
CLAMP
K9217-01732
Unavailable
120
BOLT-SOCKET,8X3 This part replaces KK120-S0830.
K120C-B0830
Unavailable
130
BOLT-FLANGED
KK130-S0630
Unavailable
130A
BOLT-FLANGED
KK130-S0640
Unavailable
132
BOLT FLANGED, S This part replaces KK132-G0616.
K132B-A0616
Unavailable
671
O RING,65MM
KK671-B2565
Unavailable
