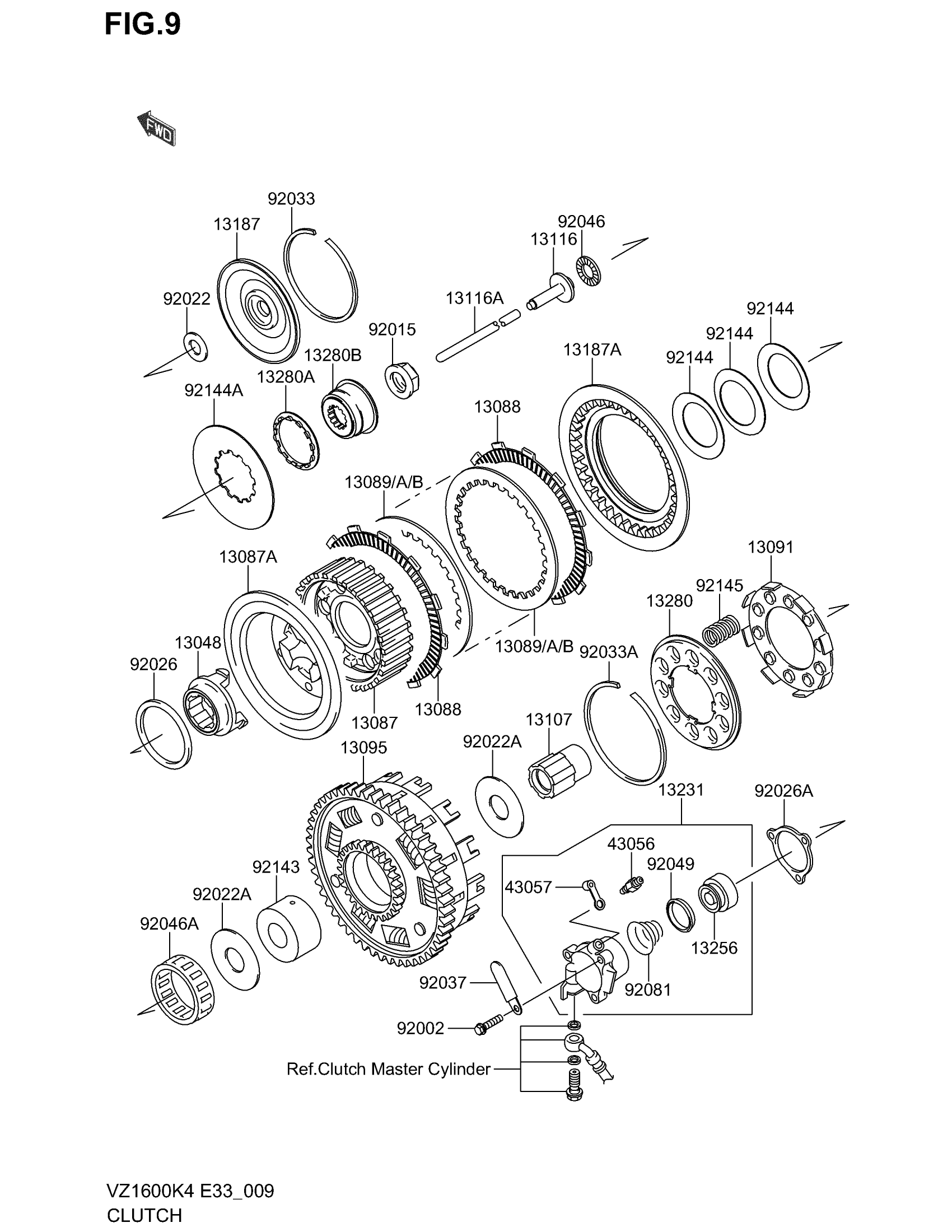

Suzuki VZ1600 E33 (2004) CLUTCH Diagram
#
13048
CAM-DAMPER
K1304-81087
Unavailable
13087
HUB-CLUTCH,OUTER
K1308-71103
Unavailable
13087A
HUB-CLUTCH,INNER
K1308-71110
Unavailable
13089A
PLATE-CLUTCH,T=1.6
K1308-91080
Unavailable
13089B
PLATE-CLUTCH,T=2.3
K1308-91081
Unavailable
13091
HOLDER,DAMPER SPRING
K1309-11495
Unavailable
13095
HOUSING-COMP-CLUTCH
K1309-51395
Unavailable
13107
SHAFT,CLUTCH CAM DAMPER
K1310-71237
Unavailable
13116
ROD-PUSH,CLUTCH
K1311-61102
Unavailable
13116A
ROD-PUSH
K1311-61132
Unavailable
13187
PLATE-CLUTCH OPERATING
K1318-71063
Unavailable
13187A
PLATE-CLUTCH OPERATING
K1318-71066
Unavailable
13231
RELEASE-ASSY-CLUTCH
K1323-11071
Unavailable
13256
PISTON
K1325-61052
Unavailable
13280
HOLDER,DAMPER SPRING
K1328-01303
Unavailable
13280A
HOLDER
K1328-01306
Unavailable
13280B
HOLDER
K1328-01307
Unavailable
43056
BREATHER-BRAKE
K4305-61056
Unavailable
43057
CAP-BREATHER
K4305-71001
Unavailable
92002
BOLT,6X25
K9200-21612
Unavailable
92015
NUT,20MM
K9201-51461
Unavailable
92022
WASHER,15.1X29X1.0
K9202-21463
Unavailable
92022A
WASHER,25.3X56X2.0
K9202-21857
Unavailable
92026
SPACER,59X70X3.5
K9202-61043
Unavailable
92026A
SPACER,CLUTCH RELEASE
K9202-61263
Unavailable
92033
RING-SNAP
K9203-31238
Unavailable
92033A
RING-SNAP
K9203-31239
Unavailable
92037
CLAMP,L=45
K9203-71539
Unavailable
92046
BEARING-NEEDLE,AXK1102
K9204-61052
Unavailable
92046A
BEARING-NEEDLE
K9204-61175
Unavailable
92049
SEAL-OIL,PISTON
K9204-91165
Unavailable
92081
SPRING,CLUTCH RELEASE
K9208-11644
Unavailable
92143
COLLAR,INPUT SHAFT
K9214-31076
Unavailable
92144A
SPRING,CLUTCH This part replaces K9214-41934.
K9214-41295
Unavailable
