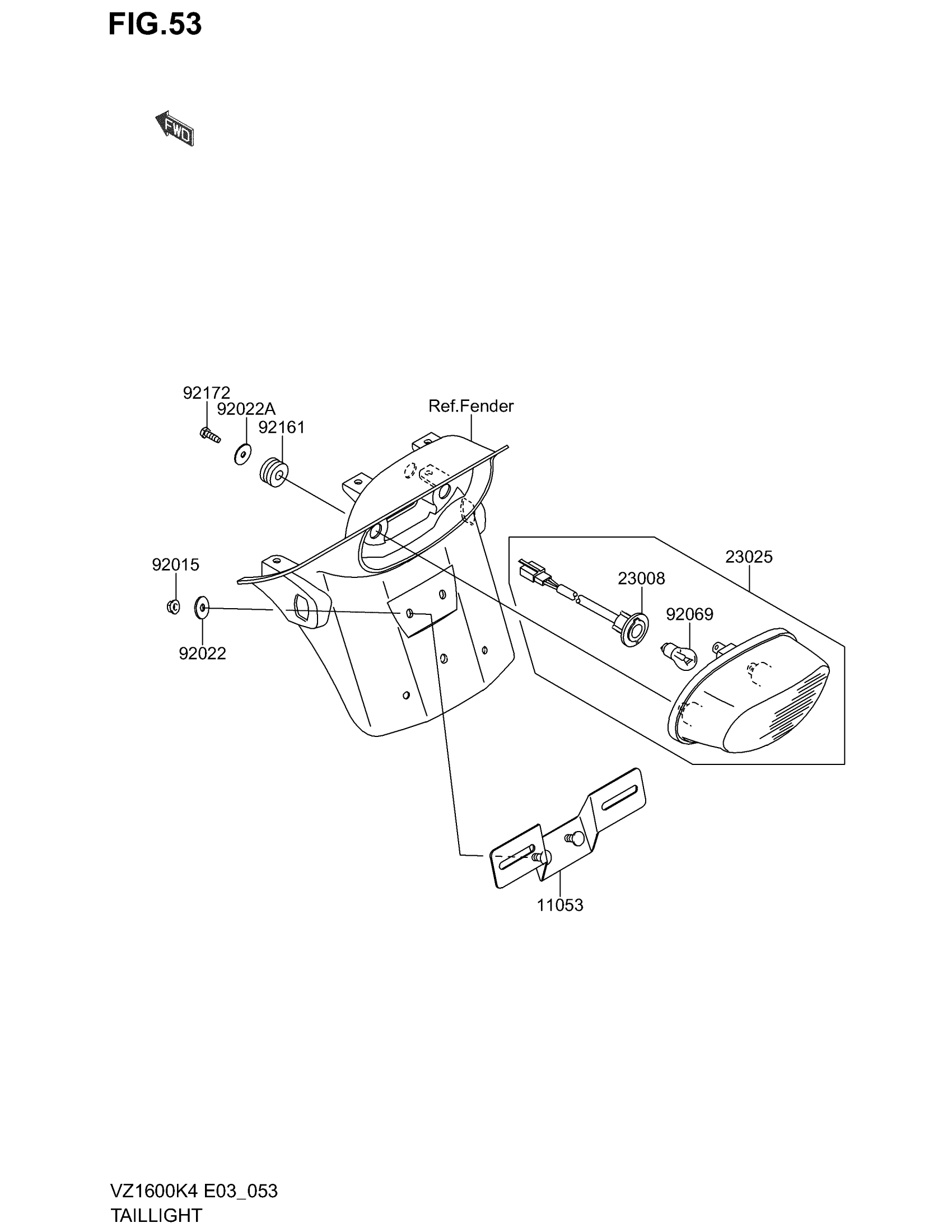

Suzuki VZ1600 E3 (2004) TAILLIGHT Diagram

#

Description

Price

11053

BRACKET,LICENSE

K1105-30407

Unavailable

23008

SOCKET-ASSY,TAIL LAMP

K2300-80012

Unavailable

23025

LAMP-TAIL

K2302-50005

Unavailable

92015

NUT,6MM

K9201-51386

Unavailable

92022

WASHER,6.5X20X1.6,BLACK

K9202-21346

Unavailable

92022A

WASHER,5.5X20X1.2

K9202-21405

Unavailable

92069

BULB,12V 21/5W

K9206-91084

Unavailable

92161

DAMPER

K9216-10154

Unavailable

92172

SCREW,TAPPING,5X16

K9217-20123

Unavailable
