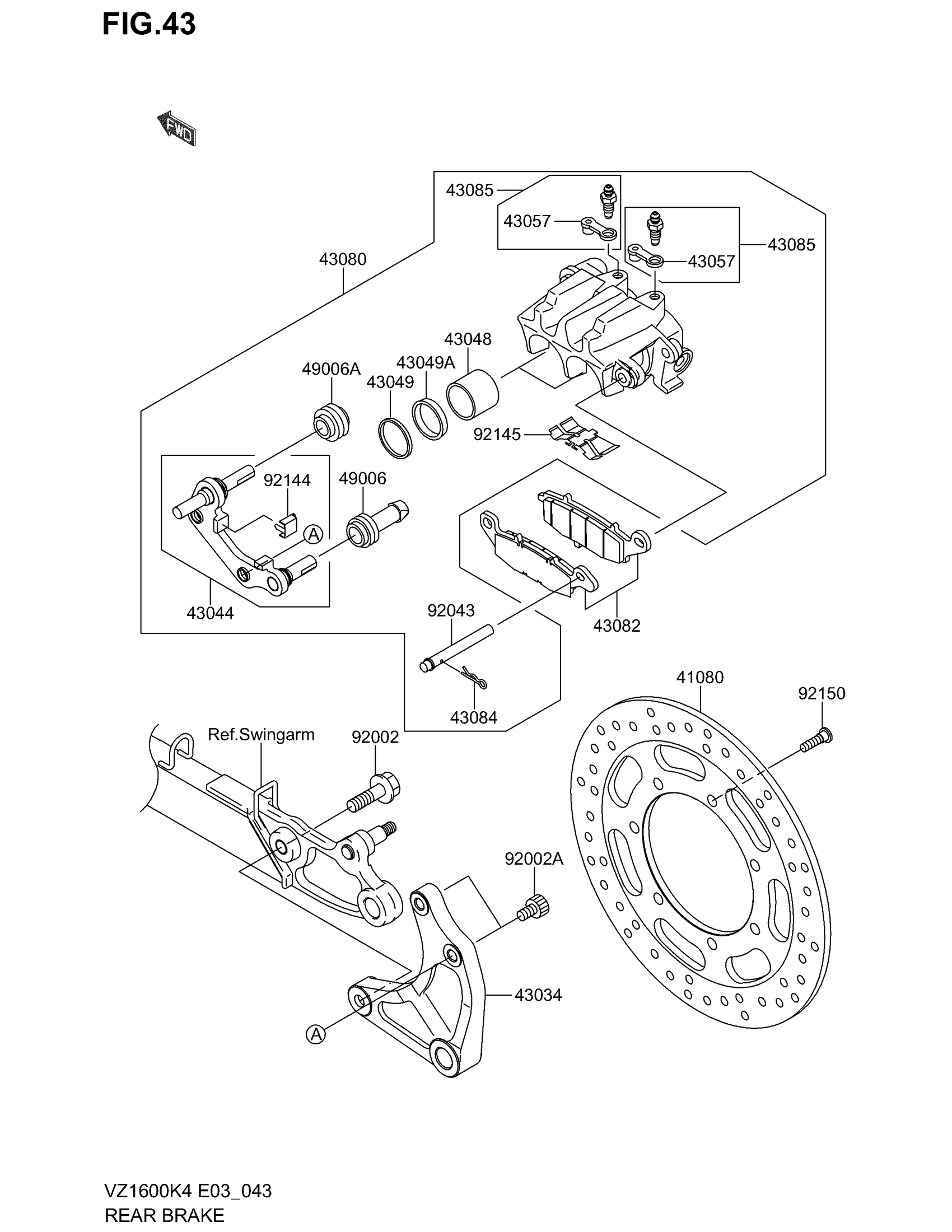

Suzuki VZ1600 E3 (2004) REAR BRAKE Diagram

#

Description

Price

41080

DISC,RR,C.GRAY

KK410-80152-5FB

Unavailable

43034

HOLDER-BRAKE,REAR CALIPER

K4303-41173

Unavailable

43044

HOLDER-COMP-CALIPER,RR

K4304-41134

Unavailable

43048

PISTON-CALIPER

K4304-81094

Unavailable

43049

PACKING

K4304-91068

Unavailable

43049A

PACKING,PISTON SEAL

K4304-91092

Unavailable

43057

CAP-BREATHER

KK430-57003

Unavailable

43080

CALIPER-SUB-ASSY,RR,SILVER

KK430-80509-8GN

Unavailable

43082

PAD-ASSY-BRAKE

K4308-21264

Unavailable

43084

CLAMP,PAD

KK430-84003

Unavailable

43085

BREATHER-BRAKE

KK430-85001

Unavailable

49006

BOOT,CALIPER

K4900-61094

Unavailable

49006A

BOOT,CALIPER

K4900-61095

Unavailable

92002

BOLT,FLANGED,12X40

K9200-21510

Unavailable

92002A

BOLT,SOCKET,10X17

K9200-21713

Unavailable

92043

PIN,PAD

K9204-31640

Unavailable

92144

SPRING,STOPPER

K9214-41831

Unavailable

92145

SPRING,PAD

K9214-51382

Unavailable

92150

BOLT,SOCKET,8X30

K9215-01771

Unavailable
