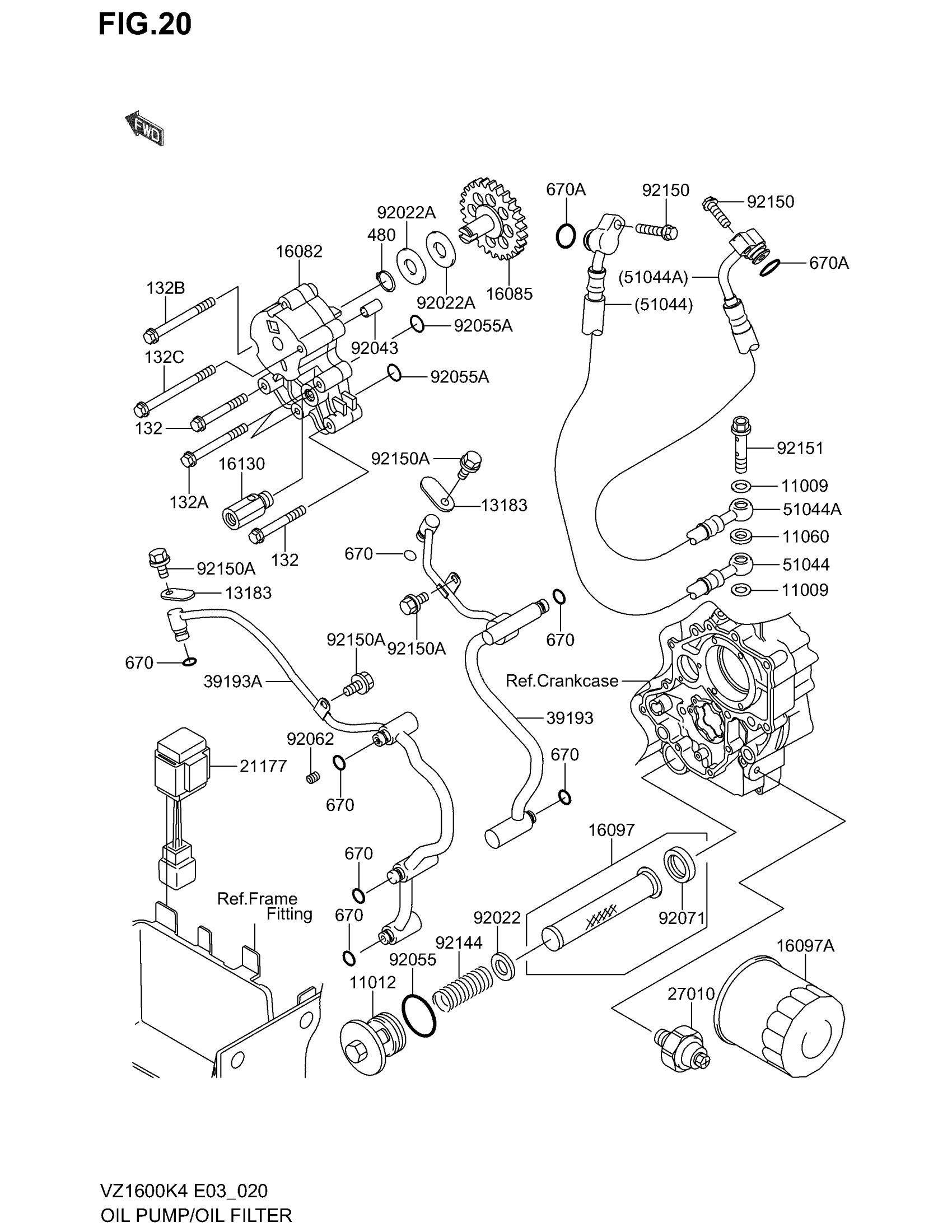

Suzuki VZ1600 E3 (2004) OIL PUMP/OIL FILTER Diagram

#

Description

Price

11009

GASKET,8.2X14X1.0

K1100-91344

$3.14

11012

CAP,OIL FILTER

K1101-21461

Unavailable

11060

GASKET,PIPE JOINT

K1106-01739

Unavailable

13183

PLATE

K1318-31071

Unavailable

16082

PUMP-ASSY-OIL

K1608-21155

Unavailable

16085

GEAR,OIL PUMP,39T

K1608-51345

Unavailable

16097

FILTER-ASSY-OIL

K1609-71058

$21.02

16097A

FILTER ASSY,OIL This part replaces K1609-71072.

K1609-70008

$25.88

16130

VALVE-ASSY-RELIEF

K1613-01059

Unavailable

21177

CONTROLLER,OIL LAMP

K2117-71058

Unavailable

27010

SWITCH,OIL PRESSURE

K2701-01360

Unavailable

39193

PIPE-OIL

K3919-31071

Unavailable

39193A

PIPE-OIL

K3919-31072

Unavailable

51044

TUBE-ASSY,FR

K5104-40011

Unavailable

51044A

TUBE-ASSY,RR

K5104-40012

Unavailable

92022

WASHER,20.1X28X1

K9202-21547

Unavailable

92022A

WASHER,12X27.5X1.0

K9202-21852

Unavailable

92043

PIN,6.2X8X14

K9204-31263

$1.78

92055

RING-O,35.2X2.4

K9205-51358

Unavailable

92055A

RING-O,13.2X2.4

K9205-51373

Unavailable

92062

NOZZLE,6X8,GREEN

K9206-21078

Unavailable

92071

GROMMET,OIL STRAINER

KK920-71100

Unavailable

92144

SPRING

K9214-41106

Unavailable

92150

BOLT,6X25

K9215-01779

Unavailable

92150A

BOLT,6X12

K9215-01868

Unavailable

92151

BOLT,8X35

K9215-11355

Unavailable

132

BOLT-FLANGED-SMALL

KK132-G0645

Unavailable

132A

BOLT-FLANGED-SMALL

KK132-G0655

Unavailable

132B

BOLT-FLANGED-SM This part replaces KK132-G0660.

K132B-A0660

Unavailable

132C

BOLT-FLANGED-SM This part replaces KK132-G0670.

K132B-A0670

Unavailable

480

CIRCLIP-TYPE-C,12MM

KK480-J1200

Unavailable

670

O RING,8MM

KK670-D1508

Unavailable

670A

O RING

KK670-D2010

Unavailable
