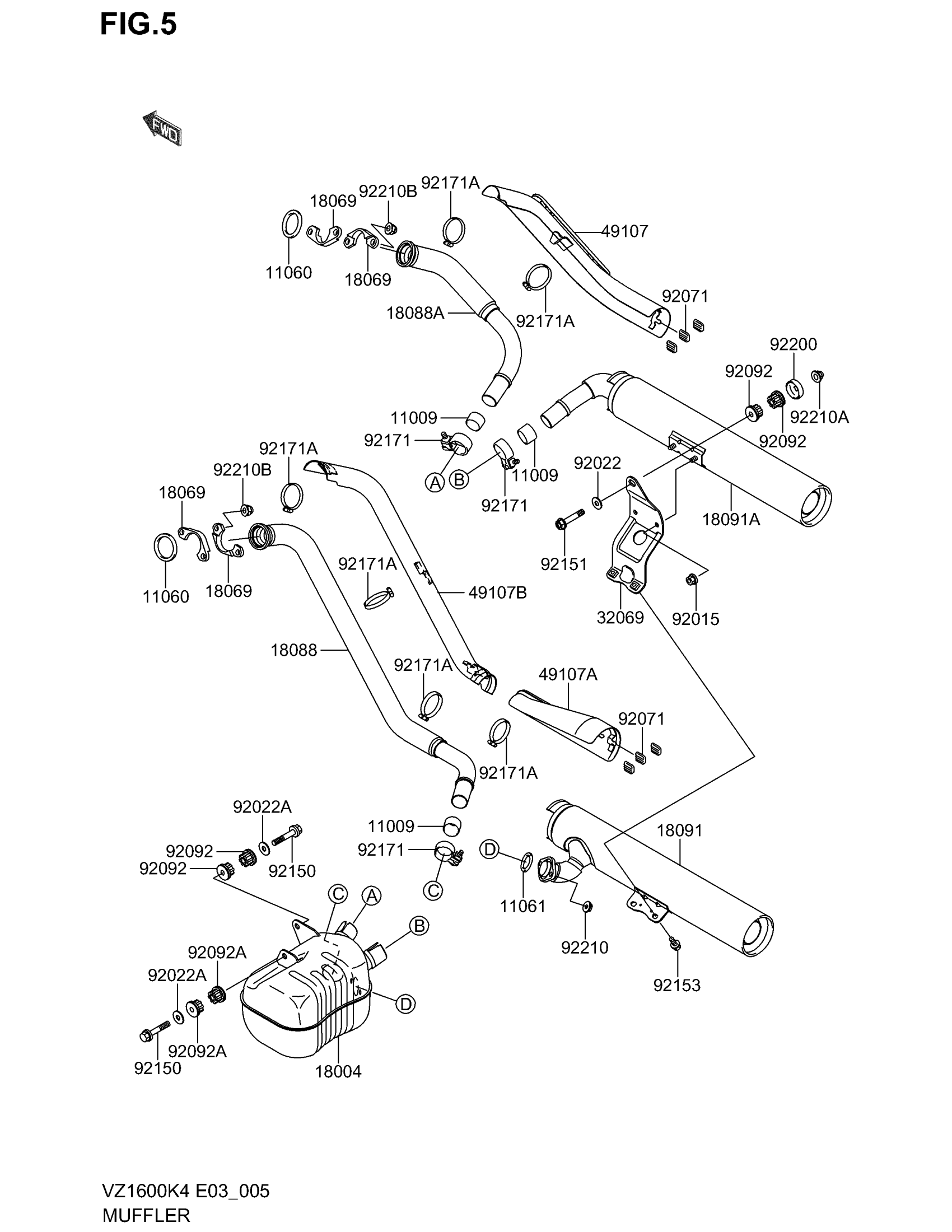

Suzuki VZ1600 E3 (2004) MUFFLER Diagram
#
Description
Price
11009
GASKET,EXHAUST MANIFOLD
K1100-91668
Unavailable
11061
GASKET,EXHAUST PIPE
K1106-11069
Unavailable
18004
CHAMBER-PREMUFFLER
K1800-40003
Unavailable
18069
HOLDER-EXHAUST PIPE
K1806-91161
Unavailable
18088
PIPE-EXHAUST,FR
K1808-81130
Unavailable
18088A
PIPE-EXHAUST,RR
K1808-81131
Unavailable
18091
BODY-COMP-MUFFLER,LWR
K1809-10070
Unavailable
18091A
BODY-COMP-MUFFLER,UPP
K1809-10145
Unavailable
32069
BRACKET-MUFFLER
K3206-90084
Unavailable
49107
COVER-EXHAUST PIPE,RR
K4910-70023
Unavailable
49107B
COVER-EXHAUST PIPE,FR
K4910-71216
Unavailable
92015
NUT,8MM
K9201-51936
Unavailable
92022
WASHER,10.5X26X2.3
KK920-22044
Unavailable
92022A
WASHER,10.5X30X2.3,BLACK
K9202-21302
Unavailable
92092
BUSHING-RUBBER,MUFFLER
K9209-21013
Unavailable
92092A
BUSHING-RUBBER
K9209-21081
Unavailable
92150
BOLT,10X55
K9215-01749
Unavailable
92151
BOLT,FLANGED,10X57
K9215-11332
Unavailable
92153
BOLT-FLANGED-SMALL
K9215-30387
Unavailable
92171
CLAMP
K9217-10084
Unavailable
92171A
CLAMP
K9217-10137
Unavailable
92200
WASHER,10.5X36X2
K9220-01664
Unavailable
92210
NUT,8MM
K9221-00076
Unavailable
92210A
NUT,CAP,10MM
K9221-01121
Unavailable
92210B
NUT,CAP,8MM
K9221-01132
Unavailable
