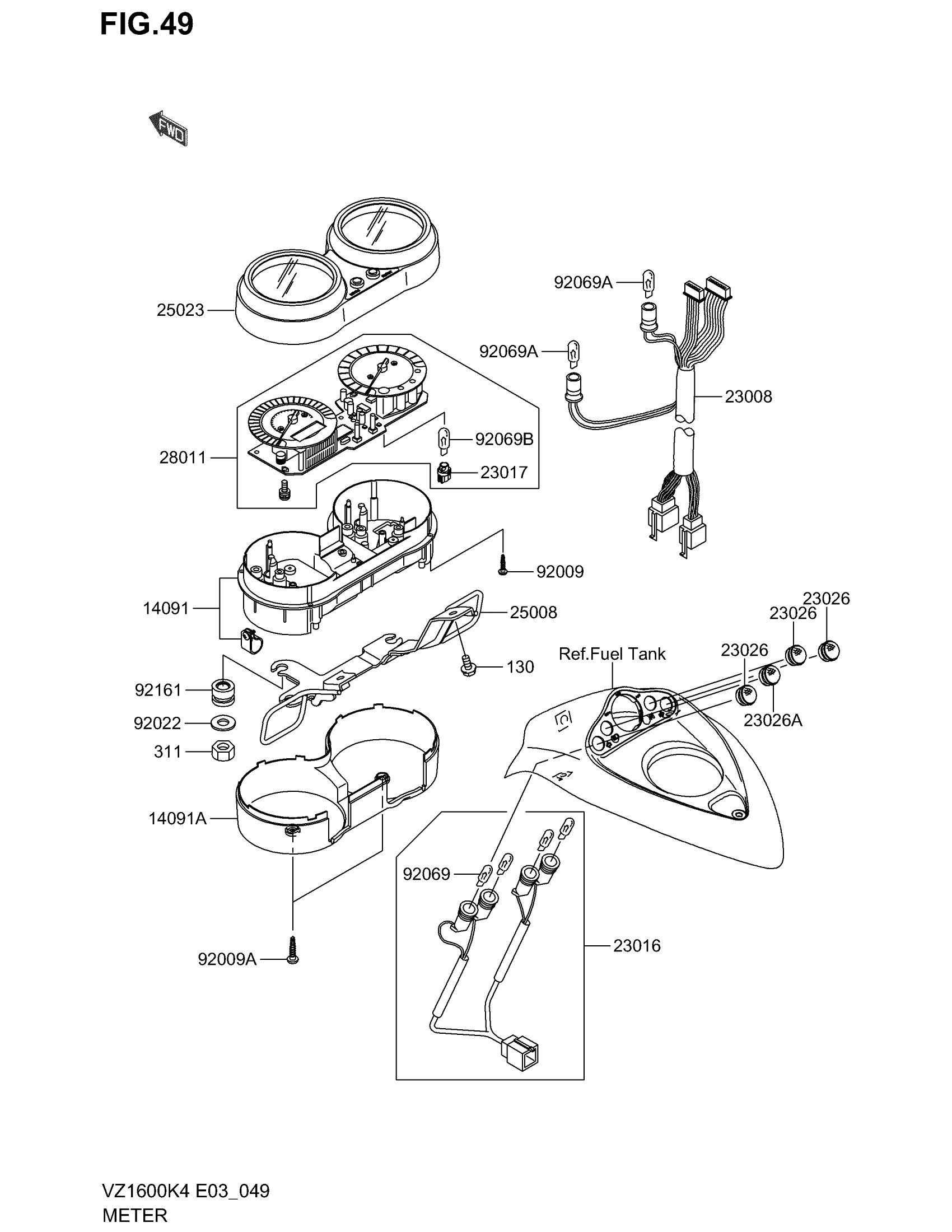

Suzuki VZ1600 E3 (2004) METER Diagram
#
Description
Price
14091
COVER,METER HOUSING
K1409-11370
Unavailable
14091A
COVER,METER,LWR
K1409-11371
Unavailable
23008
SOCKET-ASSY,METER
K2300-81655
Unavailable
23016
LAMP-ASSY
K2301-61192
Unavailable
23017
SOCKET
K2301-71064
Unavailable
23026
LENS,GREEN
K2302-61171
Unavailable
23026A
LENS,BLUE
K2302-61172
Unavailable
25008
BRACKET-METER
K2500-81230
Unavailable
25023
COVER-METER CASE,UPP
K2502-31261
Unavailable
28011
METER,SPEED&TACHO,MPH
K2801-10009
Unavailable
92009
SCREW,TAPPING,3X14
K9200-91592
Unavailable
92009A
SCREW,TAPPING,4X16
K9200-91601
Unavailable
92022
WASHER,5.2X16X1.2
KK920-22263
Unavailable
92069
BULB,12V 3.4W,T10
K9206-91007
Unavailable
92069A
BULB,12V 1.7W,T10
K9206-91059
Unavailable
92069B
BULB,12V 3W,T6.5
K9206-91068
Unavailable
92161
DAMPER,METER BRACKET
K9216-11247
Unavailable
130
BOLT-FLANGED
KK130-J0612
Unavailable
