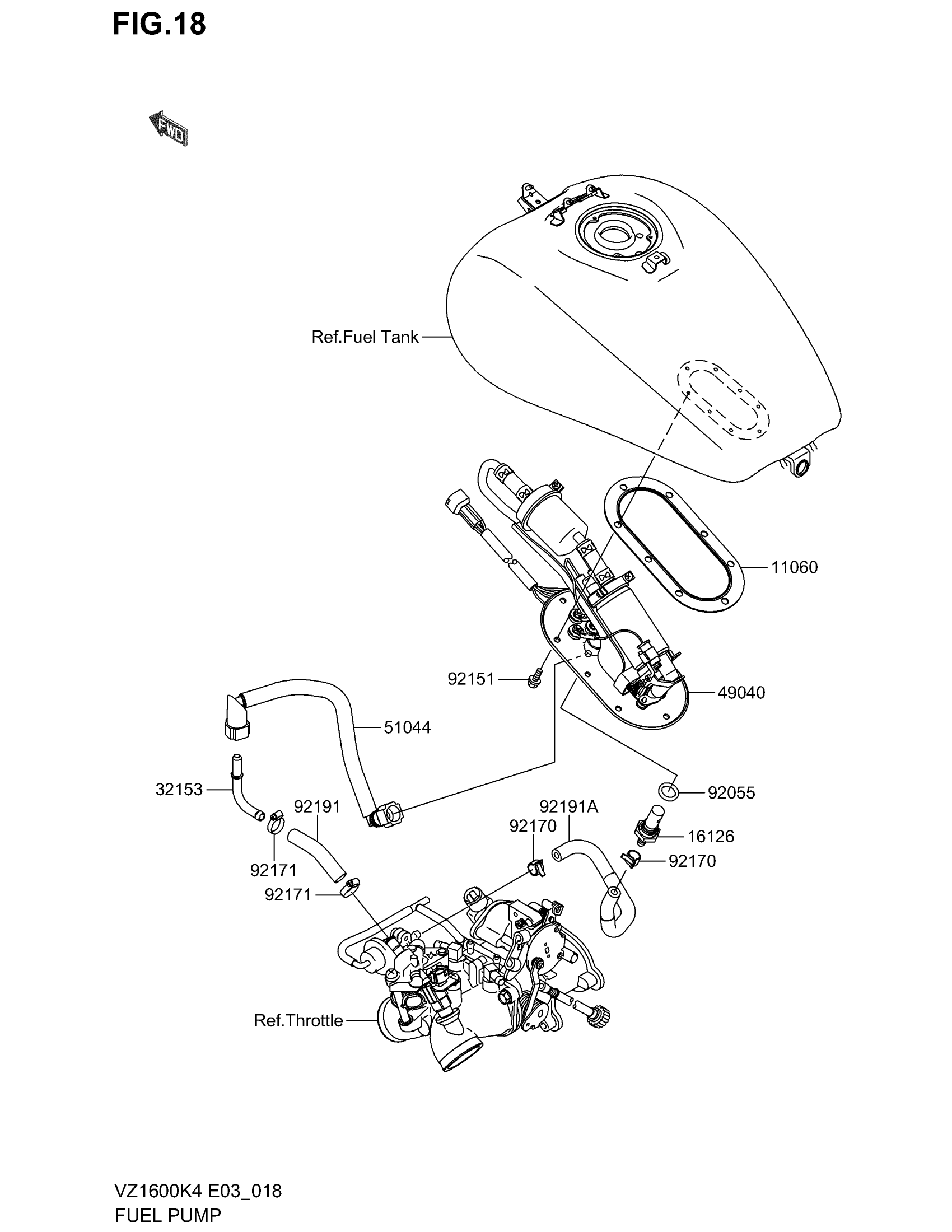

Suzuki VZ1600 E3 (2004) FUEL PUMP Diagram

#

Description

Price

11060

GASKET

K1106-01929

Unavailable

16126

VALVE

K1612-61418

Unavailable

32153

PIPE

K3215-31414

Unavailable

49040

PUMP-FUEL

K4904-01074

Unavailable

51044

TUBE-ASSY

K5104-40010

Unavailable

92055

RING-O,14.8X2.4

K9205-51667

Unavailable

92151

BOLT,5X12

K9215-11599

Unavailable

92170

CLAMP

K9217-01492

Unavailable

92171

CLAMP

K9217-11274

Unavailable

92191

TUBE

K9219-11536

Unavailable

92191A

TUBE

K9219-11557

Unavailable
