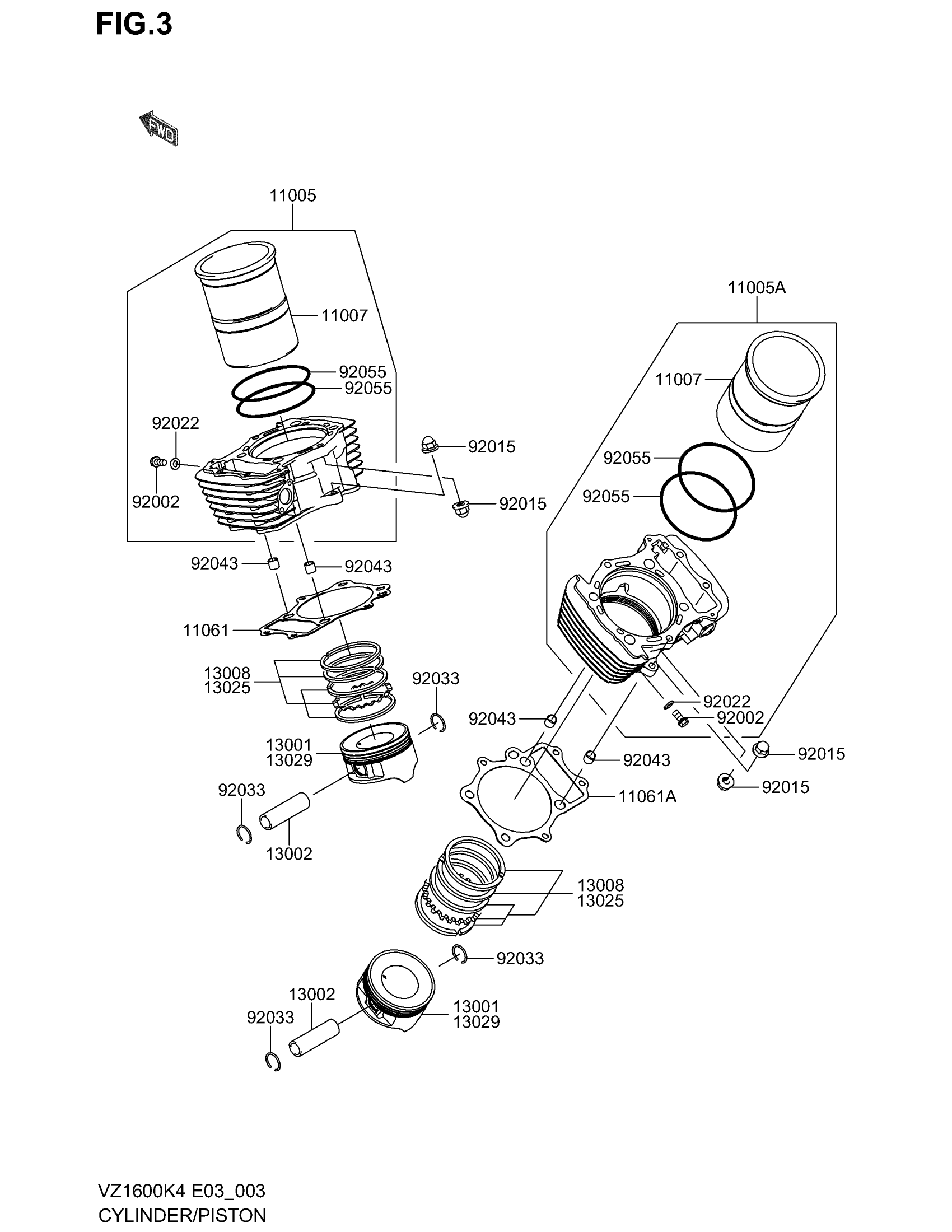

Suzuki VZ1600 E3 (2004) CYLINDER/PISTON Diagram

#

Description

Price

11005

CYLINDER-ENGINE,FR

K1100-50019

Unavailable

11005A

CYLINDER-ENGINE,RR

K1100-50020

Unavailable

11007

LINER-CYLINDER

K1100-71176

Unavailable

11061

GASKET,CYLINDER BASE,FR

K1106-11083

Unavailable

11061A

GASKET,CYLINDER BASE,RR

K1106-11084

Unavailable

13001

PISTON-ENGINE,STD

K1300-10024

Unavailable

13002

PIN-PISTON

K1300-21107

Unavailable

13008

RING-SET-PISTON,STD

K1300-81218

Unavailable

13025

RING-SET-PISTON L,O/S 0.50 | OPTION

K1302-50004

Unavailable

13029

PISTON-ENGINE L,O/S 0.50 | OPTION

K1302-90010

Unavailable

92002

BOLT,6X12

K9200-21569

Unavailable

92015

NUT,CAP,8MM

K9201-51370

Unavailable

92022

WASHER,6.1X12X1

KK920-22077

Unavailable

92033

RING-SNAP

K9203-31226

Unavailable

92043

PIN,13X16X14

K9204-31608

Unavailable

92055

RING-O,110.5X2.5

K9205-51371

Unavailable
