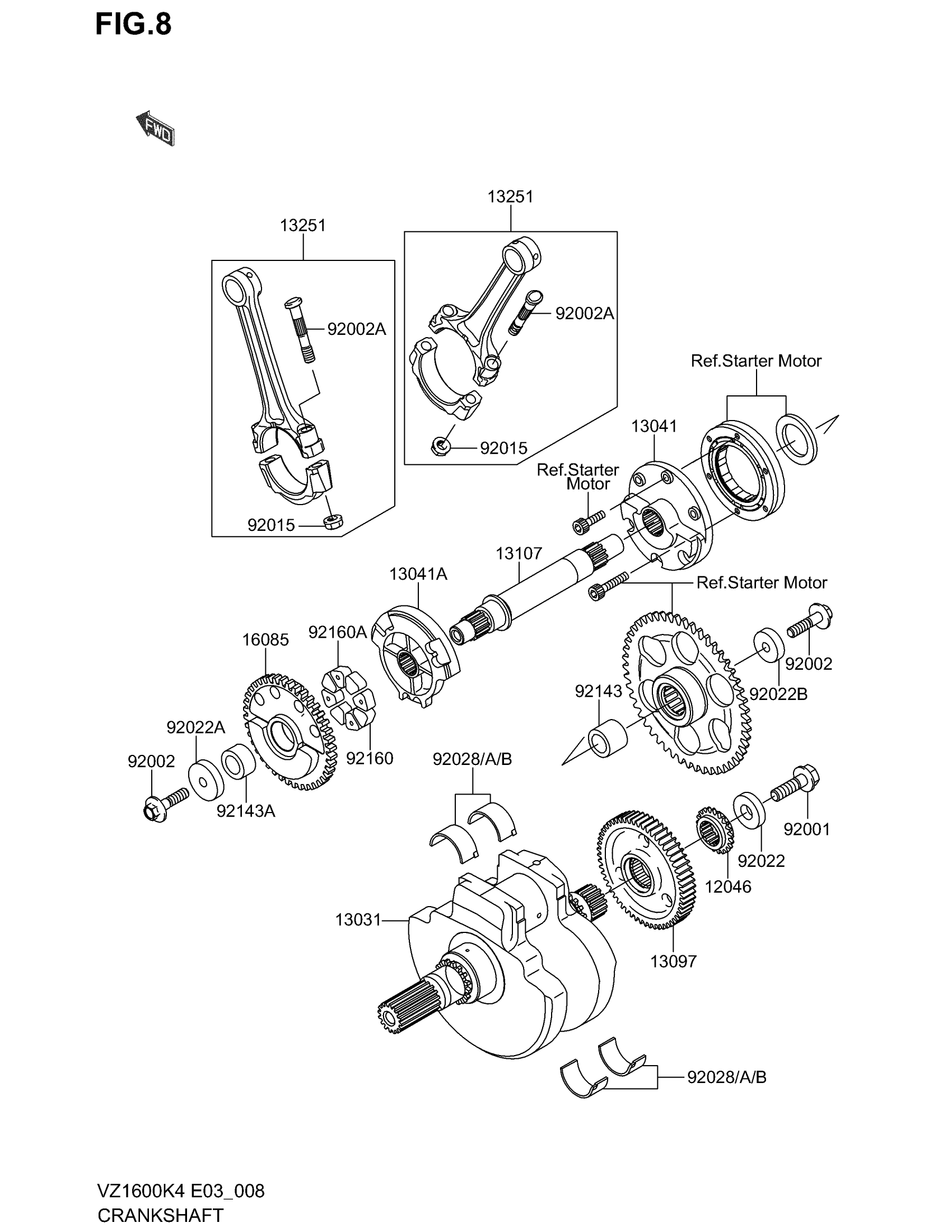

Suzuki VZ1600 E3 (2004) CRANKSHAFT Diagram

#

Description

Price

12046

SPROCKET,WATER PUMP

K1204-61103

Unavailable

13031

CRANKSHAFT-COMP

K1303-10019

Unavailable

13041

BALANCER,RH

K1304-11089

Unavailable

13041A

BALANCER,LH

K1304-11093

Unavailable

13097

GEAR-PRIMARY SPUR,56T

K1309-71369

Unavailable

13107

SHAFT,BALANCER

K1310-71524

Unavailable

13251

ROD-ASSY-CONNECTING,D

KK132-51114-7DD

Unavailable

16085

GEAR,BALANCER

K1608-51366

Unavailable

92001

BOLT,FLANGED,12X40

K9200-11146

Unavailable

92002

BOLT,FLANGED,10X40

K9200-21296

Unavailable

92002A

BOLT,CONNECTING ROD

K9200-21896

Unavailable

92015

NUT,CONNECTING ROD

K9201-51643

Unavailable

92022

WASHER,GENERATOR

K9202-21904

Unavailable

92022A

WASHER,LH,10X40X9

K9202-21905

Unavailable

92022B

WASHER,10X33X9

K9202-21906

Unavailable

92028

BUSHING,CONNECTING ROD,BLUE

K9202-81474

Unavailable

92028A

BUSHING,CONNECTING ROD,BLACK

K9202-81475

Unavailable

92028B

BUSHING,CONNECTING ROD,BROWN

K9202-81476

Unavailable

92143

COLLAR,20X30X24

K9214-31093

Unavailable

92143A

COLLAR,20X31X16

K9214-31821

Unavailable

92160

DAMPER

K9216-01725

Unavailable

92160A

DAMPER

K9216-01726

Unavailable
