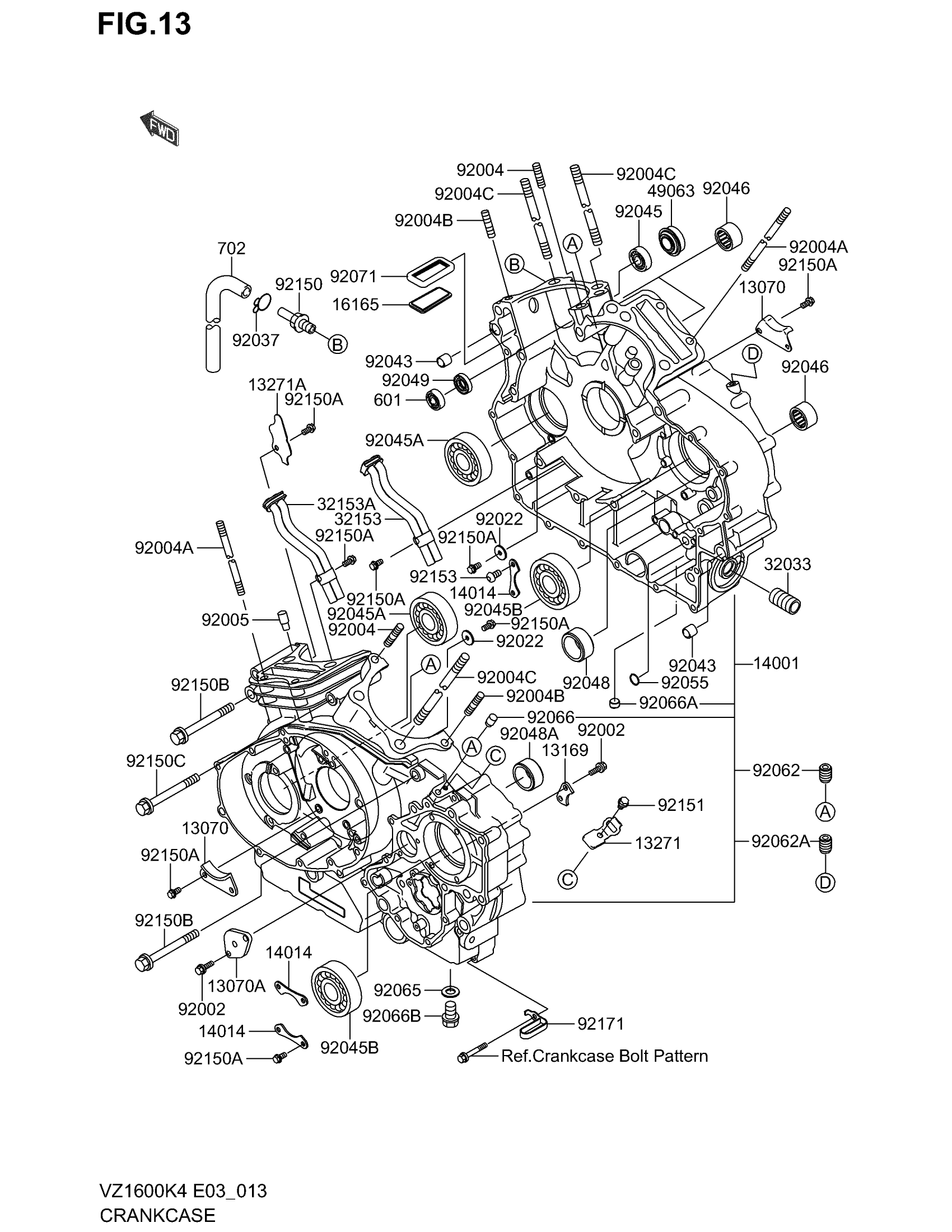

Suzuki VZ1600 E3 (2004) CRANKCASE Diagram

#

Description

Price

13070

GUIDE,CAM CHAIN

K1307-01168

Unavailable

13070A

GUIDE

K1307-01372

Unavailable

13169

PLATE,GEAR CHANGE DRUM

KK131-69014

Unavailable

13271

PLATE

K1327-10210

Unavailable

13271A

PLATE

K1327-11727

Unavailable

14001

SET-CRANKCASE This part replaces K1400-15390.

K1400-15394

Unavailable

14014

PLATE-POSITION

K1401-41084

Unavailable

16165

SEPARATOR

K1616-51058

Unavailable

32033

PIPE,OIL FILTER

K3203-31535

Unavailable

32153

PIPE

K3215-31262

Unavailable

32153A

PIPE

K3215-31263

Unavailable

49063

SEAL-MECHANICAL

K4906-31057

Unavailable

92002

BOLT,6X16

K9200-21439

Unavailable

92004

STUD,8X25

K9200-40011

Unavailable

92004A

STUD,8X231

K9200-41174

Unavailable

92004B

STUD,8X25

K9200-41214

Unavailable

92004C

STUD,12X250

K9200-41240

Unavailable

92005

FITTING

K9200-51155

Unavailable

92022

WASHER,6X19.5X2

K9202-21517

Unavailable

92037

CLAMP

K9203-71835

Unavailable

92043

PIN,11X14X12.3

K9204-31266

Unavailable

92045

BEARING-BALL,6001JRXLLU/5K

K9204-51151

Unavailable

92045A

BEARING-BALL,TMB3/28JR2C3

K9204-51183

Unavailable

92045B

BEARING-BALL,6306SH2

K9204-51190

Unavailable

92046

BEARING-NEEDLE

K9204-61292

Unavailable

92048

RACE

K9204-81103

Unavailable

92048A

RACE

K9204-81113

Unavailable

92049

SEAL-OIL,AC037AE0

K9204-91228

Unavailable

92055

RING-O,13.2X2.4

K9205-51373

Unavailable

92062

NOZZLE,6X8,GREEN

K9206-21078

Unavailable

92062A

NOZZLE

K9206-21089

Unavailable

92065

GASKET,12X22X2,DRAIN PLUG

KK920-65097

Unavailable

92066

PLUG,OIL LINE,7.2X8

K9206-61012

Unavailable

92066A

PLUG

K9206-61110

Unavailable

92066B

PLUG,OIL DRAIN,12X15

K9206-61174

$4.90

92071

GROMMET,SEPARATOR

K9207-11269

Unavailable

92150

BOLT

K9215-01161

Unavailable

92150A

BOLT,6X12

K9215-01868

Unavailable

92150B

BOLT,10X105

K9215-01993

Unavailable

92150C

BOLT,10X115

K9215-01994

Unavailable

92151

BOLT,6X8

K9215-11416

Unavailable

92153

BOLT,6X12

K9215-30344

Unavailable

92171

CLAMP

K9217-11273

Unavailable

601

BEARING-BALL

KK601-A6001

Unavailable

702

TUBE-RUBBER,4X330

K702A-04330

Unavailable
