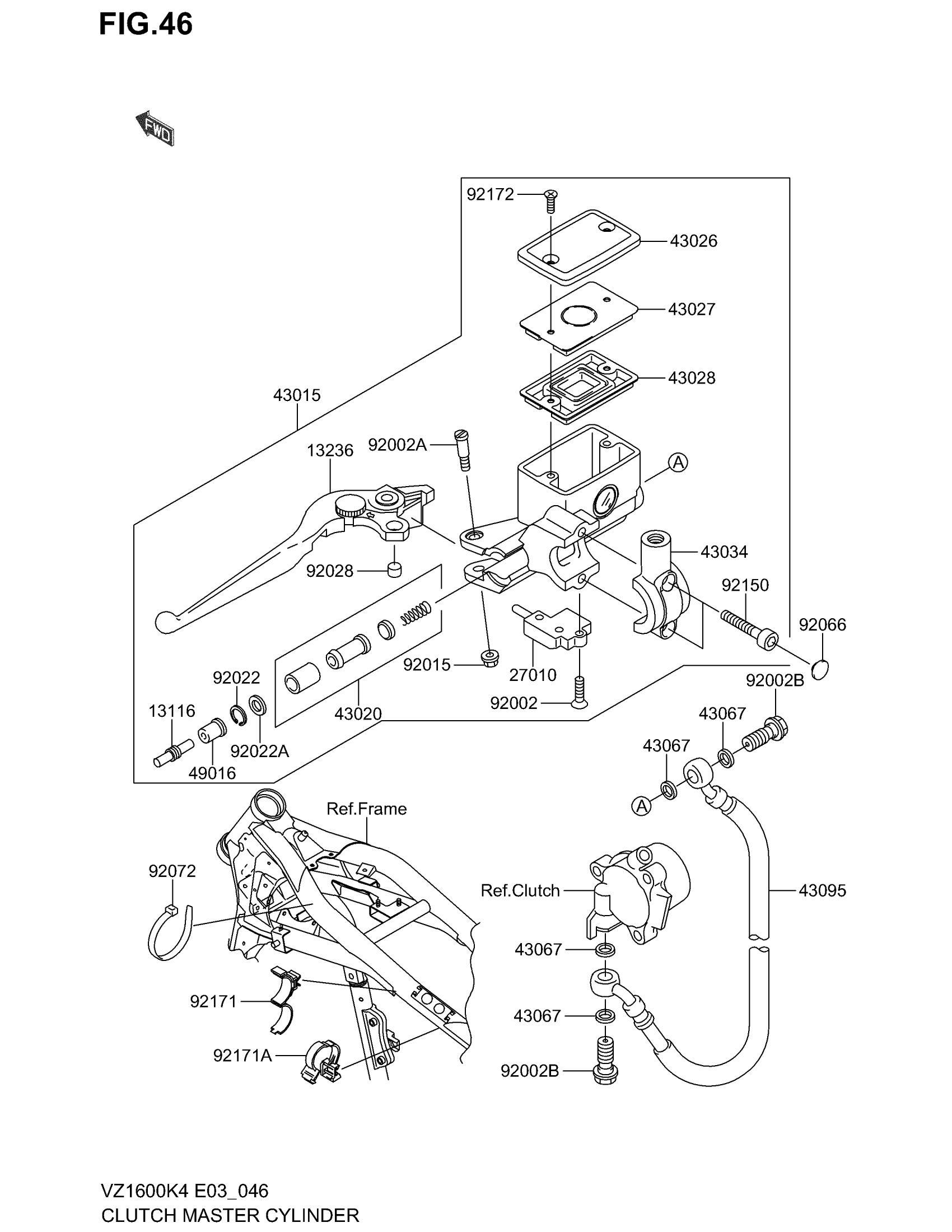

Suzuki VZ1600 E3 (2004) CLUTCH MASTER CYLINDER Diagram

#

Description
Price

13116

ROD-PUSH,MASTER CYLINDER

K1311-61110

Unavailable

13236

LEVER-COMP,CLUTCH

K1323-61316

Unavailable

27010

SWITCH,CLUTCH

K2701-01406

Unavailable

43015

CYLINDER-ASSY-MASTER,CLUTCH

K4301-50022

Unavailable

43020

PISTON-COMP-BRAKE,CLUTCH

K4302-01055

Unavailable

43026

CAP-BRAKE

K4302-60002

Unavailable

43027

PLATE-DIAPHRAGM

K4302-71059

Unavailable

43028

DIAPHRAGM,MASTER CYLINDER

K4302-81058

Unavailable

43034

HOLDER-BRAKE

K4303-41172

$34.08

43067

WASHER,SEAL,10. This part replaces KK430-67001.

K4909-10001

$1.68

43095

HOSE-BRAKE,CLUTCH

K4309-51215

Unavailable

49016

COVER-SEAL,MASTER CYLINDER

K4901-61044

Unavailable

92002

SCREW,4X16

K9200-21325

Unavailable

92002A

BOLT,LEVER SET

K9200-21561

Unavailable

92002B

BOLT,OIL,L=23 This part replaces K9200-21888.

K9215-30627

$4.82

92015

NUT,FLANGED,6MM

K9201-51528

Unavailable

92022

CIRCLIP

K9202-21605

Unavailable

92022A

WASHER,PISTON

K9202-21606

Unavailable

92028

BUSHING,MASTER CYLINDER

K9202-81310

Unavailable

92066

PLUG

K9206-61301

Unavailable

92072

BAND,L=365

K9207-21197

Unavailable

92150

BOLT,SOCKET,6MM

K9215-01025

Unavailable

92171

CLAMP,DIA=15

K9217-11424

Unavailable

92171A

CLAMP,HOSE

K9217-11440

Unavailable

92172

SCREW

K9217-20083

Unavailable
