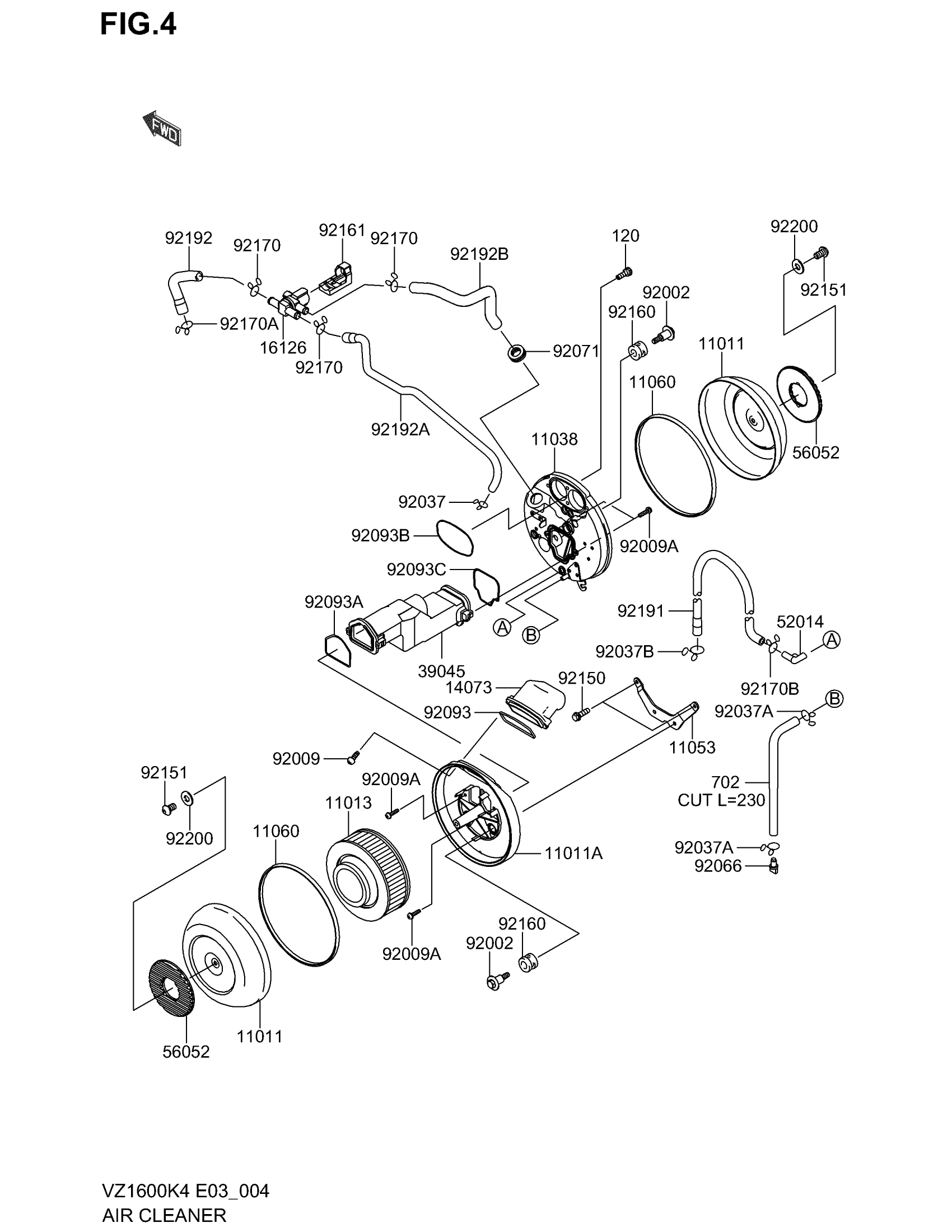

Suzuki VZ1600 E3 (2004) AIR CLEANER Diagram

#

Description

Price

11011

CASE-AIR FILTER

K1101-10009

Unavailable

11011A

CASE-AIR FILTER,LH

K1101-10020

Unavailable

11013

ELEMENT-AIR FILTER

K1101-31248

$89.50

11038

CASE-ASSY-AIR FILTER,RH

K1103-80005

Unavailable

11053

BRACKET

K1105-30231

Unavailable

11060

GASKET,AIR FILTER CASE

K1106-01968

Unavailable

14073

DUCT,AIR FILTER

K1407-31739

Unavailable

16126

VALVE,AIR CUT

K1612-61437

Unavailable

39045

DUCT-ASSY,CENTER

K3904-50003

Unavailable

52014

ELBOW

K5201-41083

Unavailable

56052

MARK

K5605-20227

Unavailable

92002

BOLT

K9200-21595

Unavailable

92009

SCREW,TAPPING,5X16

K9200-91264

Unavailable

92009A

SCREW,5X20

K9200-91905

Unavailable

92037

CLAMP

K9203-71468

Unavailable

92037A

CLAMP,TUBE

KK920-37147

$5.42

92037B

CLAMP

K9203-71593

Unavailable

92066

PLUG,DRAIN

K9206-61211

Unavailable

92071

GROMMET,AIR FILTER

K9207-11042

Unavailable

92093

SEAL,AIR FILTER CASE

K9209-31408

Unavailable

92093A

SEAL,DUCT,LH

K9209-31459

Unavailable

92093B

SEAL

K9209-31485

Unavailable

92093C

SEAL,DUCT,RH

K9209-31491

Unavailable

92150

BOLT,6X16 This part replaces K9215-01010.

K9200-21570

Unavailable

92151

BOLT,8X14

K9215-11438

Unavailable

92160

DAMPER

K9216-01594

Unavailable

92161

DAMPER

K9216-10002

Unavailable

92170

CLAMP

K9217-01017

Unavailable

92170A

CLAMP,TUBE

K9217-01445

Unavailable

92170B

CLAMP

K9217-01695

Unavailable

92191

TUBE,BREATHER

K9219-11820

Unavailable

92192

TUBE,FR HEAD-AIR SWITCH

K9219-20001

Unavailable

92192A

TUBE,RR HEAD-AIR SWITCH

K9219-20002

Unavailable

92192B

TUBE,AIR SWITCH-AIR CLEANER

K9219-20003

Unavailable

92200

WASHER,8.5X20X1.6

K9220-01463

Unavailable

120

BOLT-SOCKET

KK120-S0616

Unavailable

702

TUBE-RUBBER,7X10X1000

KKK70-2A071

Unavailable
