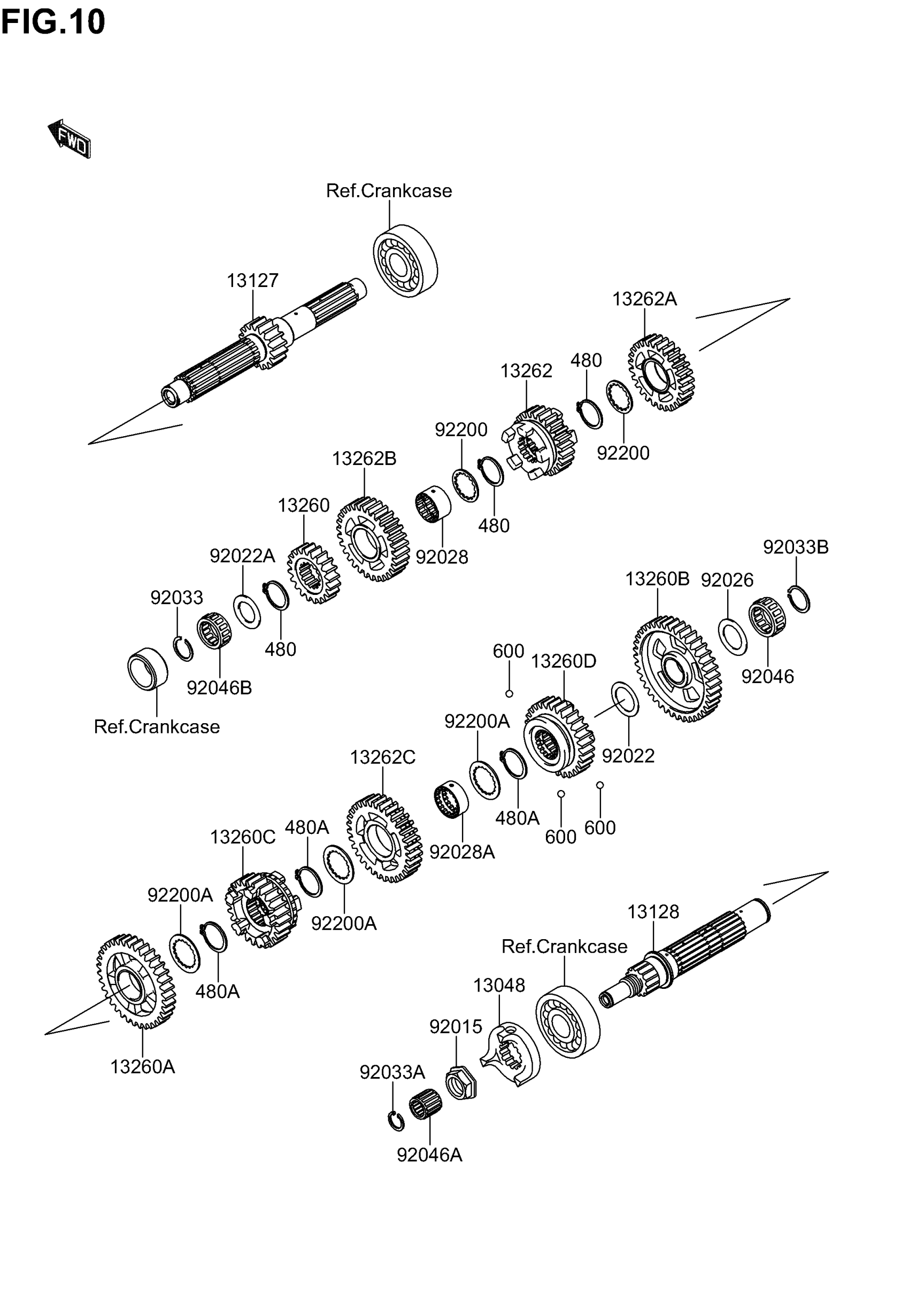

Suzuki VZ1600 (CA) (2005) TRANSMISSION Diagram

#

Description

Price

13048

CAM-DAMPER

K1304-81086

Unavailable

13127

SHAFT-TRANSMISSION INPUT

K1312-71288

Unavailable

13128

SHAFT-TRANSMISSION OUTPUT

K1312-80002

Unavailable

13260

GEAR,INPUT 2ND,20T

K1326-01905

Unavailable

13260A

GEAR,OUTPUT 2ND,35T

K1326-01909

Unavailable

13260B

GEAR,OUTPUT LOW,40T

K1326-01910

Unavailable

13260C

GEAR,OUTPUT TOP,26T

K1326-01912

Unavailable

13260D

GEAR,OUTPUT 4TH,29T

K1326-01913

Unavailable

13262

GEAR,INPUT 3RD,24T

K1326-20053

Unavailable

13262A

GEAR,INPUT 4TH,27T

K1326-20054

Unavailable

13262B

GEAR,INPUT 5TH,30T

K1326-20055

Unavailable

13262C

GEAR,OUTPUT 3RD,32T

K1326-20056

Unavailable

92015

NUT,20MM

K9201-51610

Unavailable

92022

WASHER,25.5X36X1.0

K9202-21855

Unavailable

92022A

WASHER,22.3X35X1.6

KK920-22212

Unavailable

92026

SPACER,25.5X38X1.0

K9202-61536

Unavailable

92028

BUSHING,INPUT TOP GEAR

K9202-81990

Unavailable

92028A

BUSHING,OUTPUT 3RD GEAR

K9202-81991

Unavailable

92033

RING-SNAP,20X25.5X1.2

KK920-33025

Unavailable

92033A

RING-SNAP

KK920-33032

Unavailable

92033B

RING-SNAP,25MM

K9203-31172

Unavailable

92046

BEARING-NEEDLE,TK253515

K9204-61259

Unavailable

92046A

BEARING-NEEDLE,FWF-162222

K9204-61260

Unavailable

92046B

BEARING-NEEDLE,BN502250

K9204-61293

Unavailable

92200

WASHER,28.5X34.0X1.5

K9220-01240

Unavailable

92200A

WASHER,30.3X40X1.5

K9220-01381

Unavailable

480

CIRCLIP-TYPE-C,28MM

KK480-J2800

Unavailable

480A

CIRCLIP

KK480-J2900

Unavailable

600

BALL-STEEL,5/32"

KK600-A0500

Unavailable
