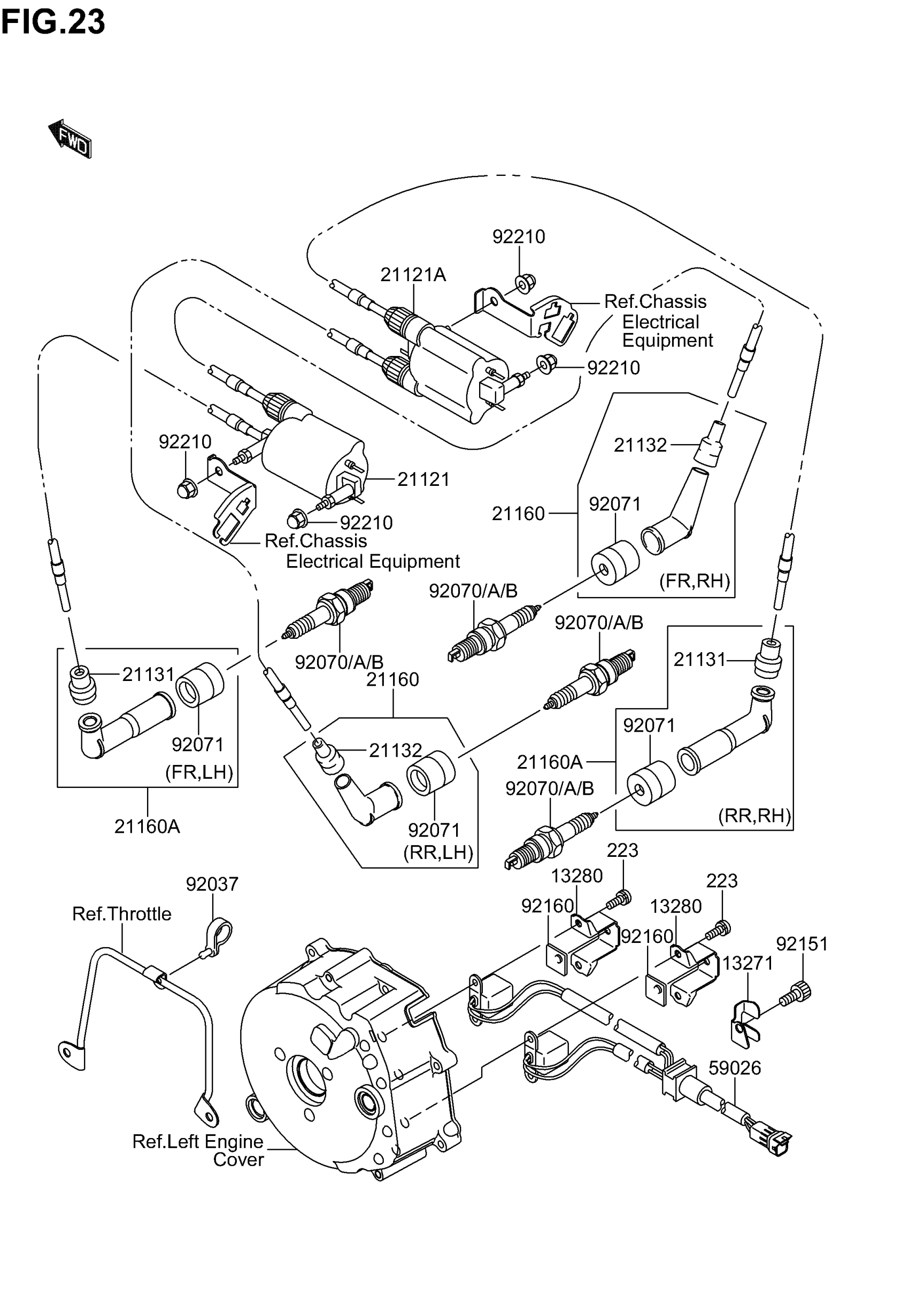

Suzuki VZ1600 (CA) (2005) IGNITION SYSTEM Diagram

#

Description

Price

13271

PLATE

K1327-11339

Unavailable

13280

HOLDER

K1328-01255

Unavailable

21121

COIL-IGNITION,FR

K2112-11302

Unavailable

21121A

COIL-IGNITION,RR

K2112-11303

Unavailable

21131

GROMMET,HIGH TENSION

KK211-31005

Unavailable

21132

GROMMET,HIGH TENSION

KK211-32005

Unavailable

21160

CAP-ASSY-PLUG

K2116-00004

Unavailable

21160A

CAP-ASSY-PLUG

K2116-01091

Unavailable

59026

COIL-PULSING

K5902-61158

Unavailable

92037

CLAMP,SPEED,L=43

K9203-71290

Unavailable

92070

PLUG-SPARK,DPR7EA9(NGK) | OPTION

K9207-01125

Unavailable

92070A

PLUG-SPARK,DPR6EA9(NGK)

K9207-01138

Unavailable

92070B

PLUG-SPARK,DPR5EA9(NGK) | OPTION

K9207-01250

Unavailable

92071

GROMMET,PLUG CAP

K9207-11184

$4.15

92151

BOLT,6X10

K9215-13704

Unavailable

92160

DAMPER

K9216-01091

Unavailable

92210

NUT,CAP,6MM

K9221-00003

Unavailable

223

SCREW-PAN-WS-CROS

KK223-B0516

Unavailable
