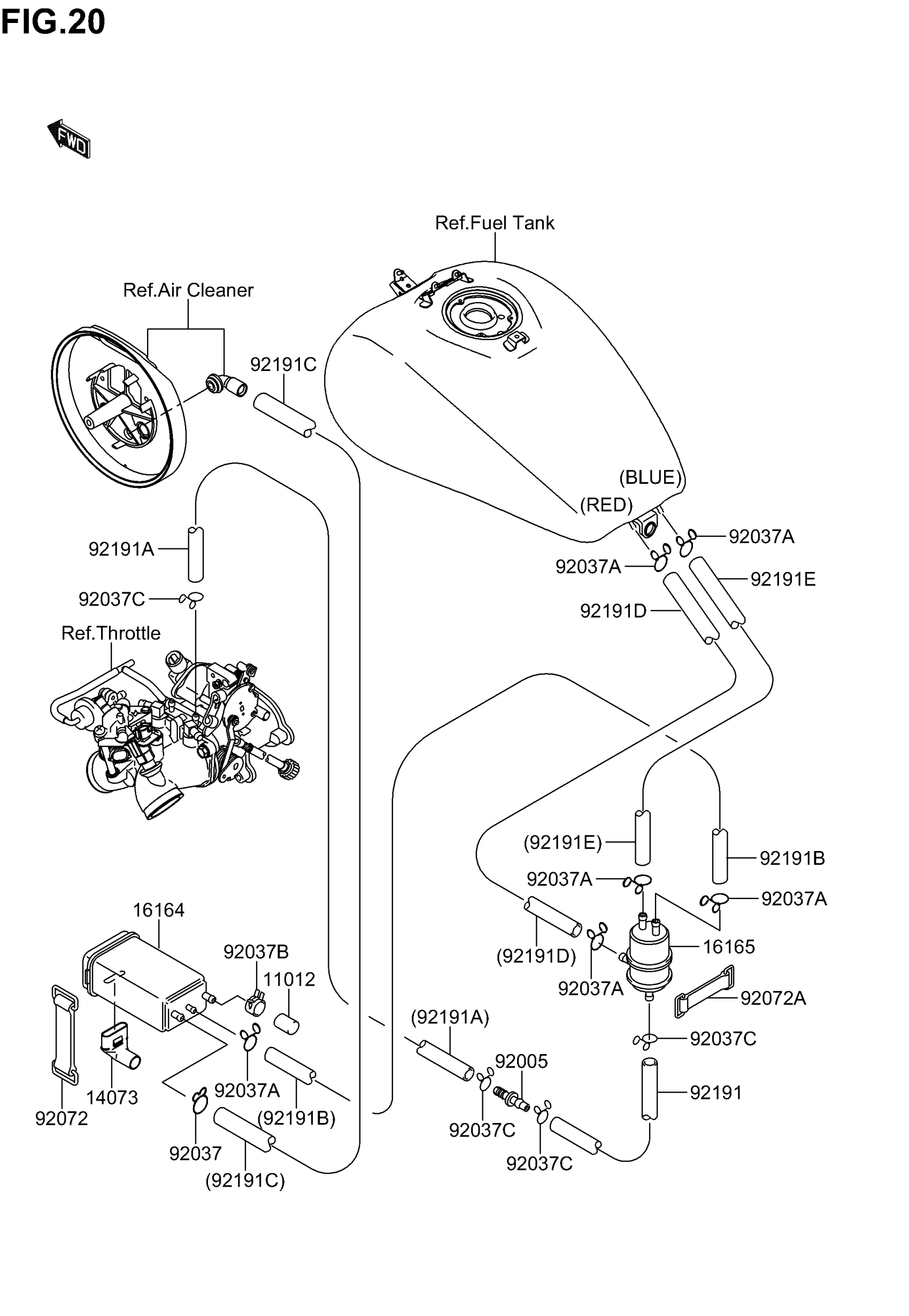

Suzuki VZ1600 (CA) (2005) FUEL EVAPORATIVE SYSTEM Diagram

#

Description

Price

11012

CAP,CANISTER

K1101-21388

Unavailable

14073

DUCT,CANISTER

K1407-31219

Unavailable

16164

CANISTER

K1616-41070

Unavailable

16165

SEPARATOR

K1616-51001

Unavailable

92005

FITTING

K9200-51206

Unavailable

92037

CLAMP,HOSE

K9203-71104

Unavailable

92037A

CLAMP,TUBE

KK920-37147

$5.42

92037B

CLAMP,CANISTER

K9203-71512

Unavailable

92037C

CLAMP

K9203-71712

Unavailable

92072

BAND,L=90

KK920-72045

Unavailable

92072A

BAND,L=50

K9207-21419

Unavailable

92191

TUBE,THROTTLE-SEPARATOR,WHITE

K9219-11375

Unavailable

92191A

TUBE,4X9X180,WHITE

K9219-11414

Unavailable

92191B

TUBE,SEPARATOR-CANISTER,BLUE

K9219-11677

Unavailable

92191C

TUBE,CANISTER-CLEANER,GREEN

K9219-11678

Unavailable

92191D

TUBE,TANK-SEPARATOR,RED

K9219-11695

Unavailable

92191E

TUBE,TANK-SEPARATOR,BLUE

K9219-11696

Unavailable
