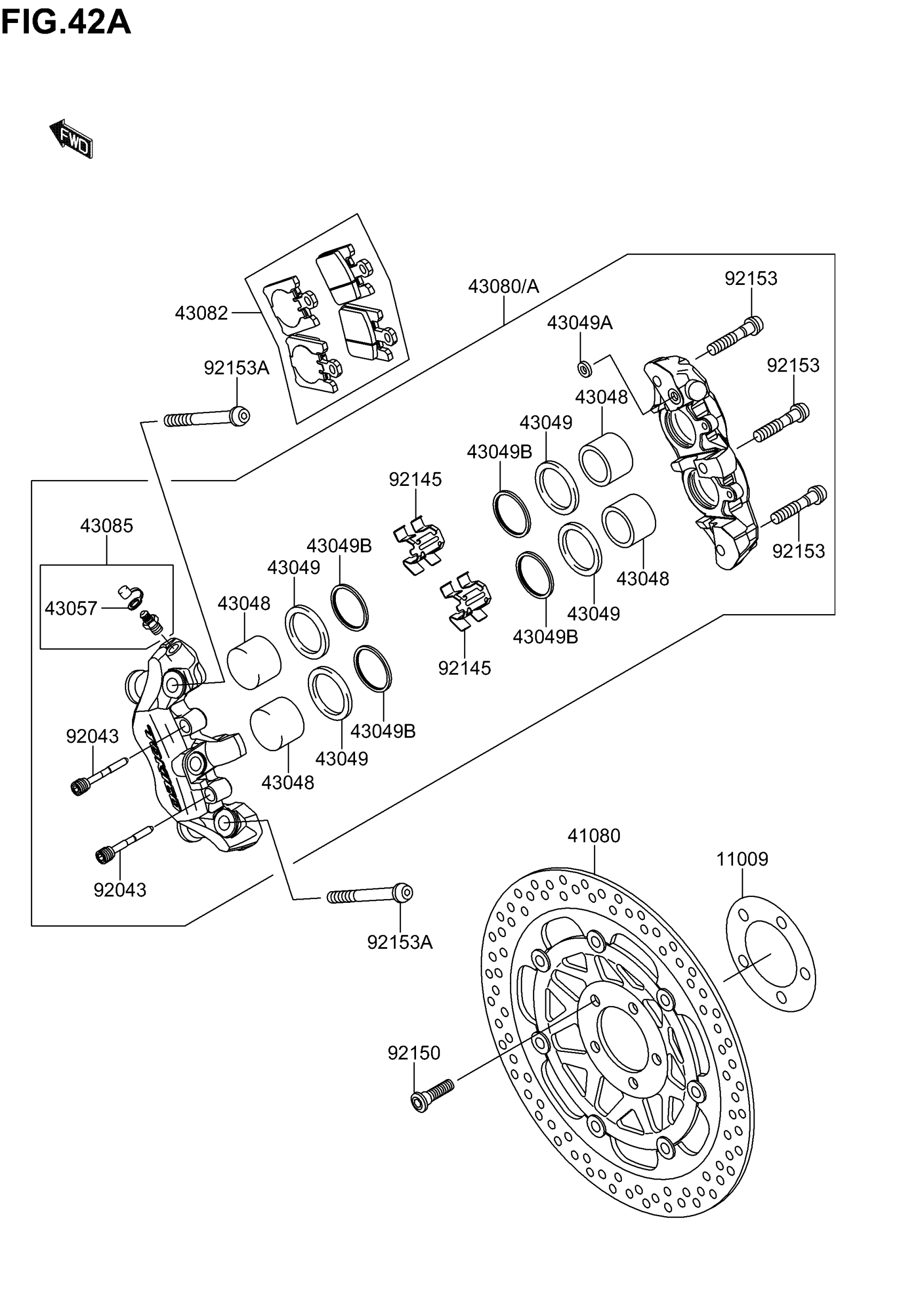

Suzuki VZ1600 (CA) (2005) FRONT BRAKE(K5) Diagram

#

Description

Price

11009

GASKET,DISC PLATE

K1100-91754

Unavailable

41080

DISC,FR,HOUSING GRAY+DISK GRAY

K4108-00072-675

Unavailable

43048

PISTON-CALIPER

K4304-80004

Unavailable

43049

PACKING,PISTON

K4304-90003

Unavailable

43049A

PACKING,SEAL,6.5X11.5X2.2

K4304-91004

Unavailable

43049B

PACKING,WIPER

K4304-91107

Unavailable

43057

CAP-BREATHER

KK430-57003

Unavailable

43080

CALIPER-SUB-ASSY,FR,LH,SILVER

KK430-80001-7GN

Unavailable

43080A

CALIPER-SUB-ASSY,FR,RH,SILVER

KK430-80001-8GN

Unavailable

43082

PAD-ASSY-BRAKE

K4308-20031

Unavailable

43085

BREATHER-BRAKE

KK430-85001

Unavailable

92043

PIN,PAD

K9204-31709

Unavailable

92145

SPRING,PAD

K9214-51568

Unavailable

92150

BOLT,SOCKET,8X30

K9215-01771

Unavailable

92153

BOLT,SOCKET,8X40

K9215-30360

Unavailable

92153A

BOLT,SOCKET,10X This part replaces K9215-30577.

K9215-31531

Unavailable
