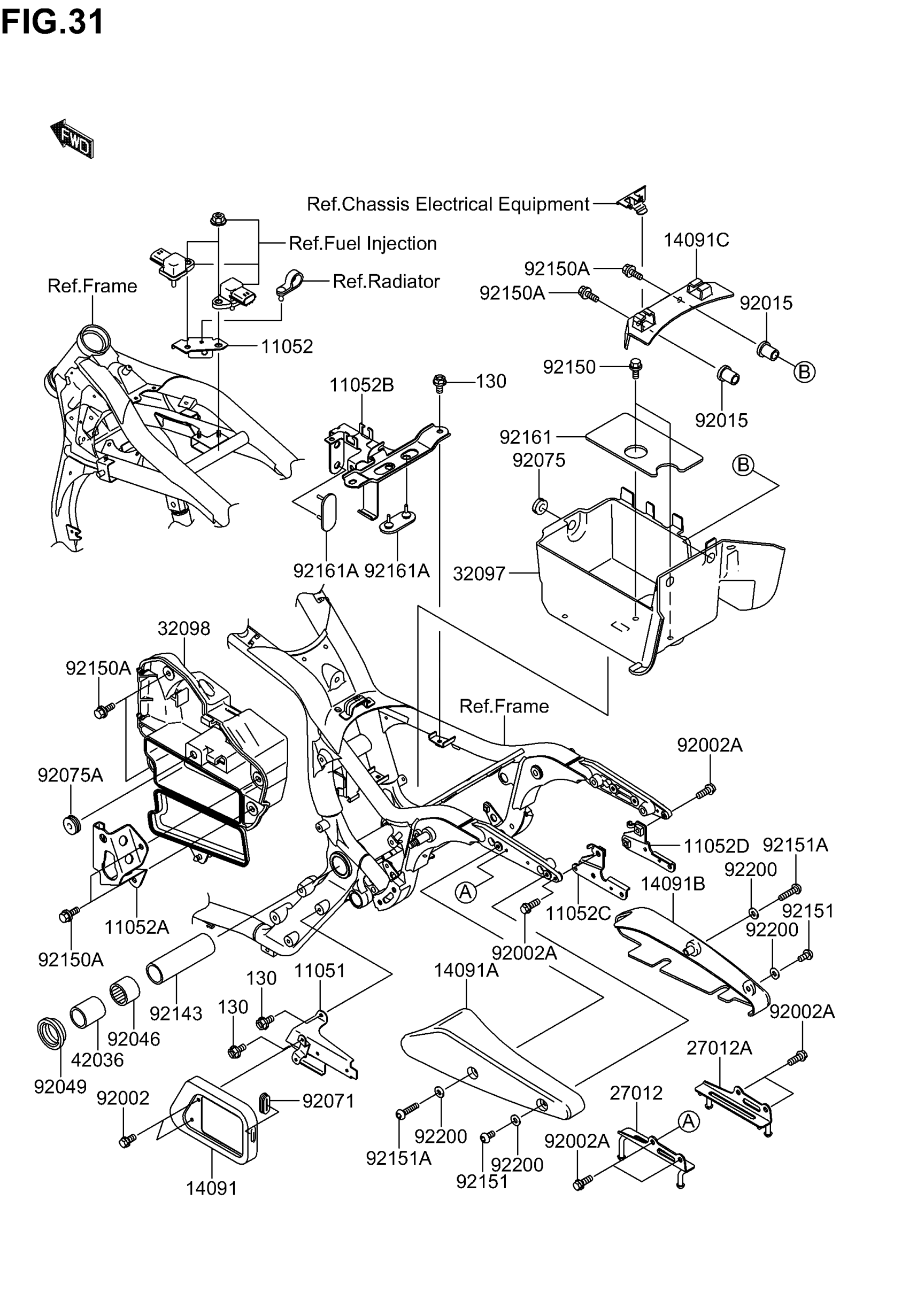

Suzuki VZ1600 (CA) (2005) FRAME FITTING Diagram

#

Description

Price

11051

BRACKET,REGULATOR

K1105-11163

Unavailable

11052

BRACKET

K1105-21071

Unavailable

11052A

BRACKET,SIDE COVER LOCK

K1105-21234

Unavailable

11052B

BRACKET,BATTERY BAND

K1105-21281

Unavailable

11052C

BRACKET,HELMET LOCK,LH

K1105-21282

Unavailable

11052D

BRACKET,HELMET LOCK,RH

K1105-21283

Unavailable

14091

COVER,REGULATOR

K1409-11079

Unavailable

14091A

COVER,RR FENDER,LH

K1409-11361

Unavailable

14091B

COVER,RR FENDER,RH

K1409-11363

Unavailable

14091C

COVER,BATTERY CASE

K1409-11373

Unavailable

27012

HOOK,BUNGEE CORD,LH

K2701-21609

Unavailable

27012A

HOOK,BUNGEE CORD,RH

K2701-21610

Unavailable

32097

CASE-BATTERY

K3209-71192

Unavailable

32098

CASE-TOOL

K3209-81137

Unavailable

42036

SLEEVE,L=45

K4203-61330

Unavailable

92002

BOLT,6X12

K9200-21569

Unavailable

92002A

BOLT,6X16

K9200-21570

Unavailable

92015

NUT

K9201-51700

Unavailable

92046

BEARING-NEEDLE,BM2824

K9204-61202

Unavailable

92049

SEAL-OIL

K9204-91181

Unavailable

92071

GROMMET

K9207-10013

Unavailable

92075

DAMPER

K9207-51067

Unavailable

92075A

DAMPER

K9207-51629

Unavailable

92143

COLLAR,20.2X27X90

K9214-31878

Unavailable

92150

BOLT,6X14

K9215-01133

Unavailable

92150A

BOLT,6X16

K9215-01198

Unavailable

92151

BOLT,SOCKET,6X12

K9215-11940

Unavailable

92151A

BOLT,SOCKET,6X25

K9215-11945

Unavailable

92161

DAMPER,BATTERY

K9216-11097

Unavailable

92161A

DAMPER,BATTERY BAND

K9216-11214

Unavailable

92200

WASHER,6.5X14.5X1.5

K9220-03775

Unavailable

130

BOLT-FLANGED

KK130-J0612

Unavailable
