FOOTREST

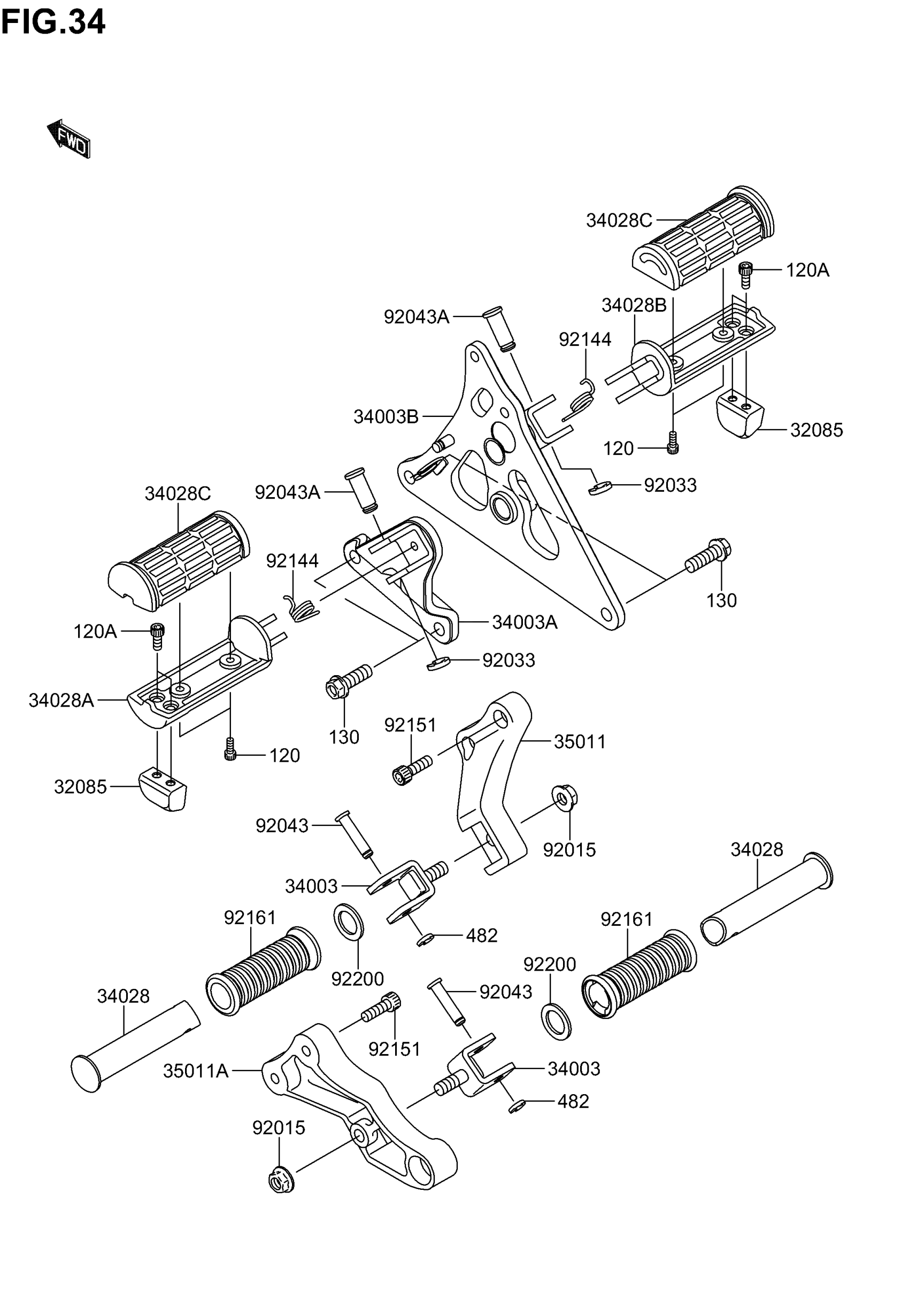

Suzuki VZ1600 (CA) (2005) FOOTREST Diagram
#
Description
Price
32085
STOPPER,BANK SENSOR
K3208-51534
Unavailable
34003
HOLDER-STEP,RR
K3400-30015
Unavailable
34003A
HOLDER STEP,FR, This part replaces K3400-31506.
K3400-30036
Unavailable
34003B
HOLDER-STEP,FR,RH
K3400-31507
Unavailable
34028
STEP,RR
K3402-80017
Unavailable
34028A
STEP,FR,LH
K3402-81519
Unavailable
34028B
STEP,FR,RH
K3402-81520
Unavailable
34028C
STEP,RUBBER
K3402-81522
Unavailable
35011
STAY,REAR STEP,LH
K3501-11770
Unavailable
35011A
STAY,REAR STEP,RH
K3501-11922
Unavailable
92033
RING-SNAP,10MM
K9203-31166
Unavailable
92043
PIN,8X36.5
K9204-31339
Unavailable
92043A
PIN,12X37
K9204-31358
Unavailable
92144
SPRING,STEP RETURN
K9214-41126
Unavailable
92151
BOLT,SOCKET,8X25
K9215-11525
Unavailable
92161
DAMPER,STEP
K9216-10232
Unavailable
92200
WASHER,22.5X33X2.3
K9220-01482
Unavailable
120
BOLT-SOCKET This part replaces KK120-S0512.
K120C-B0512
Unavailable
120A
NO DESCRIPTION AVAILABLE This part replaces KK120-S0614.
K120C-B0614
Unavailable
130
BOLT-FLANGED,10 This part replaces KK130-S1030.
K130C-B1030
Unavailable
482
CIRCLIP-TYPE-E This part replaces KK482-L7000.
K482E-A7000
Unavailable
