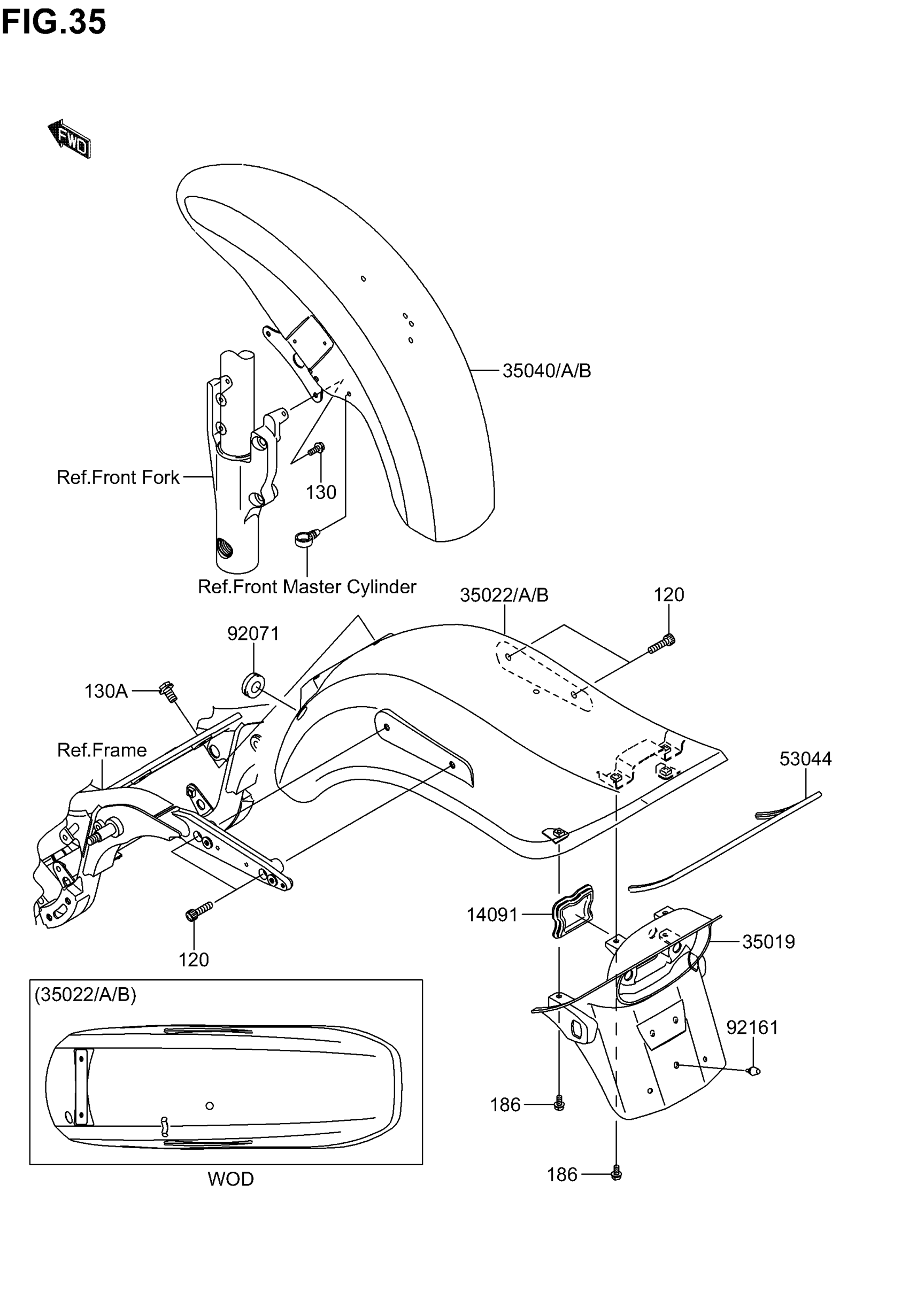

Suzuki VZ1600 (CA) (2005) FENDER Diagram

#

Description
Price

14091

COVER

K1409-10125

Unavailable

35019

FLAP

K3501-90019

Unavailable

35022

FENDER-COMP-REAR,M.GRAYSTONE | K5

KK350-22001-6C4

Unavailable

35022A

FENDER-COMP-REAR,L.P.BLUE | K4

KK350-22001-6M4

Unavailable

35022B

FENDER-COMP-REAR,M.S.BLACK

K3502-20016-660

Unavailable

35040

FENDER-COMP-FRONT,M.GRAYSTONE | K5

KK350-40105-3C4

Unavailable

35040A

FENDER-COMP-FRONT,L.P.BLUE | K4

KK350-40105-3M4

Unavailable

35040B

FENDER-COMP-FRONT,M.S.BLACK

K3504-01053-660

Unavailable

53044

TRIM,L=578

K5304-40002

Unavailable

92071

GROMMET

K9207-11265

Unavailable

92161

DAMPER

K9216-10091

Unavailable

120

BOLT-SOCKET,8X3 This part replaces KK120-S0830.

K120C-B0830

Unavailable

130

BOLT-FLANGED,6X16,BLACK

KK130-J0616

Unavailable

130A

BOLT-FLANGED,8X16,BLACK

KK130-J0816

Unavailable

186

NO DESCRIPTION AVAILABLE This part replaces KK186-J0614.

K186B-B0614

Unavailable
