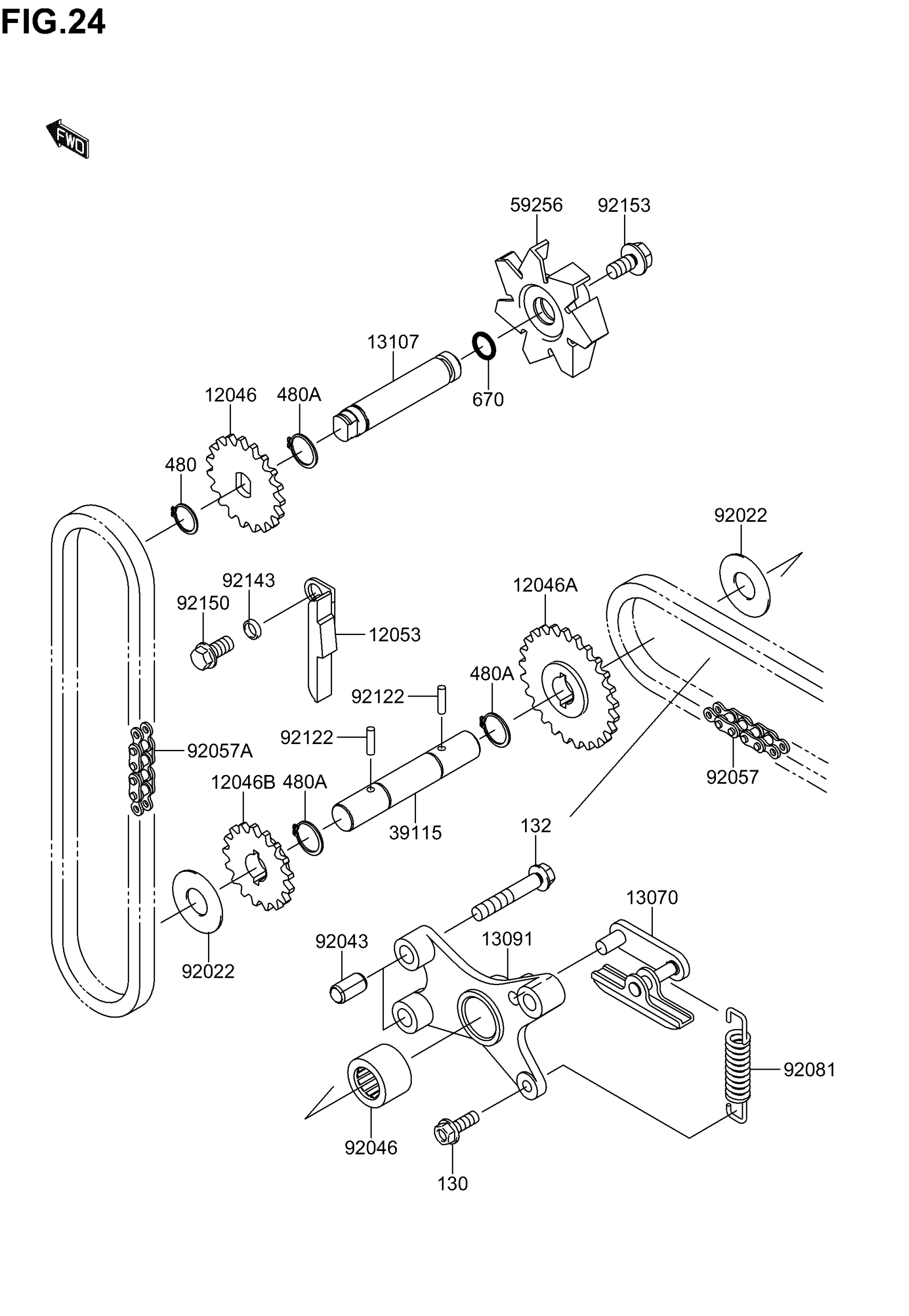

Suzuki VZ1600 (2005) WATER PUMP Diagram

#

Description

Price

12046

SPROCKET,OIL PUMP,19T

K1204-61079

Unavailable

12046A

SPROCKET,CRANK IDLER,25T

K1204-61096

Unavailable

12046B

SPROCKET,IDLER,17T

K1204-61097

Unavailable

12053

GUIDE-CHAIN

K1205-31227

Unavailable

13070

GUIDE

K1307-01178

Unavailable

13091

HOLDER

K1309-11471

Unavailable

13107

SHAFT,IMPELLER

K1310-71196

Unavailable

39115

SHAFT-IDLER

K3911-51058

Unavailable

59256

IMPELLER

K5925-61066

Unavailable

92022

WASHER,12X27.5X1.0

K9202-21852

Unavailable

92043

PIN,6.2X8X14

K9204-31263

$1.78

92046

BEARING-NEEDLE,HK1212

K9204-61163

Unavailable

92057

CHAIN,BS25HX46L

K9205-71230

Unavailable

92057A

CHAIN,BS25HX44L

K9205-71231

Unavailable

92081

SPRING,IDLER SHAFT

K9208-11791

Unavailable

92122

ROLLER,3X15.8

K9212-21126

Unavailable

92143

COLLAR

K9214-31123

Unavailable

92150

BOLT-FLANGED-SM This part replaces K9215-01599.

K132B-A0612

$1.49

92153

BOLT,6X12

K9215-30009

Unavailable

130

BOLT-FLANGED

KK130-D0514

Unavailable

132

BOLT,FLANGED,SM This part replaces KK132-V0635.

K132B-A0635

Unavailable

480

CIRCLIP-TYPE-C,11MM

KK480-J1100

Unavailable

480A

CIRCLIP-TYPE-C,12MM

KK480-J1200

Unavailable

670

O RING,9MM

KK670-D1509

$3.92
