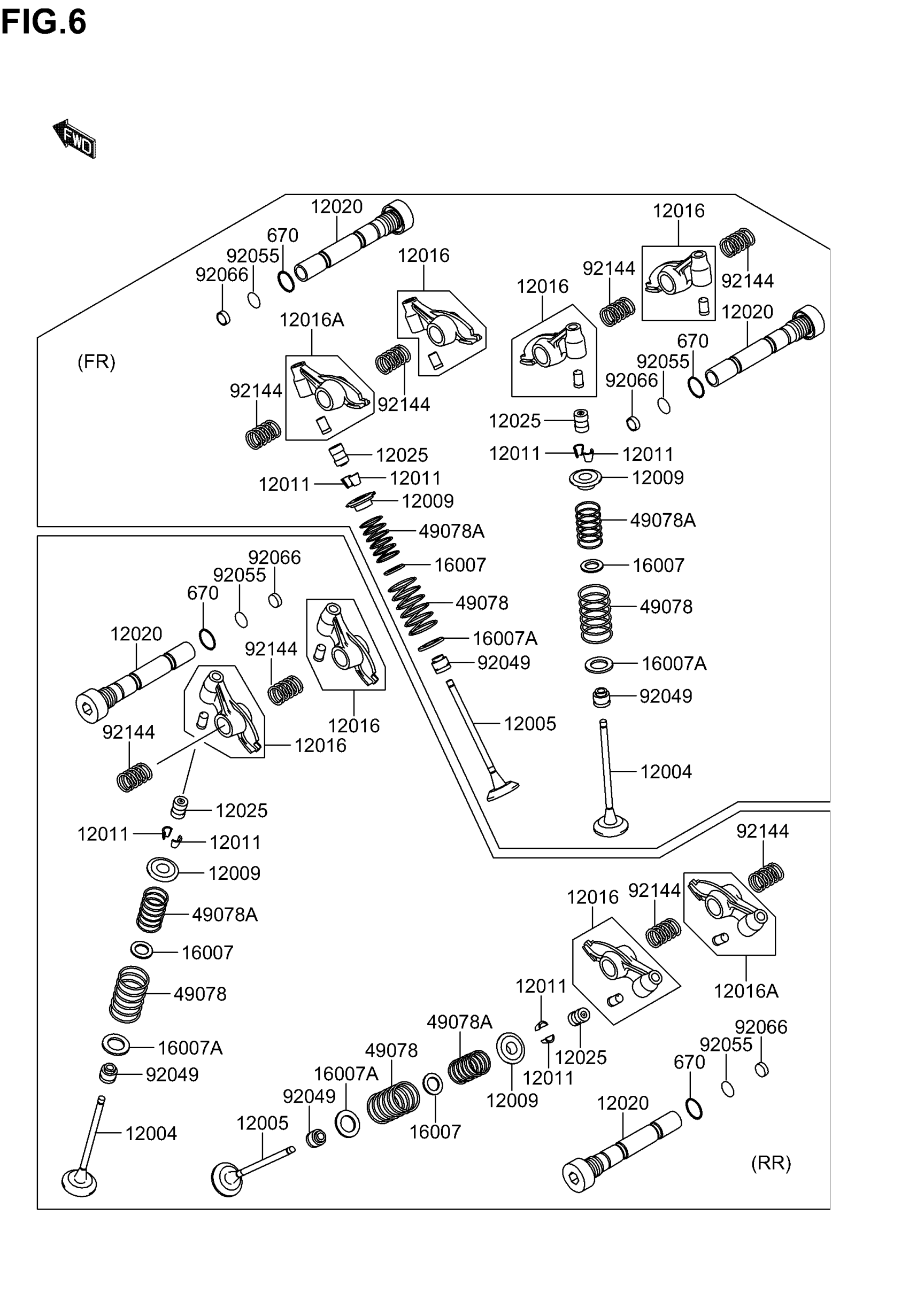

Suzuki VZ1600 (2005) VALVE Diagram

#

Description

Price

12004

VALVE-INTAKE

K1200-41153

Unavailable

12005

VALVE-EXHAUST

K1200-51317

Unavailable

12009

RETAINER-VALVE SPRING

KK120-09005

Unavailable

12011

COLLET,RETAINER

KK120-11004

Unavailable

12016

ARM-ROCKER

K1201-61112

Unavailable

12016A

ARM-ROCKER

K1201-61113

Unavailable

12020

SHAFT-ROCKER

K1202-01061

Unavailable

12025

ADJUSTER-LASH

K1202-51053

Unavailable

16007

SEAT-SPRING,12X20X0.5

K1600-71031

Unavailable

16007A

SEAT-SPRING,21X29.5X0.5

K1600-71137

Unavailable

49078

SPRING-ENGINE VALVE,OUTER

K4907-81157

Unavailable

49078A

SPRING-ENGINE VALVE,INNER

K4907-81158

Unavailable

92049

SEAL-OIL,RV37129.5

KK920-49016

Unavailable

92055

RING-O,12X1.5

KK920-55025

Unavailable

92066

PLUG

K9206-61198

Unavailable

92144

SPRING,ROCKER ARM

K9214-41221

Unavailable

670

O RING,20MM

KK670-B2020

Unavailable
