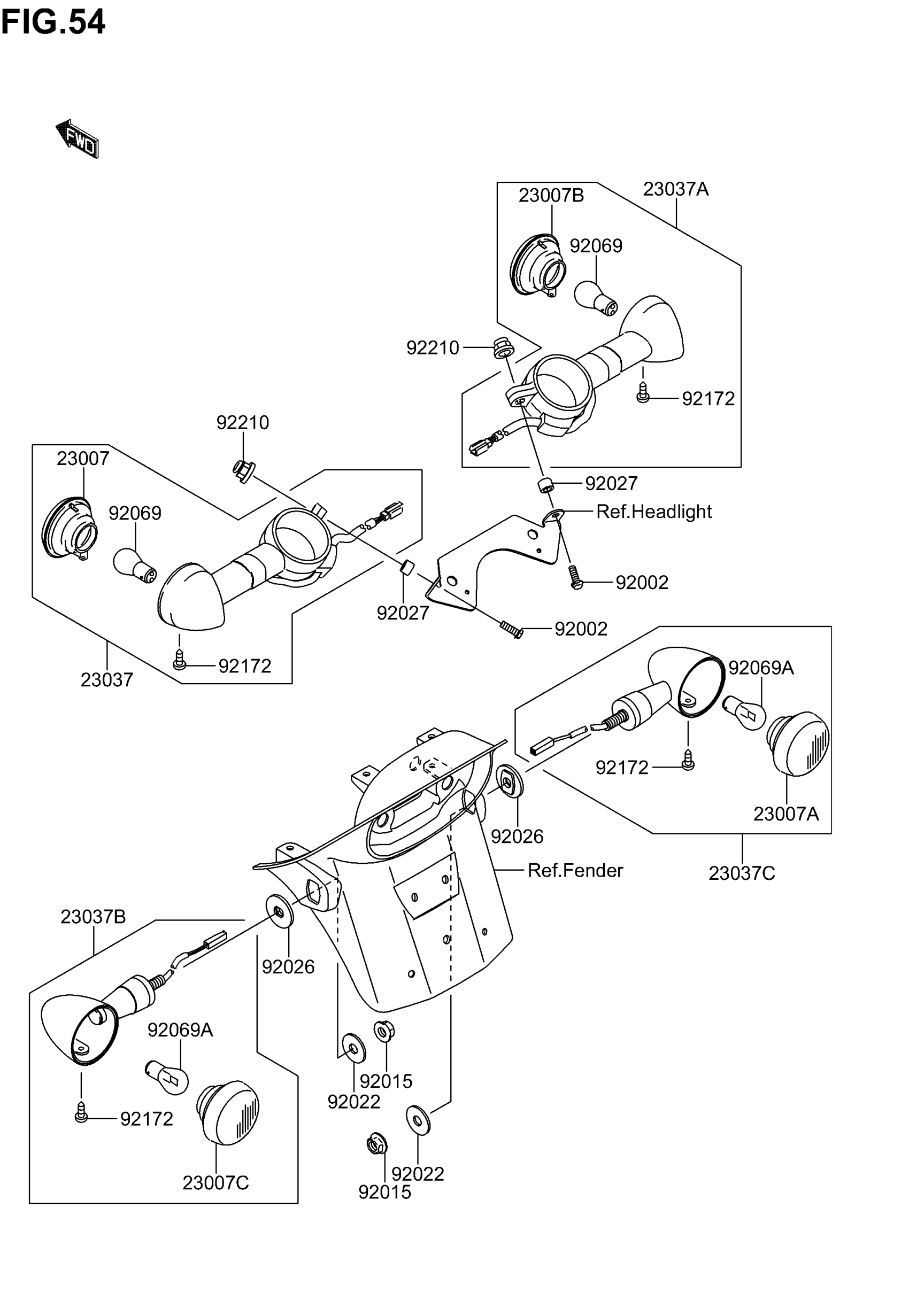

Suzuki VZ1600 (2005) TURN SIGNAL Diagram

#

Description

Price

23007

LENS-COMP,SIGNAL LAMP,FR

K2300-70008

Unavailable

23007A

LENS-COMP,SIGNAL LAMP,RR

K2300-70009

Unavailable

23007B

LENS-COMP,SIGNAL LAMP,FR

K2300-70026

Unavailable

23007C

LENS-COMP,SIGNAL LAMP,RR

K2300-70027

$15.35

23037

LAMP-ASSY-SIGNAL,FR,LH

K2303-70010

Unavailable

23037A

LAMP-ASSY-SIGNAL,FR,RH

K2303-70011

Unavailable

23037B

LAMP-ASSY-SIGNAL,RR,LH

K2303-70012

Unavailable

23037C

LAMP-ASSY-SIGNAL,RR,RH

K2303-70013

Unavailable

92002

BOLT,6X20

K9200-21607

Unavailable

92015

NUT,10MM

K9201-51356

Unavailable

92022

WASHER,10.5X30X2.3,BLACK

K9202-21302

Unavailable

92026

SPACER

K9202-60030

Unavailable

92027

COLLAR,6.8X10X12

KK920-27162

Unavailable

92069

BULB,12V 21/5W

KK920-69063

Unavailable

92172

SCREW,TAPPING,4X10

K9217-20118

Unavailable

92210

NUT,CAP,6MM

K9221-00141

Unavailable
