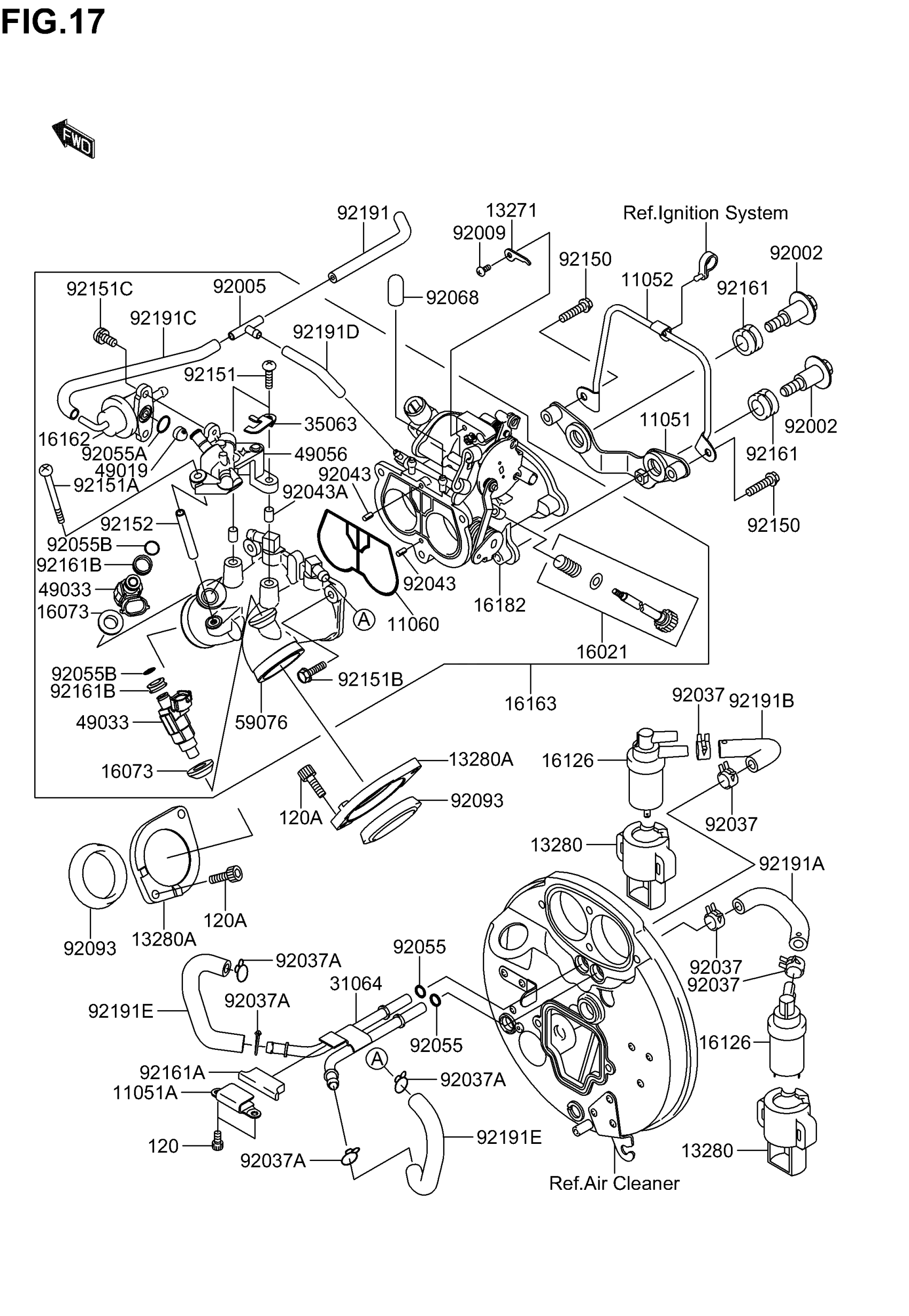

Suzuki VZ1600 (2005) THROTTLE Diagram

#

Description

Price

11051

BRACKET

K1105-11333

Unavailable

11051A

BRACKET

K1105-11345

Unavailable

11052

BRACKET,HIGH TENSHION CORD

K1105-21067

Unavailable

11060

GASKET,THROTTLE BODY

K1106-01928

Unavailable

13271

PLATE,STARTER CABLE

K1327-11314

Unavailable

13280

HOLDER

K1328-01139

Unavailable

13280A

HOLDER

K1328-01154

Unavailable

16021

SCREW-THROTTLE STOP

K1602-11227

Unavailable

16073

INSULATOR

K1607-31119

Unavailable

16126

VALVE

K1612-61372

Unavailable

16162

REGULATOR-FUEL

K1616-21054

Unavailable

16163

THROTTLE-ASSY

K1616-31113

Unavailable

16182

BODY-THROTTLE

K1618-21003

Unavailable

31064

PIPE-COMP

K3106-41242

Unavailable

35063

STAY

K3506-31148

Unavailable

49019

FILTER-FUEL,STRAINER

K4901-93707

Unavailable

49033

NOZZLE-INJECTION

K4903-31057

Unavailable

49056

PIPE-INJECTION

K4905-61054

Unavailable

59076

MANIFOLD-INTAKE

K5907-61113

Unavailable

92002

BOLT,M6X14X13.5

K9200-21595

Unavailable

92005

FITTING

K9200-51366

Unavailable

92009

SCREW,4X6

K9200-91903

Unavailable

92037

CLAMP

K9203-71181

Unavailable

92037A

CLAMP,FUEL TUBE

K9203-71271

Unavailable

92043

PIN,THROTTLE BODY

K9204-31600

Unavailable

92043A

PIN,DELIVERY PIPE

K9204-31601

Unavailable

92055

RING-O,7.8X3.5

KK920-55029

Unavailable

92055A

RING-O,FUEL REGULATOR

K9205-51620

Unavailable

92055B

RING-O,INJECTION NOZZLE

K9205-51622

Unavailable

92068

PLUG,12X25

KK920-68006

$3.33

92093

SEAL This part replaces K9209-31484.

K9209-30072

Unavailable

92150

BOLT,6X25

K9215-01779

Unavailable

92151

BOLT,5X20

K9215-11585

Unavailable

92151A

BOLT,5X75

K9215-11586

Unavailable

92151B

BOLT,THROTTLE BODY

K9215-11587

Unavailable

92151C

BOLT,6X12

K9215-11588

Unavailable

92152

COLLAR,DELIVERY PIPE

K9215-21206

Unavailable

92161

DAMPER

K9216-11058

Unavailable

92161A

DAMPER

K9216-11062

Unavailable

92161B

DAMPER,INJECTION NOZZLE

K9216-11083

Unavailable

92191

TUBE,THROTTLE-BOOST

K9219-11298

Unavailable

92191A

TUBE,REAR VALVE,RED

K9219-11367

Unavailable

92191B

TUBE,FRONT VALVE,BLUE

K9219-11368

Unavailable

92191C

TUBE,L=130

K9219-11402

Unavailable

92191D

TUBE,L=55

K9219-11403

Unavailable

92191E

TUBE

K9219-11608

Unavailable

120

BOLT-SOCKET

KK120-S0510

Unavailable

120A

BOLT-SOCKET

KK120-Z0620

Unavailable
