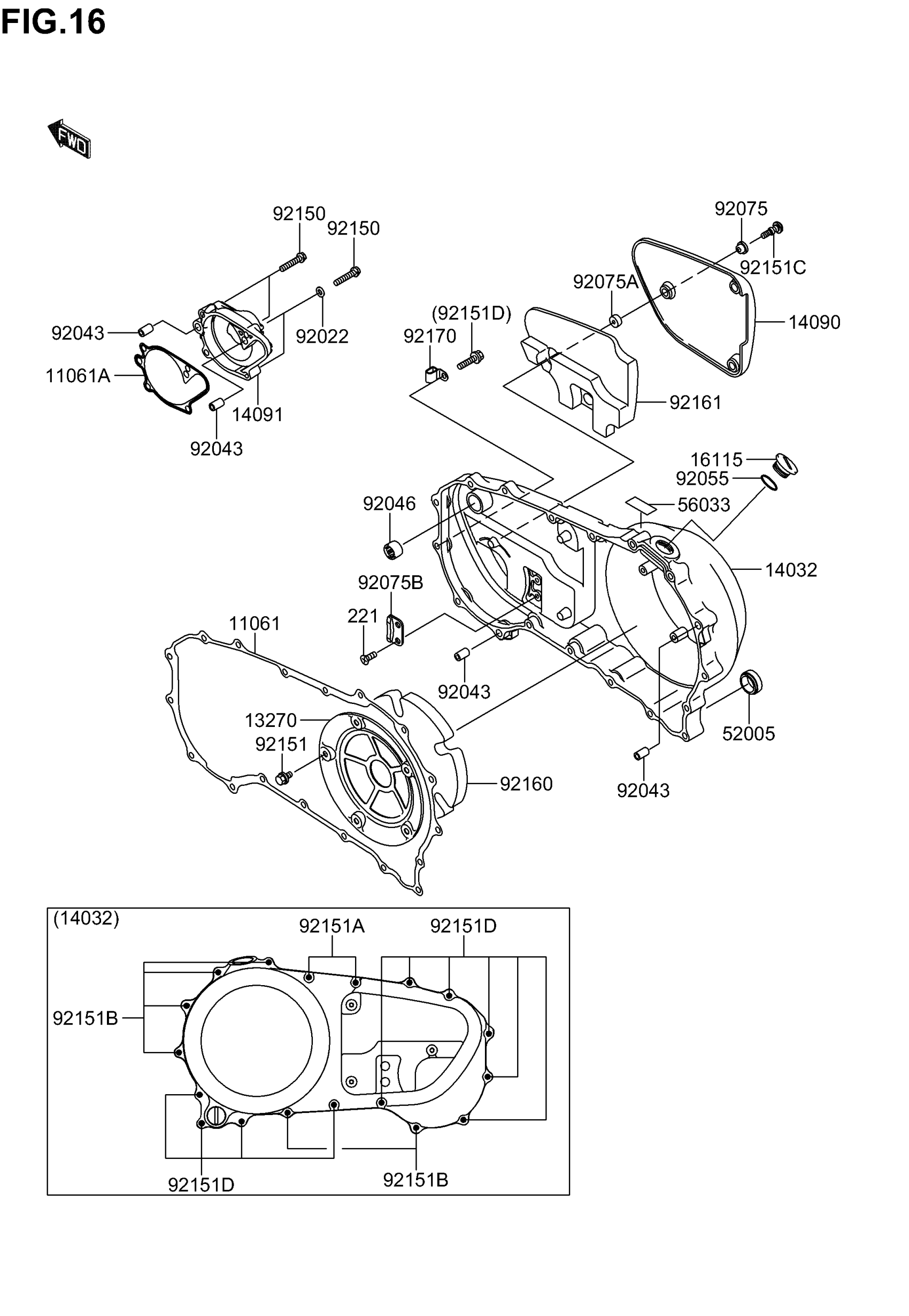

Suzuki VZ1600 (2005) RIGHT ENGINE COVER Diagram

#

Description
Price

11061

GASKET,CLUTCH COVER

K1106-11081

$31.45

11061A

GASKET,WATER PUMP COVER

K1106-11172

Unavailable

13270

PLATE

K1327-01592

Unavailable

14032

COVER-CLUTCH

K1403-21493

Unavailable

14090

COVER,CLUTCH OUTER

K1409-01678

Unavailable

14091

COVER,WATER PUMP

K1409-10124

Unavailable

16115

CAP-OIL FILLER

K1611-51063

Unavailable

52005

GAUGE,OIL LEVEL

K5200-51009

$16.52

56033

LABEL-MANUAL,OIL CAPACITY

K5603-31156

Unavailable

11061B

GASKET

K1106-10107

Unavailable

92043

PIN,6.2X8X14

K9204-31263

$1.78

92046

BEARING-NEEDLE,HK1212

K9204-61163

Unavailable

92055

RING-O,31.7X2.4

KK920-55049

$2.96

92075

DAMPER

K9207-51855

Unavailable

92075A

DAMPER

K9207-51856

Unavailable

92075B

DAMPER

K9207-51905

Unavailable

92150

BOLT,6X30

K9215-01021

Unavailable

92151

BOLT,6X10

K9215-11064

Unavailable

92151A

BOLT,6X30 This part replaces K9215-11134.

K132B-C0630

$1.49

92151B

BOLT,6X35

K9215-11135

Unavailable

92151C

BOLT,SOCKET,M6X22.5

K9215-11273

Unavailable

92151D

BOLT,6X25

K9215-11930

$2.23

92160

DAMPER

K9216-01716

Unavailable

92161

DAMPER

K9216-11139

Unavailable

92170

CLAMP

K9217-01804

Unavailable

221

SCREW-CSK-CROS,6X12

KK221-B0612

Unavailable
