RADIATOR

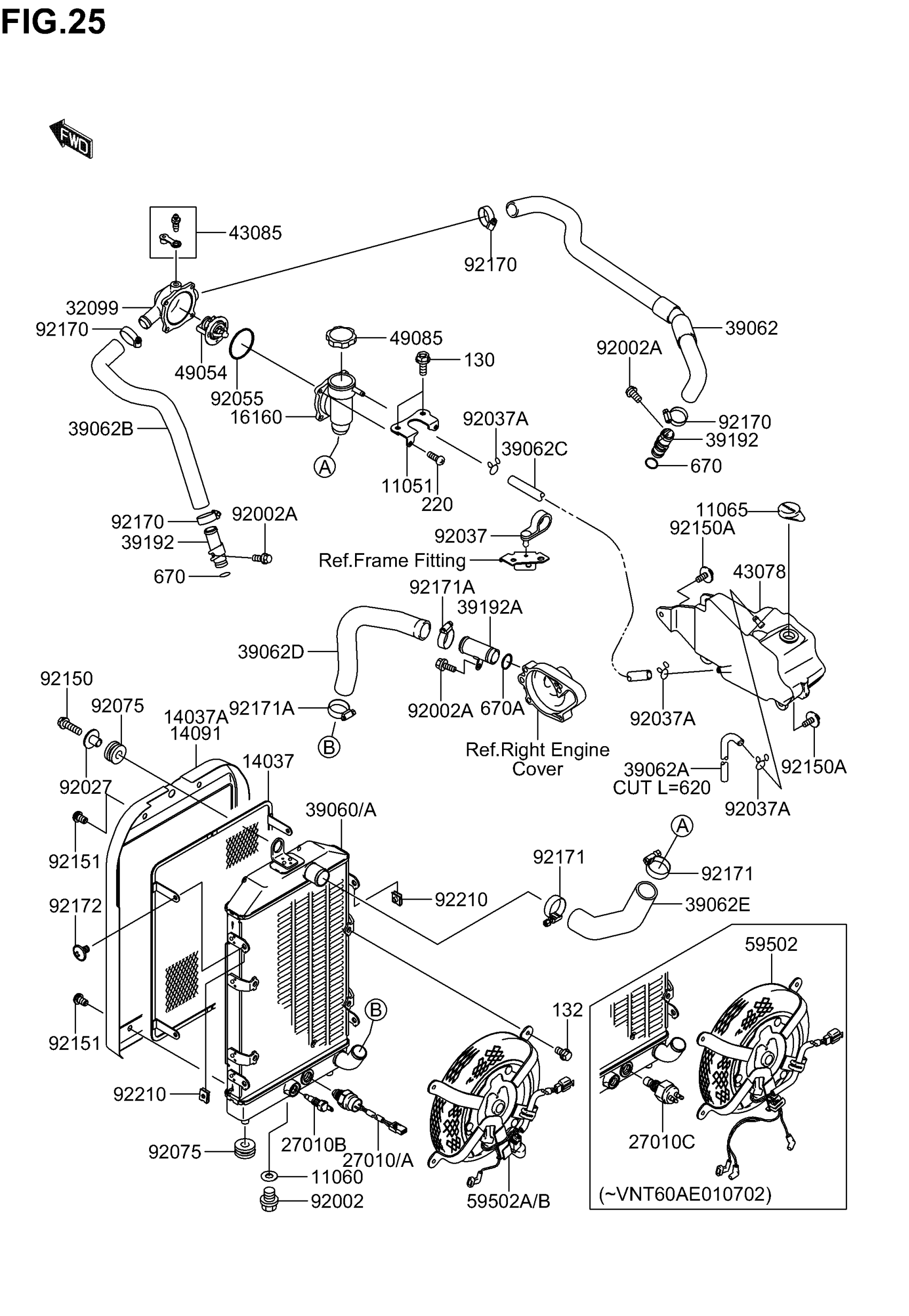

Suzuki VZ1600 (2005) RADIATOR Diagram
#
11051
BRACKET,THERMOSTAT CASE
K1105-11535
Unavailable
11060
GASKET,DRAIN PLUG
K1106-01767
Unavailable
11065
CAP,COOLANT
K1106-51093
Unavailable
14037
SCREEN,INNER
K1403-70014
Unavailable
14037A
NO DESCRIPTION AVAILABLE | 04 MODEL This part replaces K1403-71301.
K1409-10428
Unavailable
14091
NO DESCRIPTION AVAILABLE | 05 MODEL This part replaces K1409-10400.
K1409-10428
Unavailable
16160
BODY
K1616-00038
Unavailable
27010
SWITCH,FAN | 05 MODEL
K2701-00024
Unavailable
27010A
SWITCH,FAN | 04 MODEL !VNT60AE010703
K2701-00024
Unavailable
27010B
SWITCH,WARNING
K2701-01305
Unavailable
27010C
SWITCH,FAN | 04 MODEL ?VNT60AE010702
K2701-01364
Unavailable
32099
CASE,THERMOSTAT
K3209-91201
Unavailable
39060
RADIATOR | 04 MODEL This part replaces K3906-00002.
K3906-00019
Unavailable
39060A
RADIATOR | 05 MODEL
K3906-00019
Unavailable
39062
HOSE-COOLING,THERMO-RR CASE
K3906-20030
Unavailable
39062A
HOSE-COOLING,5.5X10.5X1500
K3906-21144
Unavailable
39062B
HOSE-COOLING,FR HEAD-THERMO
K3906-21785
Unavailable
39062C
HOSE-COOLING,THERMO-RESER
K3906-21796
Unavailable
39062D
HOSE-COOLING,RADIATOR-PUMP
K3906-21850
Unavailable
39062E
HOSE-COOLING,THERMO-RADIATOR
K3906-21892
Unavailable
39192
PIPE-WATER
K3919-21094
Unavailable
39192A
PIPE-WATER
K3919-21096
Unavailable
43078
RESERVOIR
K4307-81180
Unavailable
43085
BREATHER
KK430-85001
Unavailable
49054
THERMOSTAT This part replaces K4905-41067.
K4905-40004
Unavailable
49085
CAP-ASSY-PRESSURE
K4908-50002
Unavailable
59502
FAN-ASSY | 04 MODEL ?VNT60AE010702
K5950-20004
Unavailable
59502A
FAN-ASSY | 05 MODEL
K5950-20013
Unavailable
59502B
FAN-ASSY | 04 MODEL !VNT60AE010703
K5950-20013
Unavailable
92002
BOLT,FLANGED,10X10
K9200-21311
Unavailable
92002A
BOLT,6X12
K9200-21569
Unavailable
92027
COLLAR,L=13.1,BLACK
K9202-71450
Unavailable
92037
CLAMP,SPEED,L=58
K9203-71163
Unavailable
92055
RING-O,53.5X2.6
KK920-55112
Unavailable
92150
BOLT,6X16 This part replaces K9215-01010.
K9200-21570
Unavailable
92150A
BOLT,FLANGED,6X14
K9215-01504
Unavailable
92151
BOLT,6X10
K9215-11809
Unavailable
92170
CLAMP,COOLING HOSE
K9217-01032
Unavailable
92171
CLAMP
K9217-10179
Unavailable
92171A
CLAMP
K9217-10261
Unavailable
92172
SCREW,6X10
K9217-20005
Unavailable
92210
NUT
K9221-01125
Unavailable
130
BOLT-FLANGED,6X16,BLACK
KK130-J0616
Unavailable
132
BOLT-FLANGED-SMALL,6X10
KK132-J0610
Unavailable
220
SCREW-PAN-CROS,5X14
KK220-D0514
Unavailable
670
O RING,14MM
KK670-B2014
Unavailable
