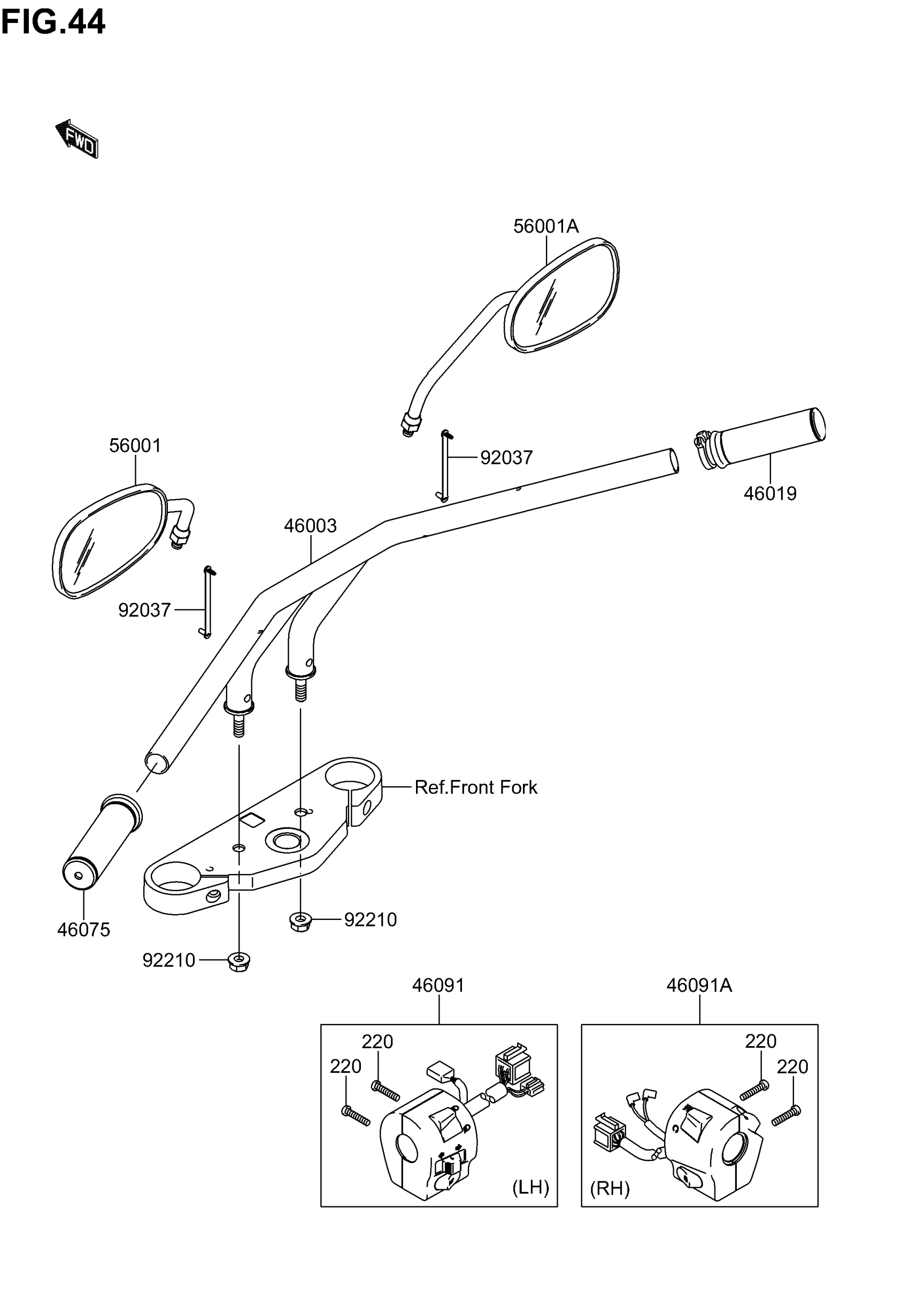

Suzuki VZ1600 (2005) HANDLEBAR Diagram

#

Description

Price

46003

HANDLE

K4600-30005

Unavailable

46019

GRIP-ASSY,THROTTLE

K4601-91123

Unavailable

46075

GRIP,LH

K4607-51212

Unavailable

46091

HOUSING-ASSY-CONTROL,LH

K4609-10026

Unavailable

46091A

HOUSING,CONTROL This part replaces K4609-10027.

K4609-10079

Unavailable

56001

MIRROR-ASSY,LH

K5600-10019

Unavailable

56001A

MIRROR-ASSY,RH

K5600-10020

Unavailable

92037

CLAMP,SPEED,L=58

K9203-71163

Unavailable

92210

NUT,LOCK,FLANGED,10MM

K9221-01139

Unavailable

220

SCREW-PAN-CROSS,5X25

KK220-R0525

Unavailable
