2005 Suzuki VZ1600 Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2005 Suzuki VZ1600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

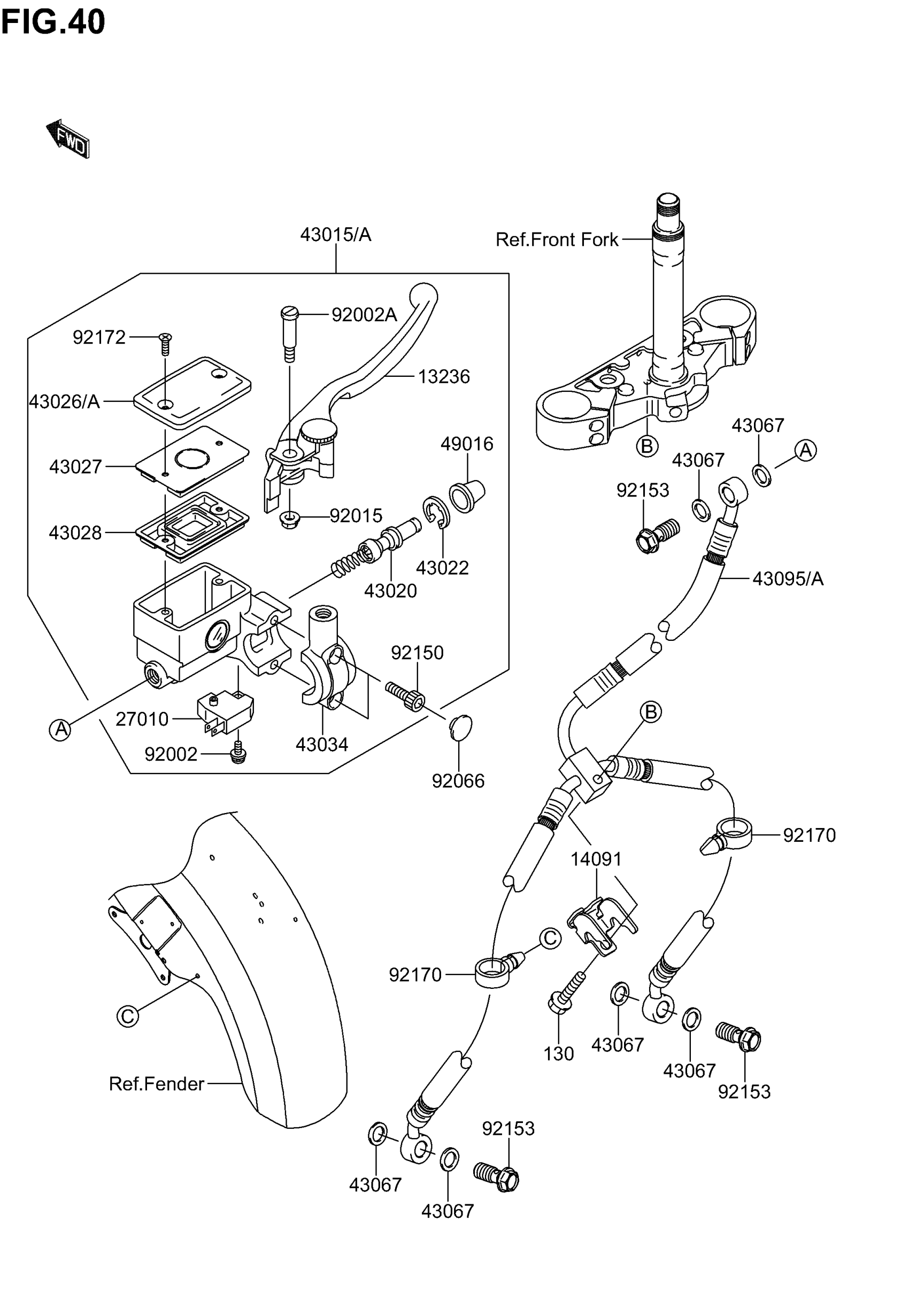

2005 Suzuki VZ1600 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13236

LEVER-COMP,FRONT BRAKE

K1323-61315

1
Out of stock

14091

COVER,3 WAY JOINT

K1409-11450

1
Out of stock

27010

SWITCH,BRAKE

K2701-00025

—
Out of stock

43015

CYLINDER-ASSY-MASTER,FR | 04 MODEL

K4301-50023

1
Out of stock

43015A

CYLINDER-ASSY-MASTER,FR | 05 MODEL

K4301-50025

1
Out of stock

43020

PISTON-COMP-BRAKE,FR

K4302-01054

1
Out of stock

43022

STOPPER-BRAKE,PISTON

K4302-21010

1
Out of stock

43026

CAP-BRAKE | 04 MODEL

K4302-60002

1
Out of stock

43026A

CAP-BRAKE | 05 MODEL

K4302-60003

1
Out of stock

43027

PLATE-DIAPHRAGM

K4302-71059

1
Out of stock

43028

DIAPHRAGM,MASTER CYLINDER

K4302-81058

1
Out of stock

43034

HOLDER-BRAKE

K4303-41172

1
Out of stock

43067

WASHER,SEAL,10. This part replaces KK430-67001.

K4909-10001

6
Out of stock

43095

NO DESCRIPTION AVAILABLE | 05 MODEL This part replaces K4309-50076.

K4309-50171

1
Out of stock

43095A

HOSE-BRAKE,FR | 04 MODEL

K4309-51324

1
Out of stock

49016

COVER-SEAL,MASTER CYLINDER

K4901-61044

1
Out of stock

92002

BOLT,SCREW,4X12

K9200-21323

1
Out of stock

92002A

BOLT,LEVER SET

K9200-21561

1
Out of stock

92015

NUT,FLANGED,6MM

K9201-51528

1
Out of stock

92066

PLUG

K9206-61301

2
Out of stock

92150

BOLT,SOCKET,6MM

K9215-01025

2
Out of stock

92153

BOLT,OIL,L=23

K9215-30627

3
Out of stock

92170

CLAMP

K9217-01067

2
Out of stock

92172

SCREW

K9217-20083

2
Out of stock

130

BOLT-FLANGED,6X30,BLACK

KK130-J0630

1
Out of stock
