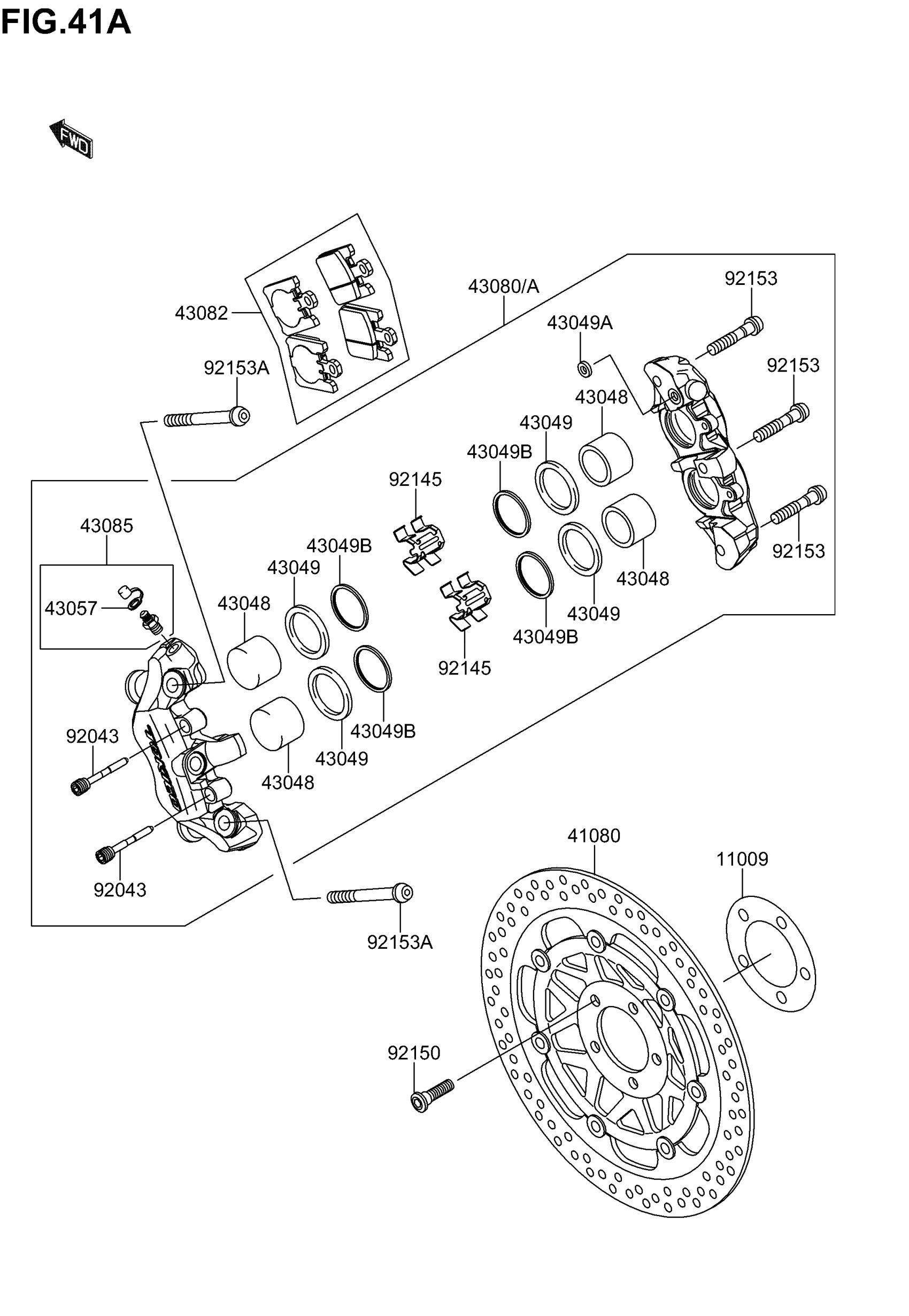

Find the part on the Front Brake diagram for your 2005 Suzuki VZ1600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki VZ1600 Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,DISC PLATE

K1100-91754

2
Out of stock

41080

DISC,FR,HOUSING GRAY+DISK GRAY

K4108-00072-675

2
Out of stock

43048

PISTON-CALIPER

K4304-80004

8
Out of stock

43049

PACKING,PISTON

K4304-90003

8
Out of stock

43049A

PACKING,SEAL,6.5X11.5X2.2

K4304-91004

2
Out of stock

43049B

PACKING,WIPER

K4304-91107

8
Out of stock

43057

CAP-BREATHER

KK430-57003

2
Out of stock

43080

CALIPER-SUB-ASSY,FR,LH,SILVER

KK430-80001-7GN

1
Out of stock

43080A

CALIPER-SUB-ASSY,FR,RH,SILVER

KK430-80001-8GN

1
Out of stock

43082

PAD-ASSY-BRAKE

K4308-20031

2
Out of stock

43085

BREATHER-BRAKE

KK430-85001

2
Out of stock

92043

PIN,PAD

K9204-31709

4
Out of stock

92145

SPRING,PAD

K9214-51568

4
Out of stock

92150

BOLT,SOCKET,8X30

K9215-01771

10
Out of stock

92153

BOLT,SOCKET,8X40

K9215-30360

6
Out of stock

92153A

BOLT,SOCKET,10X This part replaces K9215-30577.

K9215-31531

4
Out of stock
