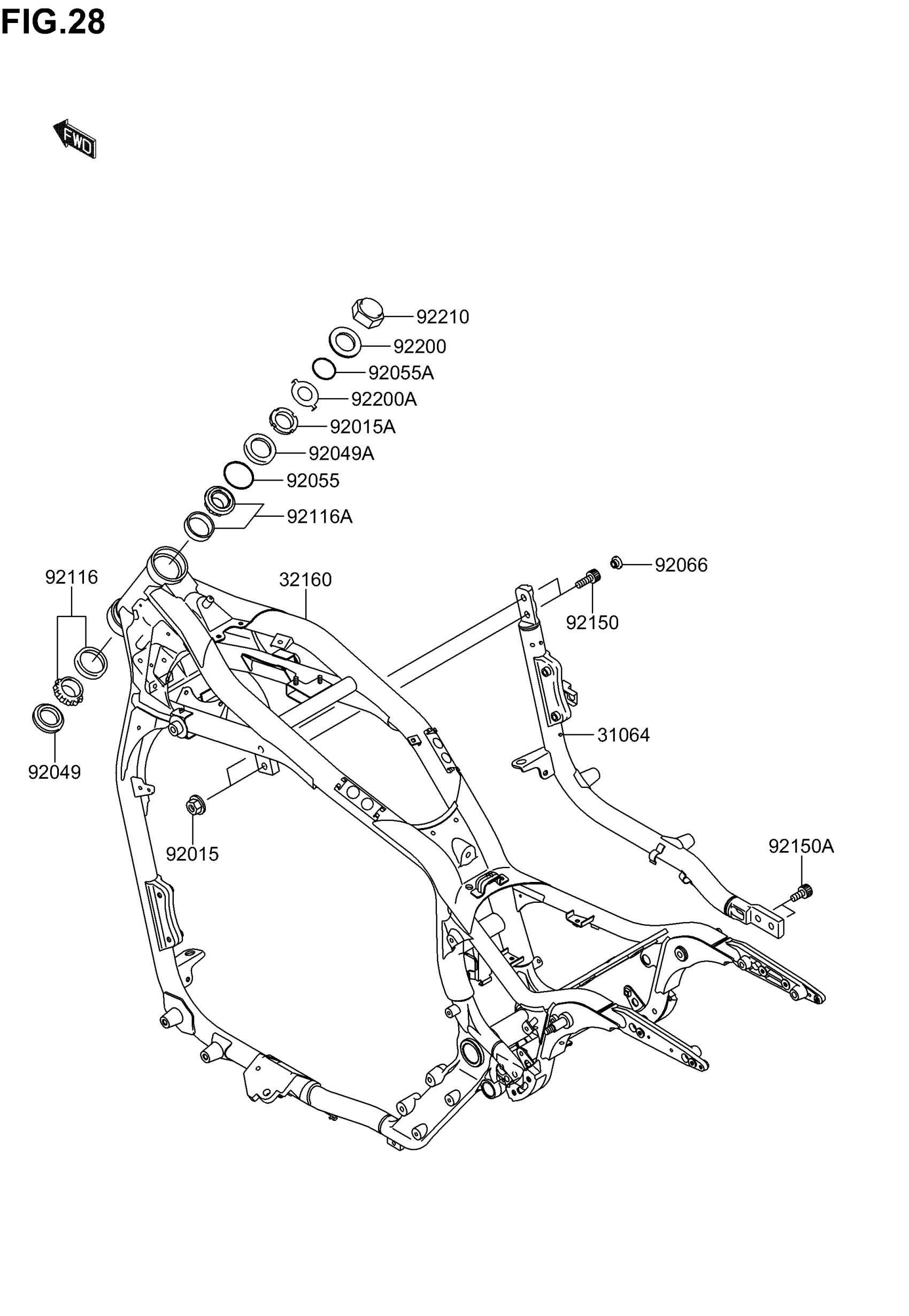

Suzuki VZ1600 (2005) FRAME Diagram

#

Description

Price

31064

PIPE-COMP,DOWN TUBE,RH

K3106-41256

Unavailable

32160

FRAME-COMP

K3216-00095

Unavailable

92015

NUT,FLANGED,10MM

K9201-51727

Unavailable

92015A

NUT,STEERING STEM,35MM

K9201-51848

Unavailable

92049

SEAL-OIL,XMHE 43 55 4J

K9204-91383

Unavailable

92049A

SEAL-OIL,MX043N2

K9204-91483

Unavailable

92055

RING-O,34.5X2.0

K9205-51452

Unavailable

92055A

RING-O,ID=24.5

K9205-51459

Unavailable

92066

PLUG

K9206-61562

Unavailable

92116

BEARING-ROLLER,32907JR-2

K9211-61072

Unavailable

92116A

BEARING-ROLLER,32907JR-3

K9211-61074

Unavailable

92150

BOLT,SOCKET,10X30

K9215-01690

Unavailable

92150A

BOLT,SOCKET,10X23

K9215-01942

Unavailable

92200

WASHER,25.5X42X2.3

K9220-00105

Unavailable

92200A

WASHER,CLAW,25.5X40X2.3

K9220-01083

Unavailable

92210

NUT,CAP,25MM

K9221-01166

Unavailable
