DRIVE SHAFT/FINAL GEAR

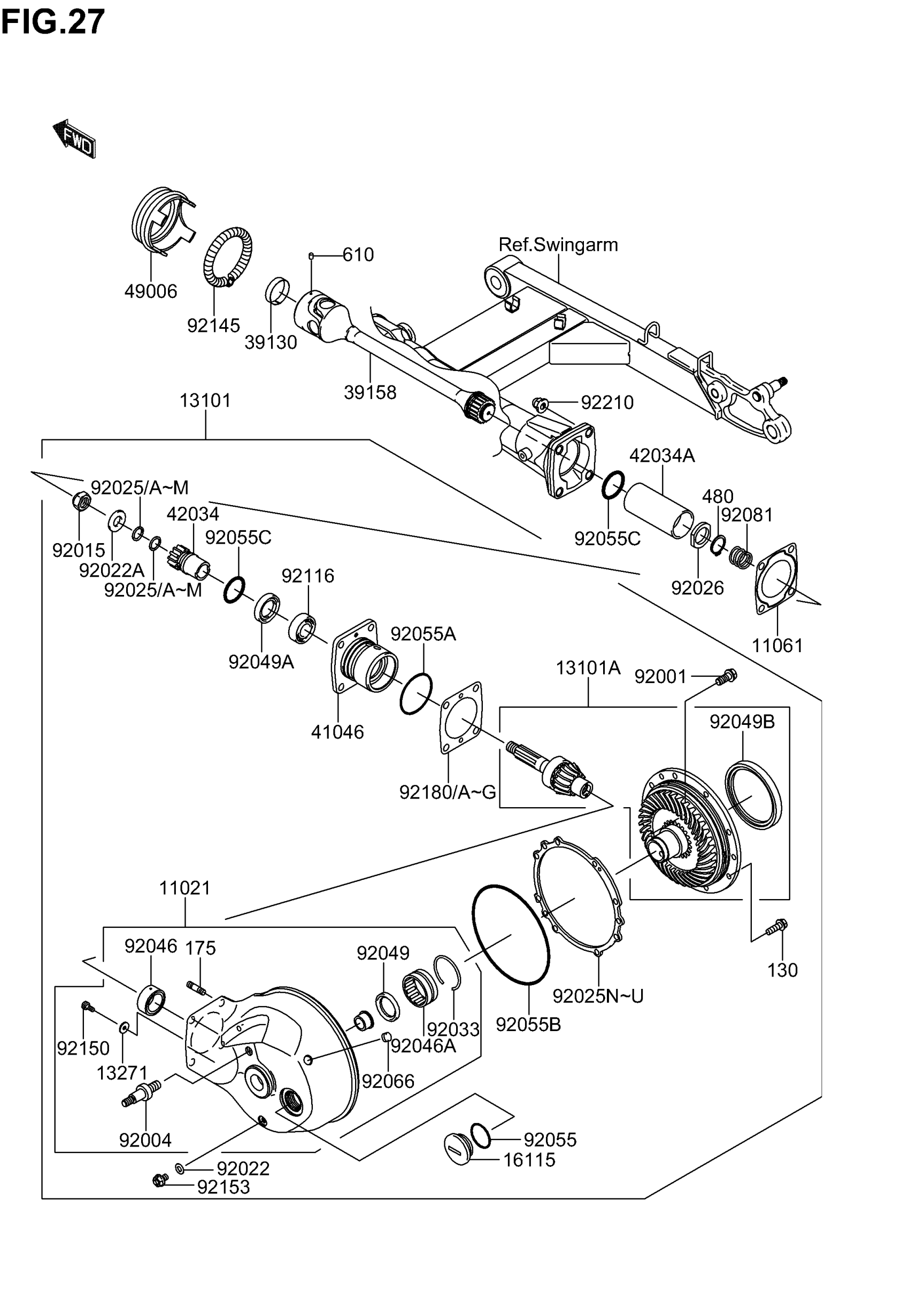

Suzuki VZ1600 (2005) DRIVE SHAFT/FINAL GEAR Diagram
#
11021
CASE-ASSY,FINAL GEAR
K1102-11133
Unavailable
11061
GASKET,RR,SWINGARM
K1106-11088
Unavailable
13101
GEAR-ASSY,FINAL
K1310-10010
Unavailable
13101A
GEAR-ASSY,BEVEL,RR
K1310-15086
Unavailable
13271
PLATE
K1327-11733
Unavailable
16115
CAP-OIL FILLER
K1611-51069
Unavailable
39130
SPRING-LEAF
K3913-01002
Unavailable
39158
SHAFT-ASSY-DRIVE,RR,SWINGARM
K3915-81112
Unavailable
41046
HOUSING-BEARING
K4104-61103
Unavailable
42034
COUPLING
K4203-41079
Unavailable
42034A
COUPLING,DRIVE SHAFT,OUTER
K4203-41178
Unavailable
49006
BOOT,DRIVE SHAFT
K4900-61226
Unavailable
92001
BOLT,10X23
K9200-11778
Unavailable
92004
STUD,RR,SHOCKABSORBER
K9200-41278
Unavailable
92015
NUT,16MM
K9201-51059
Unavailable
92022
WASHER,8.2X16X1
K9202-21086
Unavailable
92022A
WASHER,16X32X3.2
K9202-21105
Unavailable
92025
SHIM,T=1.30
K9202-51214
Unavailable
92025A
SHIM,T=1.32
K9202-51215
Unavailable
92025B
SHIM,T=1.34
K9202-51216
Unavailable
92025C
SHIM,T=1.36
K9202-51217
Unavailable
92025D
SHIM,T=1.38
K9202-51218
Unavailable
92025E
SHIM,T=0.10
K9202-51219
Unavailable
92025F
SHIM,T=0.20
K9202-51220
Unavailable
92025G
SHIM,T=0.30
K9202-51221
Unavailable
92025H
SHIM,T=0.50
K9202-51222
Unavailable
92025I
SHIM,T=0.60
K9202-51223
Unavailable
92025J
SHIM,T=0.70
K9202-51224
Unavailable
92025K
SHIM,T=0.80
K9202-51225
Unavailable
92025L
SHIM,T=0.90
K9202-51226
Unavailable
92025M
SHIM,T=1.00
K9202-51227
Unavailable
92025N
SHIM,T=0.15
K9202-51783
Unavailable
92025O
SHIM,T=0.50
K9202-51784
Unavailable
92025P
SHIM,T=0.60
K9202-51785
Unavailable
92025Q
SHIM,T=0.70
K9202-51786
Unavailable
92025R
SHIM,T=0.80
K9202-51787
Unavailable
92025S
SHIM,T=0.90
K9202-51788
Unavailable
92025T
SHIM,T=1.00
K9202-51789
Unavailable
92025U
SHIM,T=1.20
K9202-51790
Unavailable
92026
SPACER,26.2X36X2
K9202-61085
Unavailable
92033
RING-SNAP,52MM
K9203-31074
Unavailable
92046
BEARING-NEEDLE,RNA4904RD
K9204-61168
Unavailable
92046A
BEARING-NEEDLE,38NQ5020WD
K9204-61169
Unavailable
92049
SEAL-OIL,S-35477HS
K9204-91025
Unavailable
92049A
SEAL-OIL,SC32487
K9204-91033
Unavailable
92049B
SEAL-OIL,MHSA83X100X9XRT
K9204-91280
Unavailable
92055A
RING-O,57.6X2.4
K9205-51038
Unavailable
92055B
RING-O,154X3
K9205-51165
Unavailable
92055C
RING-O,32.7X3.5
K9205-51646
Unavailable
92066
PLUG
K9206-61110
Unavailable
92081
SPRING
K9208-11183
Unavailable
92116
BEARING-ROLLER,4T32005X
K9211-61004
Unavailable
92145
SPRING,BOOT
K9214-51162
Unavailable
92150
BOLT,5X10
K9215-01806
Unavailable
92153
BOLT,FLANGED,8X12
K9215-31277
Unavailable
92180
SHIM,T=0.15
K9218-00009
Unavailable
92180A
SHIM,T=0.50
K9218-00010
Unavailable
92180B
SHIM,T=0.60
K9218-00011
Unavailable
92180C
SHIM,T=0.70
K9218-00012
Unavailable
92180D
SHIM,T=0.80
K9218-00013
Unavailable
92180E
SHIM,T=0.90
K9218-00014
Unavailable
92180F
SHIM,T=1.00
K9218-00015
Unavailable
92180G
SHIM,T=1.20
K9218-00016
Unavailable
92210
NUT,CAP,10MM
K9221-01121
Unavailable
130
BOLT-FLANGED
KK130-Y0825
Unavailable
175
BOLT-STUD-FINE,10X35
KK175-G1035
Unavailable
480
CIRCLIP-TYPE-C,26MM
KK480-J2600
Unavailable
610
ROLLER,4X6
KK610-A0406
Unavailable
