2005 Suzuki VZ1600 Cylinder/piston Diagram

← All diagrams

Find the part on the Cylinder/piston diagram for your 2005 Suzuki VZ1600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

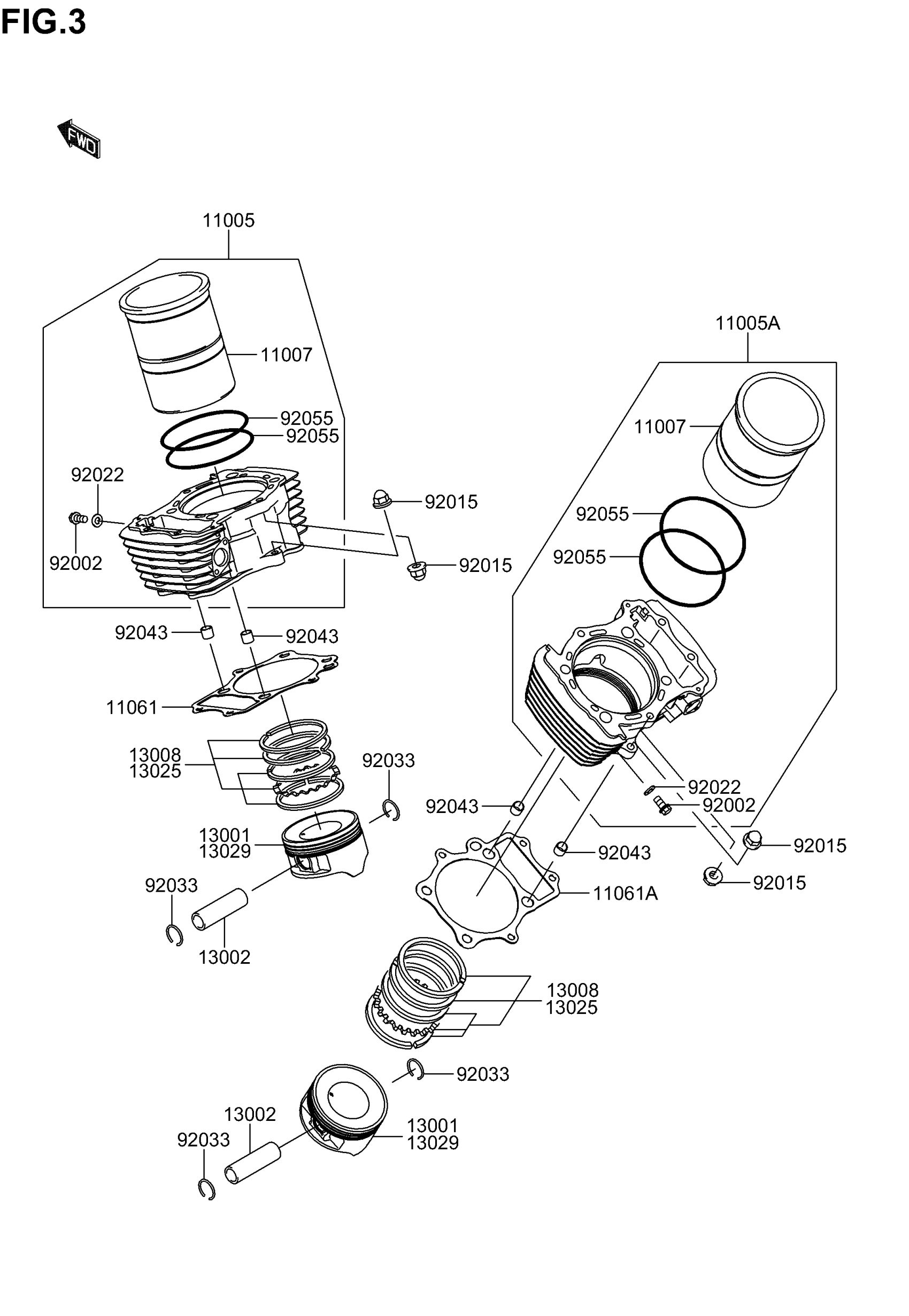

2005 Suzuki VZ1600 Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE,FR

K1100-50019

1
Out of stock

11005A

CYLINDER-ENGINE,RR

K1100-50020

1
Out of stock

11007

LINER-CYLINDER

K1100-71176

2
Out of stock

11061

GASKET,CYLINDER BASE,FR

K1106-11083

1
Out of stock

11061A

GASKET,CYLINDER BASE,RR

K1106-11084

1
Out of stock

13001

PISTON-ENGINE,STD

K1300-10054

2
Out of stock

13002

PIN-PISTON

K1300-21107

2
Out of stock

13008

RING-SET-PISTON,STD

K1300-81218

2
Out of stock

13025

RING-SET-PISTON L,O/S 0.50 | OPTION

K1302-50004

1
Out of stock

13029

PISTON-ENGINE L,O/S 0.50 | OPTION

K1302-90014

1
Out of stock

92002

BOLT,6X12

K9200-21569

2
Out of stock

92015

NUT,CAP,8MM

K9201-51370

8
Out of stock

92022

WASHER,6.1X12X1

KK920-22077

2
Out of stock

92033

RING-SNAP

K9203-31226

4
Out of stock

92043

PIN,13X16X14

K9204-31608

4
Out of stock

92055

RING-O,110.5X2.5

K9205-51371

4
Out of stock
