2005 Suzuki VZ1600 Cylinder Head Diagram

← All diagrams

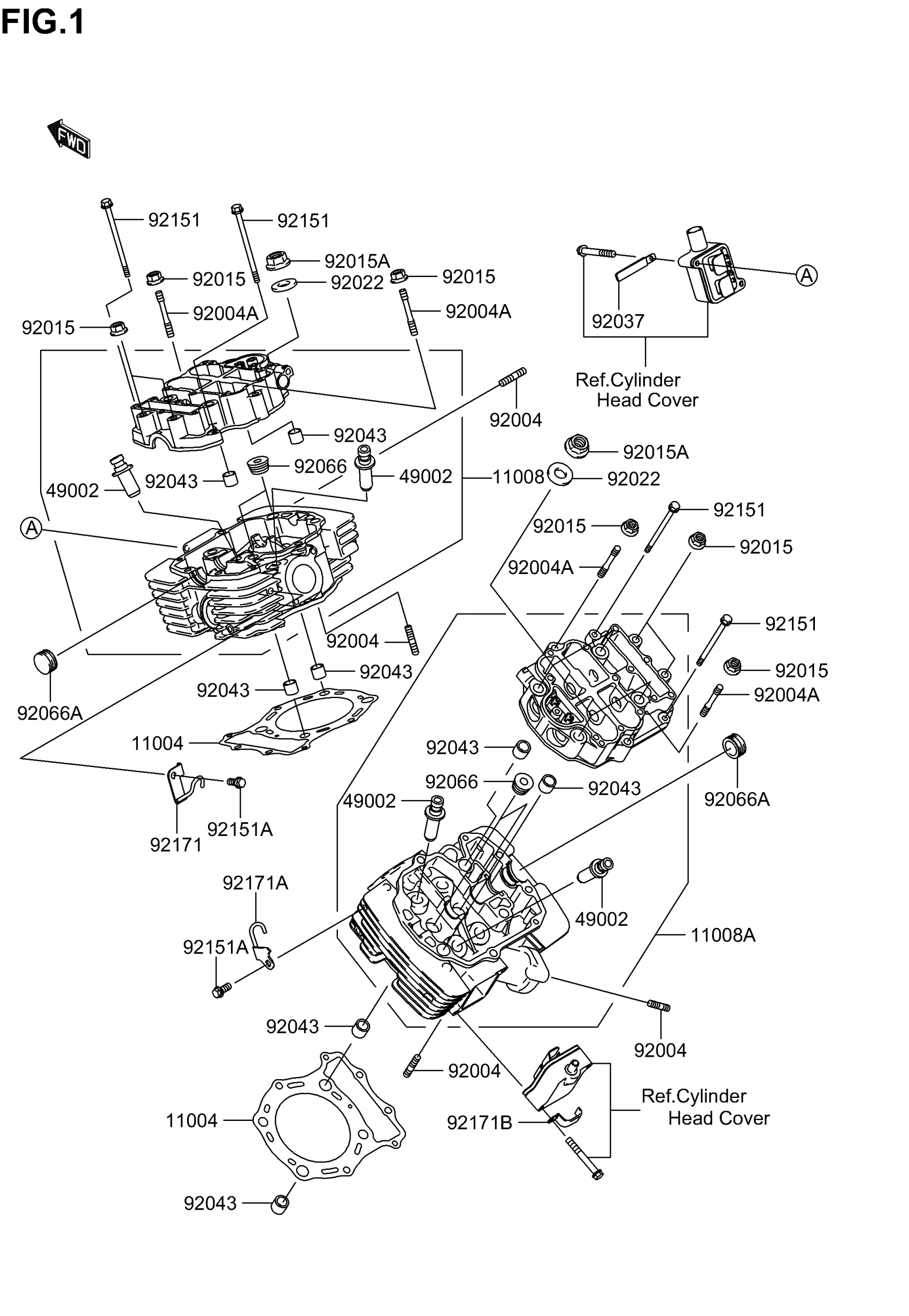

Find the part on the Cylinder Head diagram for your 2005 Suzuki VZ1600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki VZ1600 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

K1100-41334

2
Out of stock

11008

HEAD-COMP-CYLINDER,FR

K1100-80011

1
Out of stock

11008A

HEAD-COMP-CYLINDER,RR

K1100-80012

1
Out of stock

49002

GUIDE-VALVE

K4900-21088

1
Out of stock

92004

STUD,8X25

K9200-41214

8
Out of stock

92004A

STUD,8X46.5

K9200-41224

4
Out of stock

92015

NUT,FLANGED,8MM

K9201-51406

8
Out of stock

92015A

NUT,12MM

K9201-51991

8
Out of stock

92022

WASHER,12.3X25X3.2

K9202-21862

8
Out of stock

92037

CLAMP,L=45

K9203-71539

1
Out of stock

92043

PIN,13X16X14

K9204-31608

8
Out of stock

92066

PLUG,PT1/2X12.5

K9206-60002

4
Out of stock

92066A

PLUG

K9206-60031

2
Out of stock

92151

BOLT,6X115

K9215-11058

4
Out of stock

92151A

BOLT,6X14 This part replaces K9215-11423.

K132B-C0614

2
Out of stock

92171

CLAMP

K9217-10004

1
Out of stock

92171A

CLAMP,HEAD,RR

K9217-10005

1
Out of stock

92171B

CLAMP

K9217-10011

1
Out of stock
